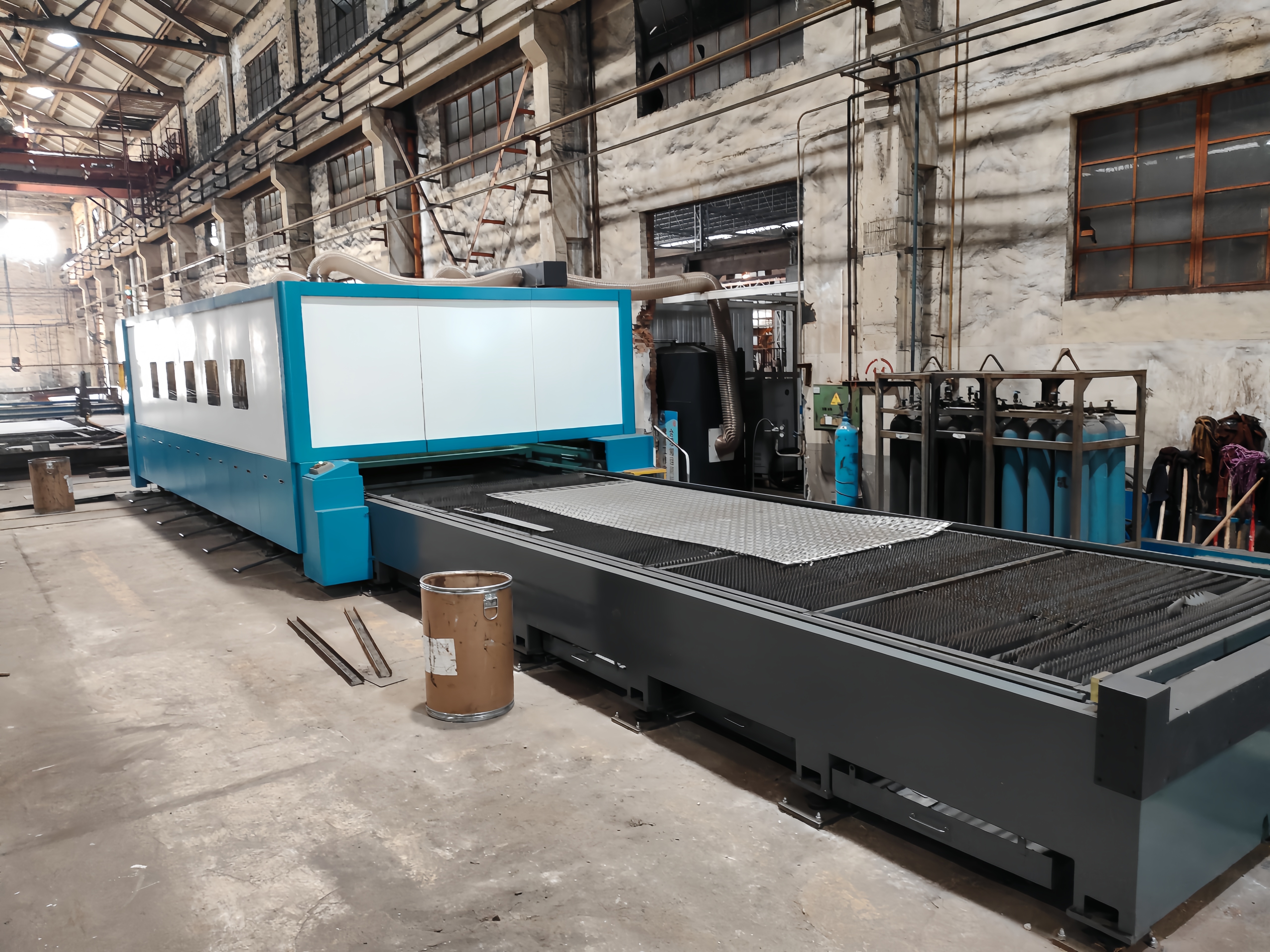

Fully Enclosed High-Power Fiber Laser Cutting Machine with Exchange Table 3KW-20KW

The JG Seires Fully Enclosed Fiber Laser Cutting Machine with Exchange Table represents the pinnacle of modern industrial cutting technology. Designed for demanding workshops and high-volume production environments, it seamlessly integrates a high-performance IPG/Raycus fiber laser source (from 3KW to 20KW) with a robust, fully enclosed safety enclosure and an automatic dual-pallet exchange system. This machine is engineered to deliver unparalleled cutting speed, exceptional precision, and 24/7 operational reliability for a vast range of materials and thicknesses. It is the ultimate solution for fabricators seeking to maximize throughput, minimize downtime, and achieve a superior return on investment.

Core Design Concept: Productivity Without Compromise. The fully enclosed structure ensures maximum safety and compliance with international standards, while the exchange table system allows for continuous, non-stop cutting—material loading and unloading occur on one pallet while the other is actively cutting.

Machine Configuration & Key Components

Our machine is built with premium, industry-leading components to ensure long-term stability and performance.

• Laser System: Equipped with a high-brightness, high-efficiency IPG Photonics or Raycus fiber laser source (3KW-20KW selectable), known for exceptional beam quality and energy efficiency.

• Cutting Head & Sensors: Features a Precitec or WT` high-performance cutting head with automatic capacitive height following and collision protection. Includes automatic focus control.

• CNC Control System: Powered by the intuitive CYPCUT or Beckhoff CNC system, offering user-friendly operation, advanced process database, and seamless compatibility with nesting software.

• Mechanical Structure: Welded from heavy-duty steel with advanced stress-relief annealing. Utilizes high-precision German-imported gear rack and pinion for X/Y axes and Taiwanese HIWIN linear guides for the Z-axis, ensuring rigidity and accuracy.
• Exchange Table System: Dual heavy-duty carbon steel pallets with precision-located pins. Driven by a high-torque servo motor, enabling fast and reliable pallet swaps in under 15 seconds.

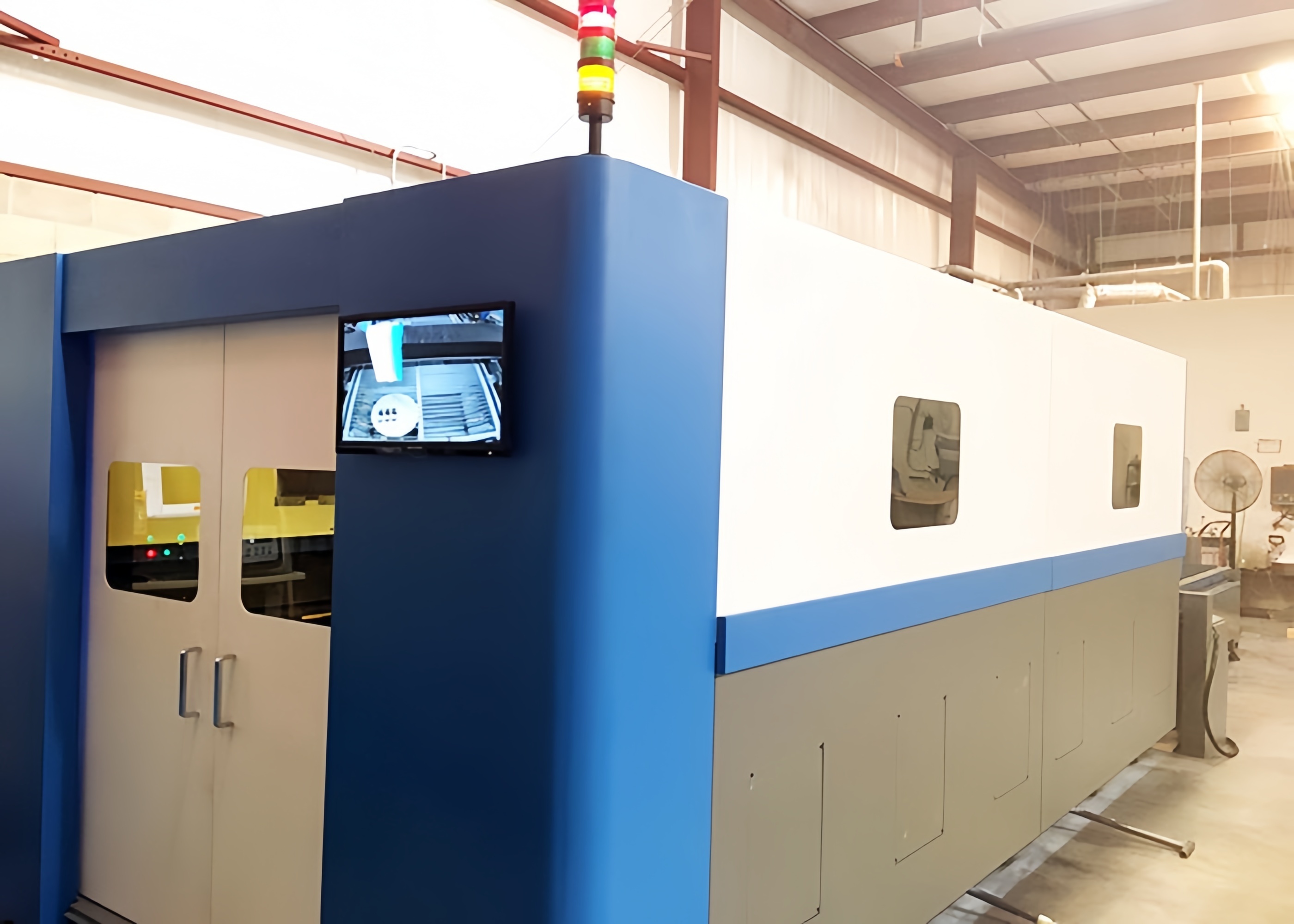

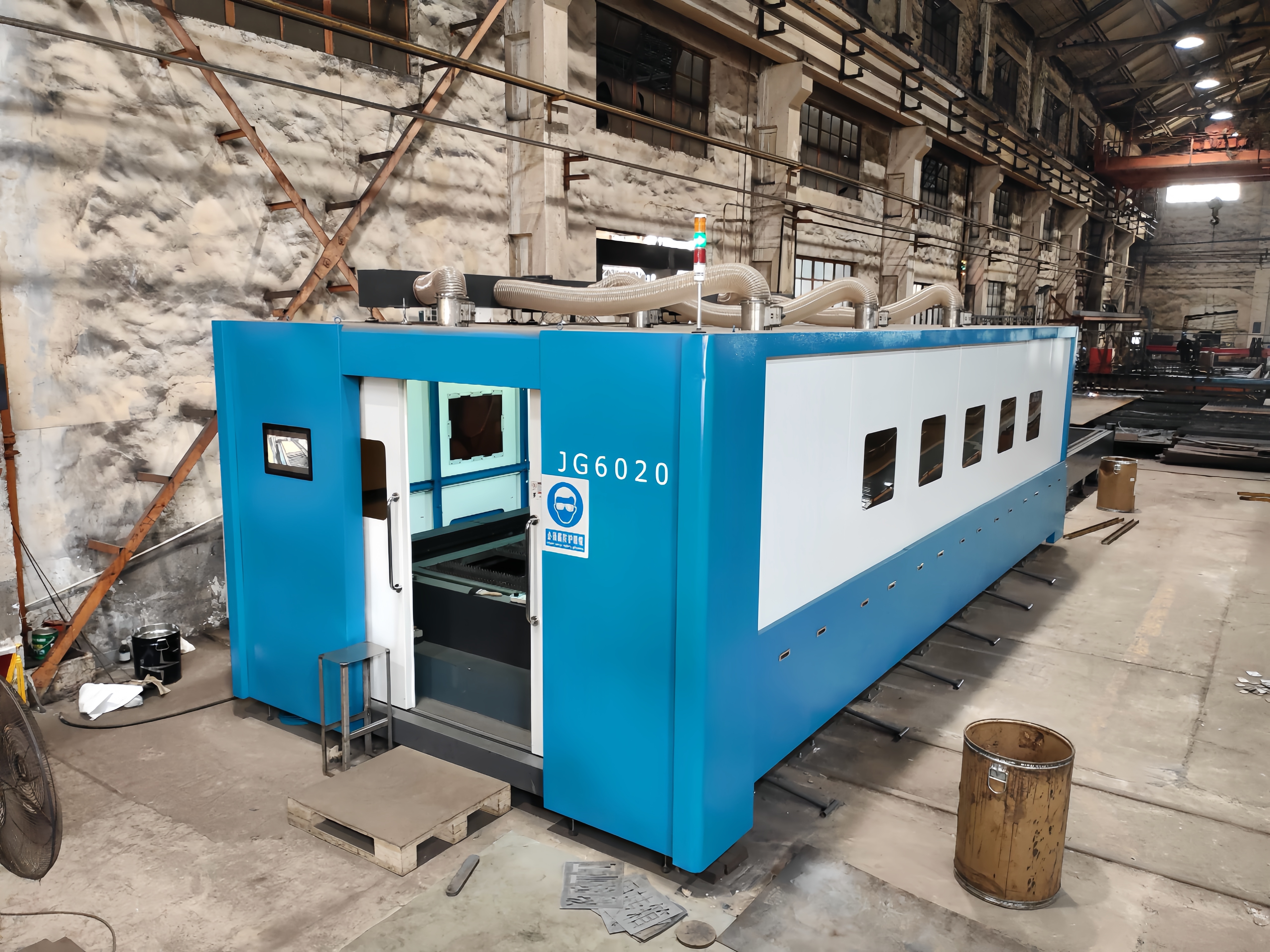

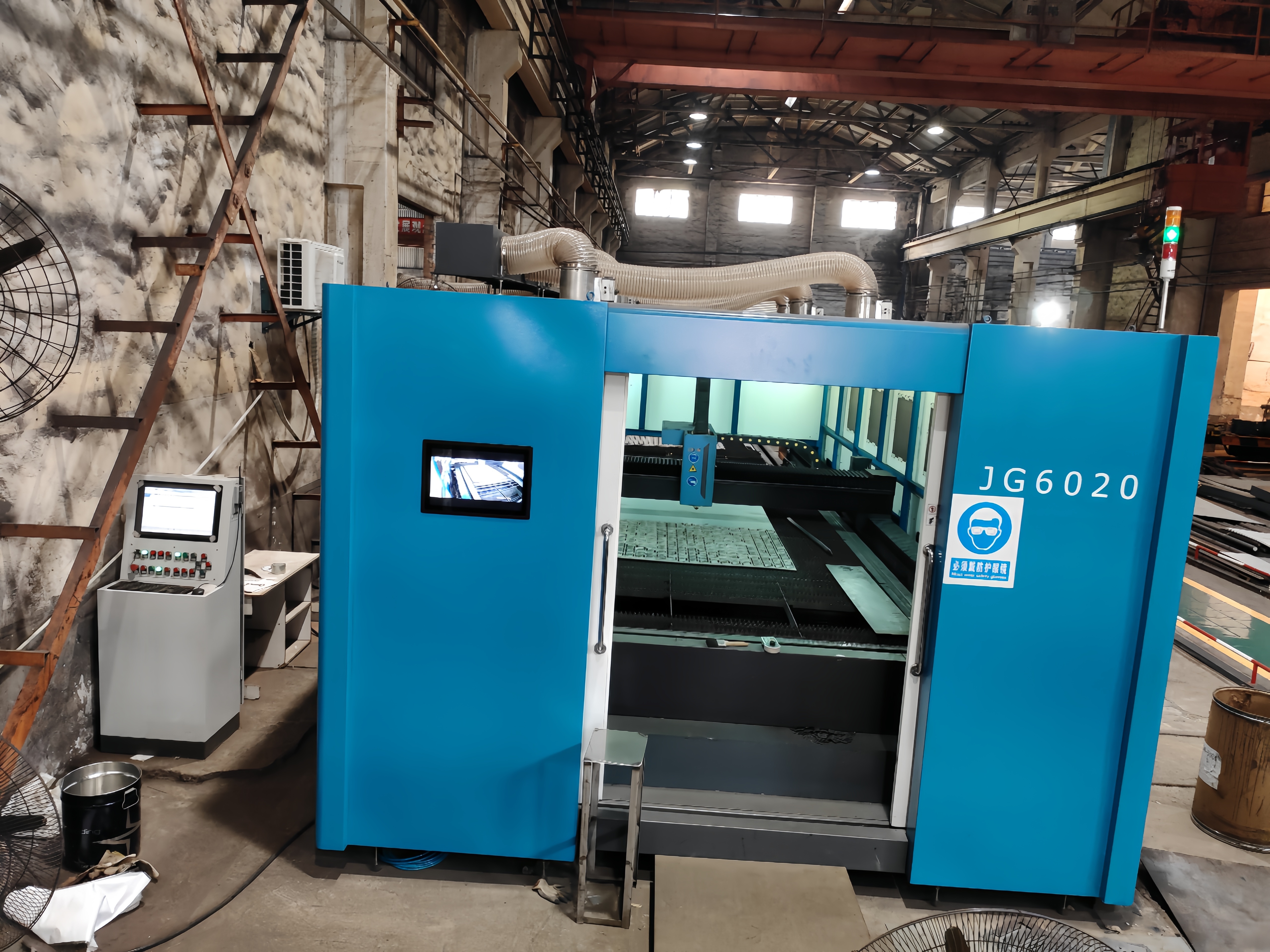

• Fully Enclosed Cabin: Comprises sturdy metal panels and safety laminated glass viewing windows. Integrated smoke extraction system and protective laser shielding ensure a safe, clean working environment compliant with CE safety standards.

Standout Features & Advantages

1. Unmatched Productivity with Zero Downtime

The core automatic pallet changer (APC) system is a game-changer. It eliminates waiting time for material handling, allowing your machine to cut continuously. This can increase actual productive time by up to 90%, making it ideal for lights-out manufacturing.

2. Superior Cutting Performance & Quality

The high-power laser source, combined with an ultra-stable mechanical platform, delivers:

• High-Speed Cutting: Drastically reduced cycle times on thin to medium-thick plates.
• Exceptional Edge Quality: Smooth, dross-free cuts with minimal taper, often eliminating the need for secondary finishing.
• Precision & Consistency: Maintains micron-level accuracy part after part, thanks to the rigid gantry structure and professional CNC.

3. Maximum Safety & Operational Comfort

The fully enclosed protective cabin contains all laser radiation, fumes, and noise, creating a safer shop floor. The integrated fume extractor keeps the optics clean and the air clear. Operators can safely observe the process through the large viewing window.

4. Robustness for Heavy-Duty Operation

Engineered for 24/7 operation in industrial settings. The heavy welded frame, industrial-grade components, and reliable exchange mechanism are built to withstand the rigors of high-volume production year after year.

5. Intelligent Operation & Connectivity

The advanced CNC system features a rich cutting parameter database for various materials. Supports Ethernet connectivity for remote monitoring, file transfer, and integration into smart factory (Industry 4.0) environments.

Main Components:

Detailed Machine Specifications (Technical Parameters Table)

Comprehensive Cutting Capabilities (Cutting Parameters Reference Table)

Note: The following parameters are for reference with Nitrogen (N2) cutting for stainless steel and Oxygen (O2) for carbon steel. Optimal parameters depend on material grade, surface condition, and desired edge quality.

This versatile machine is a cornerstone asset for a wide array of manufacturing sectors:

• Heavy Machinery & Construction: Thick plates for chassis, frames, booms, structural components.
• Agricultural Equipment: Cutter blades, housings, protective covers.
• Automotive & Trucking: Chassis parts, brackets, suspension components.
• Precision Engineering: Complex parts for machinery, robots, and automation systems.
• Shipbuilding & Offshore: Thick steel plates for hulls, decks, and structural sections.
• Energy Sector: Components for wind towers, power generation, and transmission equipment.
• General Fabrication & Job Shops: High-mix, high-volume contract manufacturing requiring flexibility and speed.

Why Choose Our Laser Cutting Machine?

Investing in our Fully Enclosed Fiber Laser Cutter with Exchange Table means investing in the future of your fabrication capability. You gain not just a machine, but a complete productivity solution that offers:

• Highest Return on Investment (ROI) through continuous operation and reduced labor costs.
• Future-Proof Technology scalable from 3KW to 20KW to meet evolving business needs.
• Global Support & Service with comprehensive training, warranty, and spare parts availability.
• Competitive Edge through faster turnaround times and superior part quality for your customers.

Cutting Samples:

Questions:

1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m², with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
