Lamp Door Laser Tube Cutting Machine , 50 Hz Custom Color CNC Pipe Cutter
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC1-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description

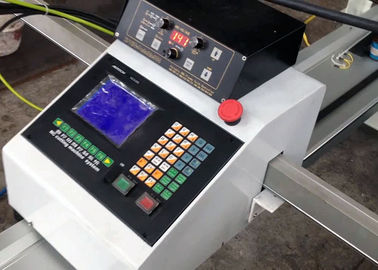

CNC System: Adtech HC4300 Plasma Source: Hypertherm, Victor, Etc.
Height Controller: Hongyuda Nesting Software: FastCAM, InteGNPS, Etc.
Color: White, Red Or Customized Warranty: 1 Year
High Light:

cut to length line machine

,

light pole production line





CNC Light Pole Lamp Door Plasma Cutting Machine





This machine can cut both steel plate for the base plate of the pole and electric door of the pole.





Application Scope and Material:





1) The machine is mainly used for a variety of pipe system and the end of the hot cutting.


2) Applicable workpiece material: low carbon steel, copper and nickel pipe stainless steel pipe with plasma cutting.


3) Also can cut steel plate (cut the base plate of the pole) (CNC flame/plasma cutting machine), complete the implementation of the flame, plasma steel plate cutting, pole cutting machine, multi-usage.



4) It is suitable for conical, octagonal light pole door CNC cutting, Also it can cut round pipe. The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by PC.

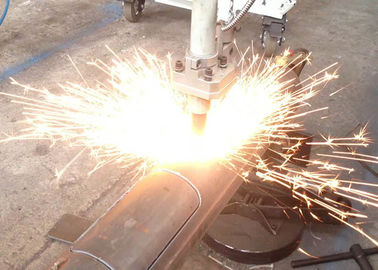

5) The cutting power is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is better than flame cutting.





Machine working conditions:



Temperature: - 5-40 ℃;Humidity of 90% or less;50 hz power: 220 v + 10%





Technical Parameters:



Code ITEM DATAS
1 Tube diameter Φ=50~350mm
2 Flame cutting wall thickness δ1=6~50mm
3 Max.pole length . L1=14000mm (can be extended)
4 Plasma cutting thickness 1-8mm
5 Tube weight 800KG bellow
6 Moving speed. V0=10~3000 mm/min
7 Cutting plate size 1000mmX3000mm

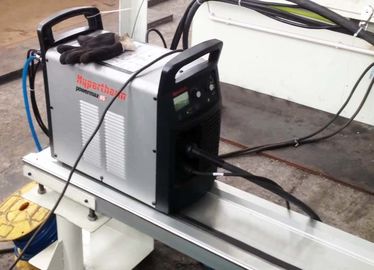

8 Plasma power USA.Hypertherm. Powermax.65





Movement axis:



Movement axis Cutting machine axis
X axis: Pole rotate
Y axis: Cutting torch move on the pole line direction.
Z axis: Cutting torch lift up and down.
Cutting length Max. 500mm





Cutting machine steel pipe transmission form and cutting way:


1) Cutting machine steel pipe transmission form: chuck type structure.


2) Cutting way: a plasma cutting.


3) Raise way: automatic electric way.

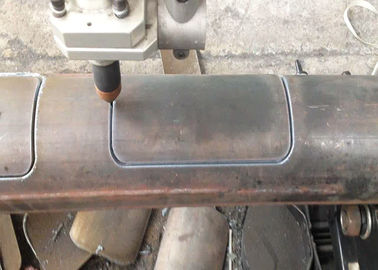

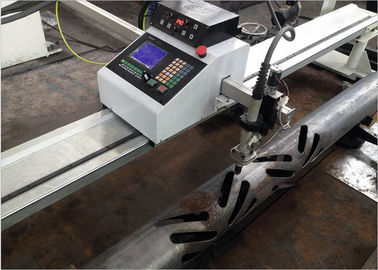

Cutting Samples:

Lamp Door Laser Tube Cutting Machine , 50 Hz Custom Color CNC Pipe Cutter 0
