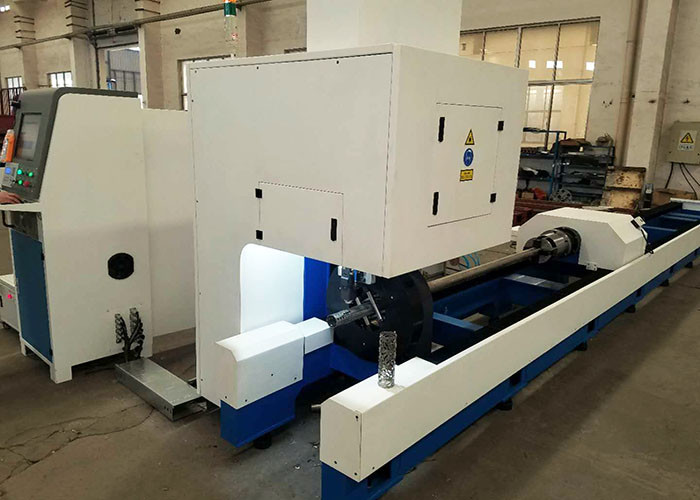

500W~ 4KW Automatic CNC Pipe Cutting Machine High Cutting Speed 1070nm Wave

500W~ 4KW Automatic CNC Pipe Cutting Machine High Cutting Speed 1070nm Wave

  • 500W~ 4KW Automatic CNC Pipe Cutting Machine High Cutting Speed 1070nm Wave
500W~ 4KW Automatic CNC Pipe Cutting Machine High Cutting Speed 1070nm Wave
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Effective Cutting Length: 3000mm Or 6000mm Or 12000mm Laser Type: Fiber Laser Cutting
Cutting Material: Metal, Steel, Aluminum, Etc. Cutting Thickness: Depends On Laser Source
Laser Power: 500W~4KW Cooling Mode: Water Cooling
High Light:

pipe plasma cutting machine

,

plasma tube cutting machine



Automatic Stainless Steel Metal Fiber Laser Pipe Tube Cutting Machine



Product Introduction:



As a China professional manufacturer of Fiber Laser Pipe Tube Cutting Machine with rich experiences, we could supply you with the best quality, affordable price and perfect after-sales service.



FL series Fiber Laser Pipe Tube Cutting Machine specially used for cutting 0.5-14mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel, 0.5-3mmaluminum, 0.5-2mm brass and red copper and other kinds of thin metal sheets (The thickness and materials depend on different fiber laser source).





Advantages:



1). Great Performance: with excellent path quality, Identical cutting quality on any cutting point is realized through fiber transmission.


2). High Cutting Speed: The rapid cutting speed is two times higher than that of CO2 laser machine. Its use-cost is very low.



3). Low Cost: Save energy and Environmentally friendly because of low gas Consumption: Laser cutting does not make any gas because of the specific cutting technology on steel plate. power consumption is reduced by 20%-30% compared with CO2 laser.



4). High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have 3 times photoelectric conversion efficiency.



5). Stable Running: adopt top world import fiber laser generator, stable performance, key parts can reach 100,000 hours; Machine bed treated by 650℃ heat treatment ensure its stability and smoothness.



6). Maintenance-free: The machine is maintenance-free, there is almost no any parts need to change after long term use.



7). Easy operations: fiber line transmission, no adjustment of optical path.





Features:


1. The whole structure is welded, stable performance, to ensure the stable operation.



2. With 650 degree high temperature heat treatment working bed and a large milling machine high precision machining to ensure the stability and smoothness of the working bed.



3. Operation system, easy control system, easy to learn and operating.



4. High quality, high efficiency fiber laser generator, low processing cost, saving help energy conservation and environmental protection.



5. Automatic chuck the front and bottom, easy to feeding, designed for saving material.



6. Equipped with servo system from Japan, gear rack movement structure using, to ensure the high speed, high precision, high reliability.



7. New beautiful designed, fully enclosed protective cover.





>>Application Material:



Fiber Laser Pipe / Tube Cutting Equipment is mainly used for cutting carbon steel, Stainless Steel, Mild Steel Plate, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Pickling Board, Aluminum Zinc plate, Aluminum Alloy, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.





>>Applicable Industry:



Fiber Laser Cutting Machines are widely used in manufacturing Sports Equipment, Aviation & Spaceflight parts, Ships, Automobile, Elevator, Subway parts, Electronics, Electrical Appliances, Precision Components, Machinery, Household appliances, Adornment, Advertising, etc. various high precision components processing industries.





Technical Parameters:



Laser Power 500W 700W 1000W
Laser Wave 1070nm 1070nm 1070nm
Pipe Cutting Length ≤3000mm ≤3000mm ≤3000mm
Round Pipe Diameter 20-200mm 20-200mm 20-200mm
Square Tube Side less than 160mm less than 160mm less than 160mm
Pipe Thickness 6mm 8mm 10mm
Laser Line Width 0.15mm 0.15mm 0.15mm
Location Precision ±0.03mm/m ±0.03mm/m ±0.03mm/m
Re-location Precision ±0.02mm ±0.02mm ±0.02mm
Power 380V/50Hz 380V/50Hz 380V/50Hz
Cooling Water cooling Water cooling Water cooling





Cutting Samples:



500W~ 4KW Automatic CNC Pipe Cutting Machine High Cutting Speed 1070nm Wave 0



Cutting Parameters:



500W~ 4KW Automatic CNC Pipe Cutting Machine High Cutting Speed 1070nm Wave 1
