4000X8000mm Strip Gas Cutting Machine for H Beam Production line (9+1)

4000X8000mm Strip Gas Cutting Machine for H Beam Production line (9+1)

  • 4000X8000mm Strip Gas Cutting Machine  for H Beam Production line (9+1)
4000X8000mm Strip Gas Cutting Machine  for H Beam Production line (9+1)
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: GDZ-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V 3-phase 50Hz Or Customized Cutting Torch: 9+1
Motor: Step Motors Driven Mode: Single Driven
Color: Red+black, Blue+yellow Or Customized Warranty: 1 Year
High Light:

h beam assembly machine


h beam welding line

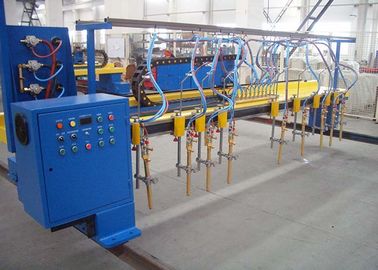

GDZ Series Gantry type Vertical Strip Gas Cutting Machine for H beam


With several flame torches equipped, strips flame cutting machine is characterized of stable running and high effi ciency, can be widely applied for strips cutting of carbon steel, manganese steel and other materials. 4000X8000mm Strip Gas Cutting Machine  for H Beam Production line (9+1) 0




This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petrochemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.


Technical Parameters:


Model GDZ-3000 GDZ-4000 GDZ-5000
Gauge (mm) 3000 4000 5000
Effective cutting width (mm) 230-2200 230-3200 230-4200
Rail Length (mm) 12000 / 14000 12000 / 14000 12000 / 14000
Effective cutting length (mm) 10000 / 12000 10000 / 12000 10000 / 12000
Horizontal cutting torch 1 1 1
Strip cutting torch 9 9 9
Cutting thickness (mm) 6~100 6~100 6~100
No-duty running speed 4000 mm/mm
Drive mode Single / double Single / double Double
Cutting precision ±0.5mm/mm
Repeat ability precision ±0.5mm/mm





1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.


2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.


3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.


4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.


6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the kind of metal plate and the thickness?
• What’s the size of your workpiece?

These information is helpful for us to choose suitable equipment solution and price quickly.
