CNC5-4000X12000 Gantry Type Strip Flame Cutting Machine for H Beam Production line

1 set
MOQ
Negotiable
Price
CNC5-4000X12000 Gantry Type Strip Flame Cutting Machine for H Beam Production line
Features Gallery Product Description Request A Quote
Features
Specifications
CNC System: Hypertherm, Fangling, Etc.
Height Controller: Hongyuda, Hypertherm, Etc.
Nesting Software: FastCAM, InteGNPS, Etc.
Cutting Torch: 9+1
Motor: Panasonic
Reducer: Shimpo, Neugart
Color: Red+black, Blue+yellow Or Customized
Warranty: 1 Year
Highlight:

h beam assembly machine

,

h beam welding line
Basic Infomation
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC5-4000
Payment & Shipping Terms
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Product Description



CNC Multi-head Vertical Strip Flame Cutting Machine



Product description:

  • This machine adopts a planer structure and the beam is of a grid structure,this machine widly used in lath cutting in steel construction industries,the machine cuts serveral straight pieces at the same time;
  • The front optional torch cuts geometric designs,The back torch cuts straight piece for longitudinal direction.
  • According to user need to configure the number of cutting torches,longitudinal and transverse cutting machine.



Technical Parameters:



Model CNC5-3000 CNC5-4000 CNC5-5000
Gauge (mm) 3000 4000 5000
Effective cutting width (mm) 230-2200 230-3200 230-4200
Rail Length (mm) 12000 / 14000 12000 / 14000 12000 / 14000
Effective cutting length (mm) 10000 / 12000 10000 / 12000 10000 / 12000
CNC cutting torch 2 2 2
Strip cutting torch 9 9 9
Cutting thickness (mm) 6~100 6~100 6~100
No-duty running speed 4000 mm/mm
Drive mode Single / double Single / double Double
Cutting precision ±0.5mm/mm
Repeat ability precision ±0.5mm/mm























































CNC5-4000X12000 Gantry Type Strip Flame Cutting Machine for H Beam Production line 0



Application:

This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petrochemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

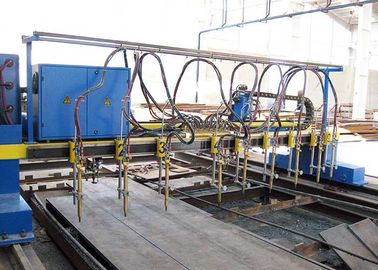

Machine Photo:

CNC5-4000X12000 Gantry Type Strip Flame Cutting Machine for H Beam Production line 1



FAQ:


1.Are you factory or foreign trade company?

We are industry and trade integration.

2.What shall we do if don't know how to operate your machine after bought from you?

We have detailed installation and operating instructions attached,it is very simple. We have telephone and email support at 24 hours a day.

3.What are your payment terms?

We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement.
