CNC5-4000X14000 Gantry Type Multi-head Strip Flame and Plasma Cutting Machine

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC5-4000

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc h beam drilling machine

,

h beam assembly machine

CNC System:
Hypertherm, Fangling, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Nesting Software:
FastCAM, InteGNPS, Etc.
Cutting Torch:
9+1
Motor:
Panasonic
Reducer:
Shimpo, Neugart
Color:
Red+black, Blue+yellow Or Customized
Warranty:
1 Year
CNC System:
Hypertherm, Fangling, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Nesting Software:
FastCAM, InteGNPS, Etc.
Cutting Torch:
9+1
Motor:
Panasonic
Reducer:
Shimpo, Neugart
Color:
Red+black, Blue+yellow Or Customized
Warranty:
1 Year
CNC5-4000X14000 Gantry Type Multi-head Strip Flame and Plasma Cutting Machine



CNC Multi-head Vertical Strip Flame Cutting Machine



Product description:



With economical digital control function, the CNC flame/plasma cutting machine can applied in lot size steel sheet straight cutting, as well as irregular geometric shape cutting. The main frame is bent, welded, annealed to remove stress, so is stable and not easily deformed. The servo motor, reducer, pressure release valve, air pipe, magnetic valve as well as cutting guns used are all world famous brand to ensure stable quality.



Specification:



The cutting machine uses imported AC motor, and driven with imported bevel gear reducer. With precision gear and rack move, to ensure stable function. Air cutting speed is adjusted by frequency transformer. The air source control box on the main engine can adjust air pressure from every tunnel easily. All the pressure adjusting valve and main air pipe are original imported. Pipe and wire on the broadwise cutting gun all use imported supporting chain, safe and neat.



Technical Parameters:



Model CNC5-3000 CNC5-4000 CNC5-5000
Gauge (mm) 3000 4000 5000
Effective cutting width (mm) 230-2200 230-3200 230-4200
Rail Length (mm) 12000 / 14000 12000 / 14000 12000 / 14000
Effective cutting length (mm) 10000 / 12000 10000 / 12000 10000 / 12000
CNC cutting torch 2 2 2
Strip cutting torch 9 9 9
Cutting thickness (mm) 6~100 6~100 6~100
No-duty running speed 4000 mm/mm
Drive mode Single / double Single / double Double
Cutting precision ±0.5mm/mm
Repeat ability precision ±0.5mm/mm























































Application:

This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petrochemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.



Machine Photo:

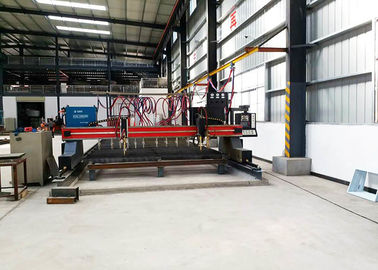

CNC5-4000X14000 Gantry Type Multi-head Strip Flame and Plasma Cutting Machine 0





Supply Scope:


1, Frame unit: Beam, pipe, broadwise beam and longitude and broadwise reducer and etc.


2, Track unit: Guide and accessories. The guide size is 14m*2PCS.


3, Cutting gun unit: Linear single cutting gun*10PCS and accessories.


4, Electric control system: Electric control cabinet, longitude and broadwise motors and accessories.


5, Gas source unit: Main air rubber pipe, suspending sliding vehicle and etc.


6, Spare parts: 1 set

Documents with Goods:


1, Instructions including map of electricity and gas.


2, Certificate


3, Packing list


4, On site installation drawing for laying foundations.
