|CNC System:||Hypertherm, Fangling, Etc.||Height Controller:||Hongyuda, Hypertherm, Etc.|
|Nesting Software:||FastCAM, InteGNPS, Etc.||Cutting Torch:||9+1|
|Color:||Red+black, Blue+yellow Or Customized||Warranty:||1 Year|
cnc h beam drilling machine,
h beam assembly machine

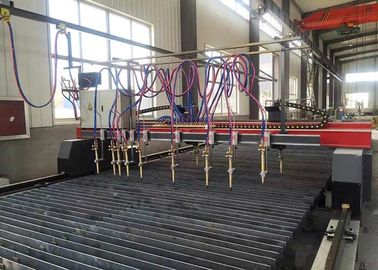

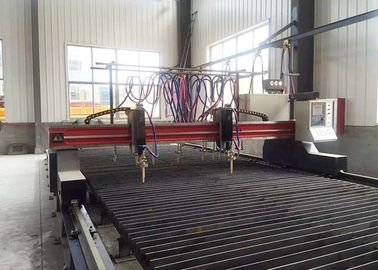

CNC5 Series Gantry Type Multi-head Vertical Strip Cutting Machine for H beam
This series of cnc cutting machine is a high perfomance equipment, which uses single or double drive and combines computer control,precision mwchanism and oxygen cutting.
1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.
2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.
3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft, therefore, the stability and accuracy during the whole moving can be assured.
4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track have precision machining and accurate grinding racks are installed outside the guide way.
5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the longitudinal straightness and parallelism of rail.
6. Automatic igniter and height controller of torch can be chosen according to customer’s requirement, with convenient operation.
7. There’s backfire arrester equipped on the torch which can prevent the safety hazards during cutting process.
|Effective cutting width (mm)||230-2200||230-3200||230-4200|
|Rail Length (mm)||12000 / 14000||12000 / 14000||12000 / 14000|
|Effective cutting length (mm)||10000 / 12000||10000 / 12000||10000 / 12000|
|CNC cutting torch||2||2||2|

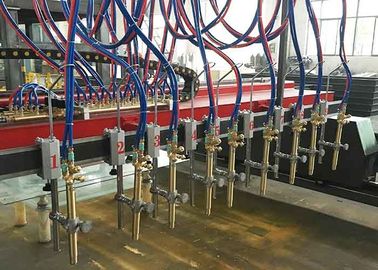

|Strip cutting torch||9||9||9|
|Cutting thickness (mm)||6~100||6~100||6~100|
|No-duty running speed||4000 mm/mm|
|Drive mode||Single / double||Single / double||Double|
|Repeat ability precision||±0.5mm/mm|
