CNC Gantry Type Strip Flame and Plasma Cutting Machine for H Beam Production line 3200X10000mm Cutting Size

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC5-4000

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc h beam drilling machine

,

h beam assembly machine

CNC System:
Hypertherm, Fangling, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Nesting Software:
FastCAM, InteGNPS, Etc.
Cutting Torch:
9+1
Motor:
Panasonic
Reducer:
Shimpo, Neugart
Color:
Red+black, Blue+yellow Or Customized
Warranty:
1 Year
CNC System:
Hypertherm, Fangling, Etc.
Height Controller:
Hongyuda, Hypertherm, Etc.
Nesting Software:
FastCAM, InteGNPS, Etc.
Cutting Torch:
9+1
Motor:
Panasonic
Reducer:
Shimpo, Neugart
Color:
Red+black, Blue+yellow Or Customized
Warranty:
1 Year
CNC Gantry Type Strip Flame and Plasma Cutting Machine for H Beam Production line 3200X10000mm Cutting Size



CNC5 Series Gantry Type Multi-head Vertical Strip Cutting Machine for H beam





Product Description:



This series of cnc cutting machine is a high perfomance equipment, which uses single or double drive and combines computer control,precision mwchanism and oxygen cutting.



1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.



2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.



3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft, therefore, the stability and accuracy during the whole moving can be assured.



4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track have precision machining and accurate grinding racks are installed outside the guide way.



5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the longitudinal straightness and parallelism of rail.



6. Automatic igniter and height controller of torch can be chosen according to customer’s requirement, with convenient operation.



7. There’s backfire arrester equipped on the torch which can prevent the safety hazards during cutting process.



Technical Parameters:





Model CNC5-3000 CNC5-4000 CNC5-5000
Gauge (mm) 3000 4000 5000
Effective cutting width (mm) 230-2200 230-3200 230-4200
Rail Length (mm) 12000 / 14000 12000 / 14000 12000 / 14000
Effective cutting length (mm) 10000 / 12000 10000 / 12000 10000 / 12000
CNC cutting torch 2 2 2
Strip cutting torch 9 9 9
Cutting thickness (mm) 6~100 6~100 6~100
No-duty running speed 4000 mm/mm
Drive mode Single / double Single / double Double
Cutting precision ±0.5mm/mm
Repeat ability precision ±0.5mm/mm

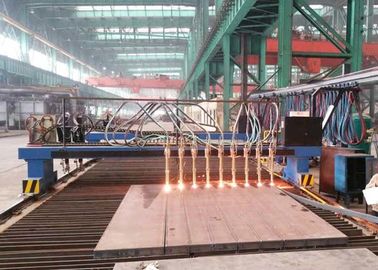

Machine Show:

CNC Gantry Type Strip Flame and Plasma Cutting Machine  for H Beam Production line 3200X10000mm Cutting Size 0



Supply scope:


1, Frame unit: Beam, pipe, broadwise beam and longitude and broadwise reducer and etc.


2, Track unit: Guide and accessories. The guide size is 14m*2PCS.


3, Cutting gun unit: Linear single cutting gun*10PCS and accessories.


4, Electric control system: Electric control cabinet, longitude and broadwise motors and accessories.


5, Gas source unit: Main air rubber pipe, suspending sliding vehicle and etc.


6, Spare parts: 1 set

Documents with goods:


1, Instructions including map of electricity and gas.


2, Certificate


3, Packing list


4, On site installation drawing for laying foundations.

Equipment quality commitment:


A, All the products our company produced are compliant to national and enterprises standard.


B, Our products should meet all the technical requirement and parameters, and ensure the safe and stable function.


C, We will send workers to the working site of the buyer for engaging in and instructing the installation and test, until the equipment is ready for use. We also train the equipment operator and maintenance staff for user.


D, The equipment guarantee period is one year. During this period, for the breakdown not caused by mis-operation by user, we will be responsible for repair and replace.


E, After the guarantee period, our companies will also watching for customer need and maintenance.
