|Place of Origin:||China|
|Certification:||CE, ISO, CCC|
|Minimum Order Quantity:||1 set|
|Packaging Details:||1 x 20' GP|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 sets per month|
|Voltage:||380V 3-phase 50Hz Or Customized||Web Thickness:||6-32mm|
|Web Length:||4000-15000mm||Flange Thickness:||6-40mm|
|Flange Plate Width:||200-800mm||Color:||Red+black, Blue+yellow, Grey+yellow Or Customized|
cnc h beam drilling machine,
h beam welding line

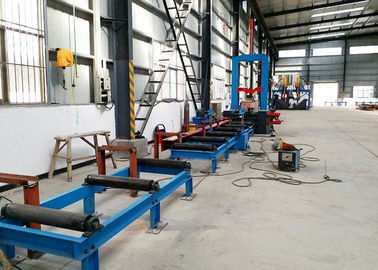

HZL Series Hydraulic Automatic Centering H beam Assembly Machine
1 The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity. All of the operation are centralized on the electric control button panel, with easy and convenient operation and precise positioning.
2 The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the assembly speed can be adjusted between 0.5—6 M/min.
3 The main components of this machine are welded structure parts with large strength and light weight and the key components have been stress relieved, which don’t deform easily.
4 Can be used as eccentric H-beam.
|Web Height (mm)||200-1200||200-1500||200-1800|
|Web Thickness (mm)||6-32|
|Web Length (mm)||4000-15000|
|Flange Plate Width (mm)||200-800|
|Flange Plate Thickness (mm)||6-40|
|Assembling-standing Speed (mm/min)||500-6000|
|Input Roller Way (mm)||2600×3|
|Output Roller Way (mm)||2600×3|
|Draw Bar Box||2 pieces|
|Centering Type||Use hydraulic linkage mechanism to achieve automatic clamp and centering and the middle spot welding|
|Speed Control||AC frequency converter (stepless speed)|
|Input Capacity||9.5 KW (not including welding power supply)|
|Welding System||KN-350 Gas-shielded welding machine,2 sets|
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
