Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HZL-1200
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Voltage: |
380V 3-phase 50Hz Or Customized |
Web Thickness: |
6-32mm |
Web Length: |
4000-15000mm |
Flange Thickness: |
6-40mm |
Flange Plate Width: |
200-800mm |
Color: |
Red+black, Blue+yellow, Grey+yellow Or Customized |
Voltage: |
380V 3-phase 50Hz Or Customized |
Web Thickness: |
6-32mm |
Web Length: |
4000-15000mm |
Flange Thickness: |
6-40mm |
Flange Plate Width: |
200-800mm |
Color: |
Red+black, Blue+yellow, Grey+yellow Or Customized |

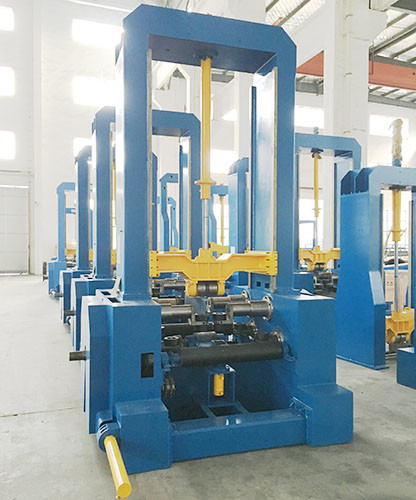

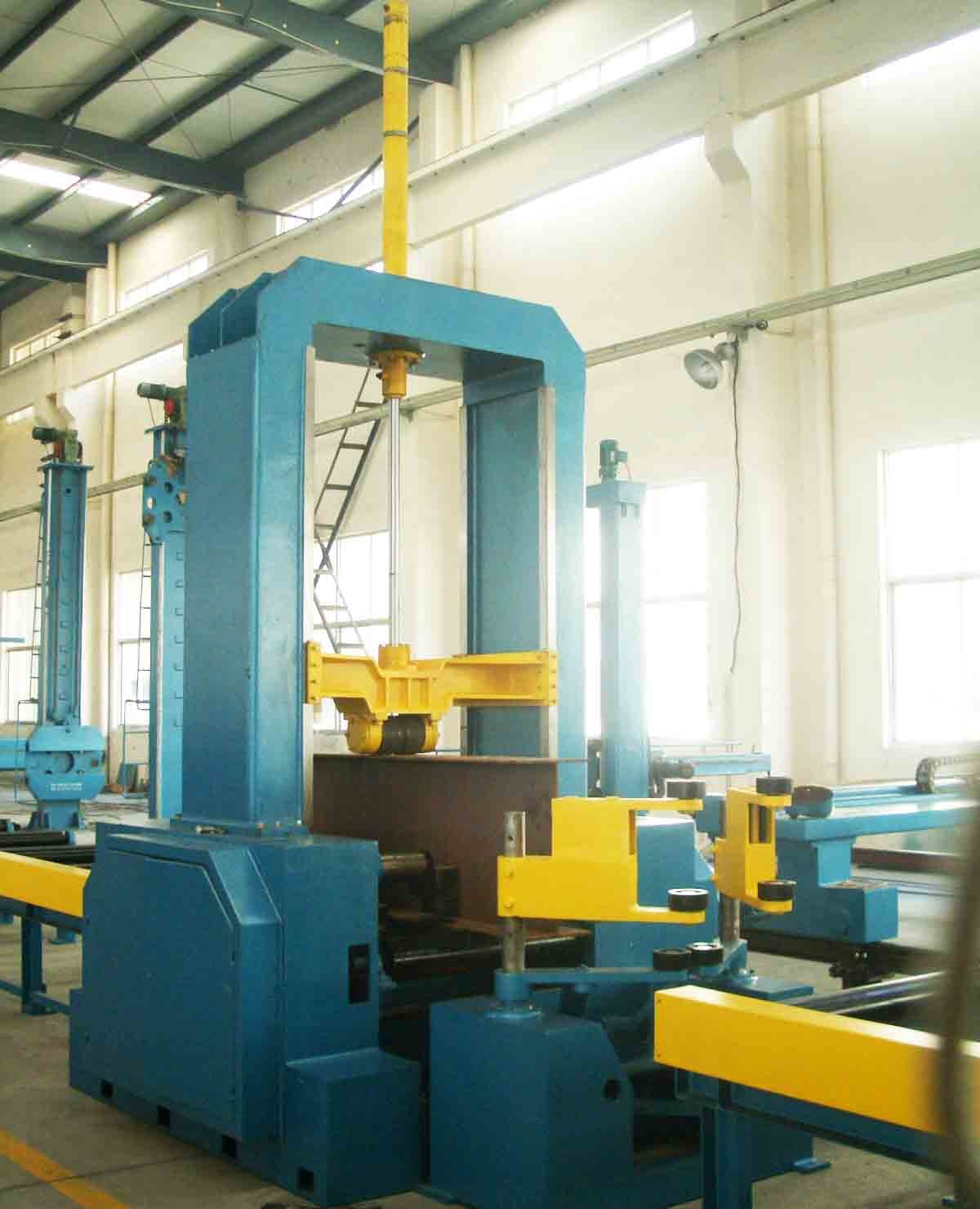

HZL Series Hydraulic Automatic Centering H beam Assembly Machine
This machine adopts PLC programable controller to control the full processes of H-beam clamping, alignment and positioning, spot welding, which has rapid speed and high effeciency.
This machine without voltage protection device, assemlies and automaticly spot welding the variable section H-beam, the welding gun is mechanical and hydraulic tracing way, convienience operation and good quality.
Technical Parameters:
| Model | HZL-1200 | HZL-1500 | HZL-1800 |
| Web Height (mm) | 200-1200 | 200-1500 | 200-1800 |
| Web Thickness (mm) | 6-32 | ||
| Web Length (mm) | 4000-15000 | ||
| Flange Plate Width (mm) | 200-800 | ||
| Flange Plate Thickness (mm) | 6-40 | ||
| Assembling-standing Speed (mm/min) | 500-6000 | ||
| Input Roller Way (mm) | 2600×3 | ||
| Output Roller Way (mm) | 2600×3 | ||
| Draw Bar Box | 2 pieces | ||
| Centering Type | Use hydraulic linkage mechanism to achieve automatic clamp and centering and the middle spot welding | ||
| Speed Control | AC frequency converter (stepless speed) | ||
| Input Capacity | 9.5 KW (not including welding power supply) | ||
| Welding System | KN-350 Gas-shielded welding machine,2 sets | ||
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.

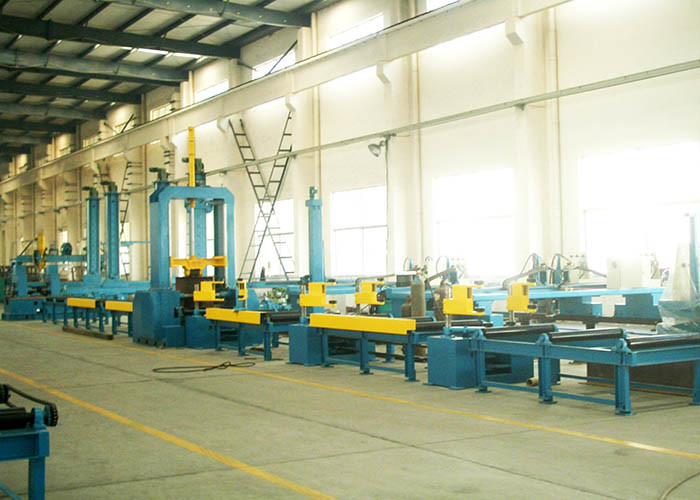

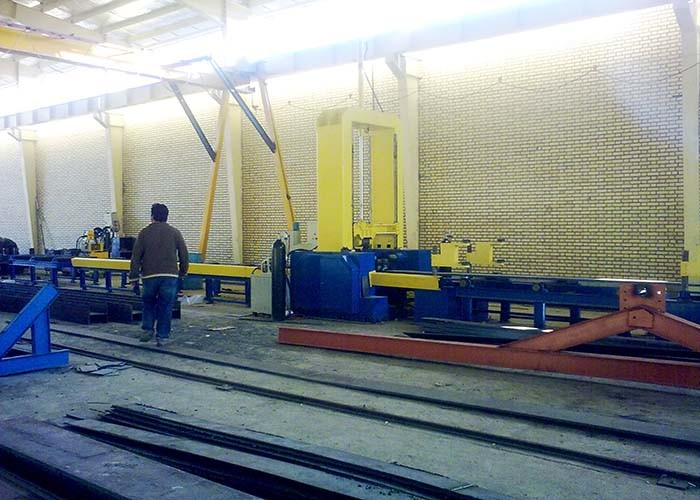

H Beam Line Show:
