Light Duty Automatic H / I Beam Spot Welding Assembly Machine with 350A CO2 Welding Source

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: HZL-1200 / 1500 / 1800

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc h beam drilling machine

,

h beam welding line

Voltage:
380V 3-phase 50Hz Or Customized
Web Thickness:
6-32mm
Web Length:
4000-15000mm
Flange Thickness:
6-40mm
Flange Plate Width:
200-800mm
Color:
Red+black, Blue+yellow, Grey+yellow Or Customized
Voltage:
380V 3-phase 50Hz Or Customized
Web Thickness:
6-32mm
Web Length:
4000-15000mm
Flange Thickness:
6-40mm
Flange Plate Width:
200-800mm
Color:
Red+black, Blue+yellow, Grey+yellow Or Customized
Light Duty Automatic H / I Beam Spot Welding Assembly Machine with 350A CO2 Welding Source



Light Duty Steel Automatic H / I Beam Spot Welding Assembly Machine



Performance:



H assembling machine is a specially designed for the molding of H beam. During the assembling of the H beam, hydraulic clamp is used for synchronized camping and automatic centering to guarantee the accurate positioning of former of different widths during the specified range.

-Provide goods bound and compose parts

  • Machine body: main frame upper gantry assemble flange-web in-phase clamping aligning unit driving reducer
  • Input conveyor: 2600 mm x 3 sets
  • Out conveyor : 2600 mm x 3 sets
  • Hydraulic system: oil pump station high pressure hose hydraulic cylinders etc
  • Auto-tack welding system: 2sets of KN-350 Co2 welding machine auto welding unit.
  • Spare parts:3 buttons 3 pieces of 4A 2A fuses each



Technique document (send out to clientele after bargain go into effect ):



a, Operating manual(including electrical diagram)

b, Delivery list

c, Certificate

d, Foundation diagram

e, Transducer operation instruction , hydraulic pump operation instruction.





Technical Parameters:



Model HZL-1200 HZL-1500 HZL-1800
Web Height (mm) 200-1200 200-1500 200-1800
Web Thickness (mm) 6-32
Web Length (mm) 4000-15000
Flange Plate Width (mm) 200-800
Flange Plate Thickness (mm) 6-40
Assembling-standing Speed (mm/min) 500-6000
Input Roller Way (mm) 2600×3
Output Roller Way (mm) 2600×3
Draw Bar Box 2 pieces
Centering Type Use hydraulic linkage mechanism to achieve automatic clamp and centering and the middle spot welding
Speed Control AC frequency converter (stepless speed)
Input Capacity 9.5 KW (not including welding power supply)
Welding System KN-350 Gas-shielded welding machine,2 sets

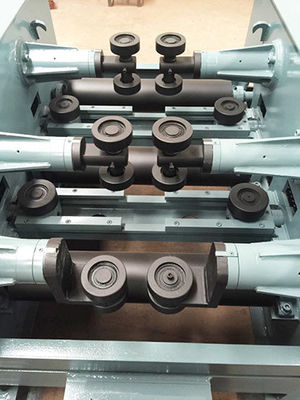

H Beam Line Show:



Light Duty Automatic H / I Beam Spot Welding Assembly Machine with 350A CO2 Welding Source 0

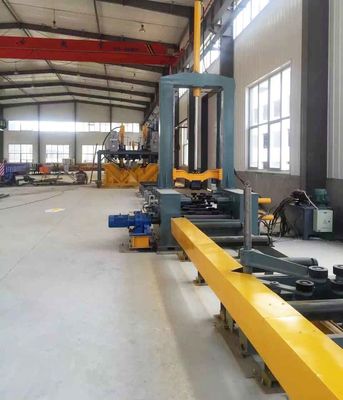

Finished Products Show:
