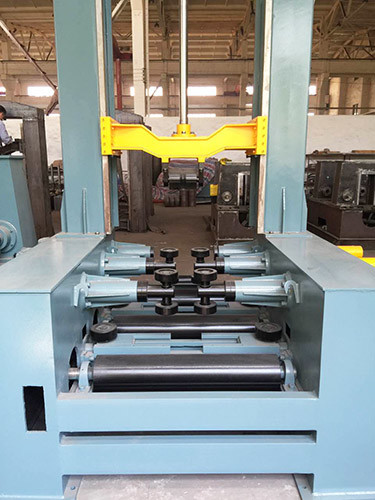

Automatic H / I Beam Spot Welding Assembly Machine
Performance:
The vertical assembly machine which the flange, web fastening and calibrating, positioning, and auto spot welding equipped, all of which accept the Japanese Mitsubishi programmable controller and the AC frequency converter so as to increase the productivity one times above comparing with common products, with the features of stable and reliable working state and the welding gun is equipped by the arc-tracing device to ensure the quality of welding.
Technique document (send out to clientele after bargain go into effect ):
a, Operating manual(including electrical diagram)
b, Delivery list
c, Certificate
d, Foundation diagram
e, Transducer operation instruction , hydraulic pump operation instruction.
Technical Parameters:
| Model | HZL-1200 | HZL-1500 | HZL-1800 |
| Web Height (mm) | 200-1200 | 200-1500 | 200-1800 |
| Web Thickness (mm) | 6-32 | ||
| Web Length (mm) | 4000-15000 | ||
| Flange Plate Width (mm) | 200-800 | ||
| Flange Plate Thickness (mm) | 6-40 | ||
| Assembling-standing Speed (mm/min) | 500-6000 | ||
| Input Roller Way (mm) | 2600×3 | ||
| Output Roller Way (mm) | 2600×3 | ||
| Draw Bar Box | 2 pieces | ||
| Centering Type | Use hydraulic linkage mechanism to achieve automatic clamp and centering and the middle spot welding | ||
| Speed Control | AC frequency converter (stepless speed) | ||
| Input Capacity | 9.5 KW (not including welding power supply) | ||
| Welding System | KN-350 Gas-shielded welding machine,2 sets | ||
