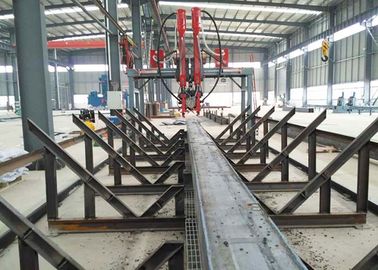

Gantry Type Auto H Beam Production Line 1000A Submerged Arc Welding Source

Gantry Type Auto H Beam Production Line 1000A Submerged Arc Welding Source

  • Gantry Type Auto H Beam Production Line 1000A Submerged Arc Welding Source
Gantry Type Auto H Beam Production Line 1000A Submerged Arc Welding Source
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: LMH-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Gauge Of Gantry Frame: 4000mm Or As You Request Width Of Flange: 200-800mm
H Beam Height: 200-1500mm Usage: H Beam Welding
Welding Type: Boat Type Welding Warranty: 12 Months
High Light:

cnc h beam drilling machine


h beam welding line


Gantry Type H-Beam Auto Welding Machine


Brief Description:


1. The H beam gantry gate welding machine has two structures: Gantry gate move type & Cantilever move type.

2. Gantry gate or cantilever drive method: AC motor and R series worm reducer.

3. Welding speed: 0.15~1.5m/min.

4. Arc guide frame head function is to mechanically track up and down, left and right.

5. Imported frequency converter is able to realize gantry gate or cantilevers stepless speed adjustment, with wide speed adjustment range, high accuracy and constant output torque.

6. Electrical control cabinet includes main control cabinet and remote operation box.


Main Features:

1, Gantry gate unit: Gantry gate,travel device,lateral sliding device,feeding wire wheel and pipe accessories;

2, Welding arm and carriage: Welding arm,motor transmission device,move device and accessories (2 sets each);

3, Arc guide device: Welding gun,mechanical adjusting unit and feeding wire machine (2 sets each);

4, Flux recovery system: 100kg flux recovery machine,separate material barrel,flux hopper,flux recoveryand transmission pipe;

5, Electric control system: Electric control cabinet,AC frequency converter,operation box,lighting warning light;

6, Pipe and wire system: Welding machine power wire,control wire,welding cable,gantry gate control cable,air source pipe,suspending sliding frame;

7, Welding system: MZ-1000/DC-1000 submerge arc welding machine*2sets;

8, Welding Qty: 2pcs H beam once completed.


Technical Parameters:


Model LMH-4000
Web Height (mm) 200-2000
Web Width(mm) 200-800
Model of Welding machine Two sets of model MZ-1000B SAW welding machine
Form of Welding Ship-welding
Welding Speed(m/min) 0.15-1.0m/min
Returning Speed(m/min) 3m/min
Rails Span 2000mm
Overall Power 10kw
