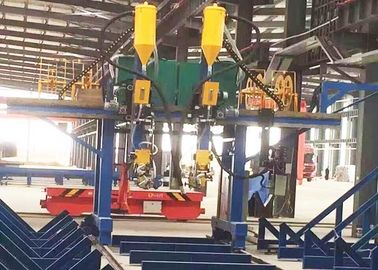

T Type Submerged Arc Welding Machine , 2000mm Web Height H Beam Assembly Machine

T Type Submerged Arc Welding Machine , 2000mm Web Height H Beam Assembly Machine

  • T Type Submerged Arc Welding Machine , 2000mm Web Height H Beam Assembly Machine
T Type Submerged Arc Welding Machine , 2000mm Web Height H Beam Assembly Machine
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: SXBH-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Gauge Of Gantry Frame: 2000mm Or As You Request Width Of Flange: 200-800mm
H Beam Height: 200-2000mm Usage: H Beam Welding
Welding Type: Boat Type Welding Warranty: 12 Months
High Light:

cnc h beam drilling machine

,

h beam assembly machine



Automatic T Type Submerged Arc Welding Machine for Steel Structure



Descriptions:



a. Rail distance: 2000mm.



b. Gantry type controlled by AC inverter displayed in digital, with functions of stable running and fast traveling speed.

c. Including 2 control types: middle and side control.

d. Mainly composed of gantry, carriage unit, mechanical tracing unit, flux recovery system, pneumatic system, electric system and SAW machine.

e. Middle gantry frame supports movable and 2 sides overhang installed welding arm work piece at locate both sides assistant rack for fillet welding in down hand.

f. Equipped with seam tracker, automatic flux feeding and recovery and wheels traveling unit.

g. Seam tracking and arc-guide mechanism used for return control and also can ensure welding gun centering without aberrancy.

h. Main machine and welder leakage control.



Technical Parameters:



Model SXBH-2000
Web Height (mm) 200-2000
Web Width(mm) 200-800
Model of Welding machine Two sets of model MZ1-1000 SAW welding machine
Form of Welding Ship-welding
Welding Speed(m/min) 0.15-1.0m/min
Returning Speed(m/min) 3m/min
Rails Span 2000mm
Overall Power 10kw





T Type Submerged Arc Welding Machine , 2000mm Web Height H Beam Assembly Machine 0

Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?



These information is helpful for us to choose suitable equipment solution and price quickly.
