6-40 mm Flange Thickness H Beam Production Line Hydraulic Automatic Centering

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: HZL-2000

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

cnc h beam drilling machine

,

h beam assembly machine

Voltage:
380V 3-phase 50Hz Or Customized
Web Height:
200-2000mm
Flange Plate Width:
200-800mm
Assembly Speed:
0.65~6.5m/min
Workpiece Length:
6000~15000mm Or As User's Requirements
Material Of Plate:
Stainess Steel, Mild Steel And Other
Voltage:
380V 3-phase 50Hz Or Customized
Web Height:
200-2000mm
Flange Plate Width:
200-800mm
Assembly Speed:
0.65~6.5m/min
Workpiece Length:
6000~15000mm Or As User's Requirements
Material Of Plate:
Stainess Steel, Mild Steel And Other
6-40 mm Flange Thickness H Beam Production Line Hydraulic Automatic Centering

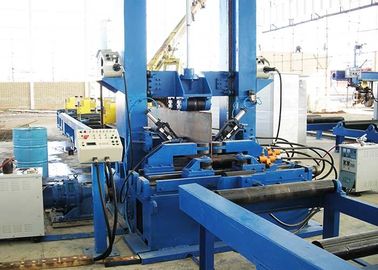

HZL Series Hydraulic Automatic Centering H beam Assembly Machine (Heavy Duty)





Brief Description:


H-beam automatic assembly machine is a kind of H-beam full-automatic assembly equipment based on extensive market. Positioning of flange and web is adopted with hydraulic transmission, both sides clamped and aligned mechanically, ensuring precise positioning of web and flange of different width within specified range. Automatic alignment is accurate,no need to adjust every time.



Main technical specifications:



1,The main structure: Main frame,upper gate frame,synchronous clamping and centralizing system of web and flange, main transmission motor reducer;



2. Applicable workpiece specifications: Web height:200-2000mm,Flange width:200-800mm,Length:4000-15000mm;



3, Clamping system:Web and flange automatic clamping;



4, Inlet table roller system: Active and passive table roller: 2.6m*3sets, tension rod: 3 sets;



5, Outlet table roller system: Active and passive table roller: 2.6m*3sets;



6, Hydraulic system: Oil bump station,high pressure rubber pipe,and hydraulic cylinder.With pressure keep and Time delay function;



7, Electric control system: Electric cabinet,AC frequency converter and etc;



8, Host drive control: Ac motor + Cycloidal reducer;



9, Power: AC 380V frequency 50Hz 3 phase;



10, Adopt imported technology of frequency converter to AC frequency convertor centralizes and locates the web and flange,and realize automatic working;



11, CO2 gas shield welding or manual welding are optional for user.





6-40 mm Flange Thickness H Beam Production Line Hydraulic Automatic Centering 0



Technical Parameters:



Model HZL-2000
Web Height (mm) 200-2000
Web Thickness (mm) 6-32mm
Web Length (mm) 6000-15000
Flange Height (mm) 200-800
Flange Thickness (mm) 6-40
Flange Length (mm) 6000-15000
Assembling-standing Speed (mm/min) 500-6000
Input Capacity 16.5 KW (not including welding power supply)
Welding System KN-350 Gas-shielded welding machine,2 sets
