Stainess Steel H Beam Assembly Machine Hydraulic Automatic Centering 16.5 KW

Stainess Steel H Beam Assembly Machine Hydraulic Automatic Centering 16.5 KW

  • Stainess Steel H Beam Assembly Machine Hydraulic Automatic Centering 16.5 KW
Stainess Steel H Beam Assembly Machine Hydraulic Automatic Centering 16.5 KW
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HZL-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V 3-phase 50Hz Or Customized Web Height: 200-2000mm
Flange Plate Width: 200-800mm Assembly Speed: 0.65~6.5m/min
Workpiece Length: 6000~15000mm Or As User's Requirements Material Of Plate: Stainess Steel, Mild Steel And Other
High Light:

h beam assembly machine


h beam welding line


HZL Series Hydraulic Automatic Centering H beam Assembly Machine (Heavy Duty)



Product Description:

This machine is the major equipment in h-beam production line, applicable to the T section steel, h-beam and variable cross-section h-beam production, H beam can realize two all weld artificial spot welding at the same time(The wingplate and web plate),second set of molding is completed.


One pair of manipulator formed guide chute on the enter roller conveyor,and Prepare for the positioning of upperand lower wing, Another one pair of manipulator (hydraulic) to prepare orientation for web plate.


Within the gantry frame is installed with a series of positioning clamping device, the first is manual unilateral movingposition, because the workpiece of workblank size has error, avoid bigger error problem in production. Automaticassembly machine with hydraulic clamping and positioning international popular method, pressure roller and the maindrive roller is basically in a plane. it is advantageous to the web with wing.


The machine transmission device adopts frequency control of motor speed, Using frequency converter has the features of torsional moment and carrying on vector control, make the device less power consumption, and there are a lot of speed range.


Technical Parameters:


Model HZL-2000
Web Height (mm) 200-2000
Web Thickness (mm) 6-32mm
Web Length (mm) 6000-15000
Flange Height (mm) 200-800
Flange Thickness (mm) 6-40
Flange Length (mm) 6000-15000
Assembling-standing Speed (mm/min) 500-6000
Input Capacity 16.5 KW (not including welding power supply)
Welding System KN-350 Gas-shielded welding machine,2 sets

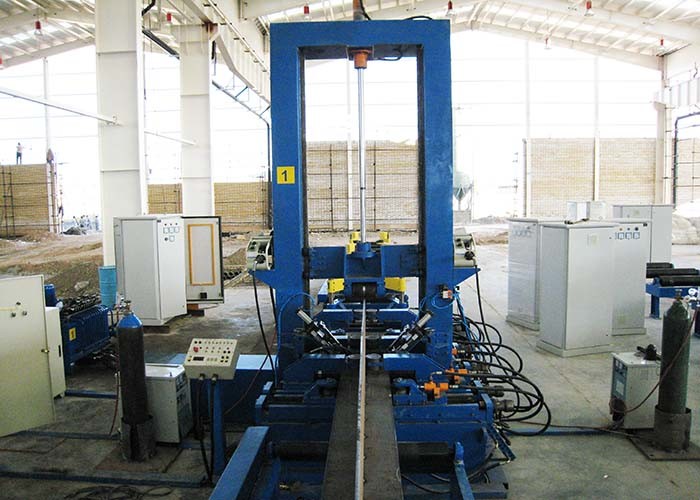

Machine in Using:


Stainess Steel H Beam Assembly Machine Hydraulic Automatic Centering 16.5 KW 0




1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.


2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.


3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.


4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.


6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?


These information is helpful for us to choose suitable equipment solution and price quickly.
