Heavy Duty H Beam Production Line 2000mm Web Height 380V Three Phase 50Hz

Heavy Duty H Beam Production Line 2000mm Web Height 380V Three Phase 50Hz

  • Heavy Duty H Beam Production Line 2000mm Web Height 380V Three Phase 50Hz
Heavy Duty H Beam Production Line 2000mm Web Height 380V Three Phase 50Hz
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HZL-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V 3-phase 50Hz Or Customized Web Height: 200-2000mm
Flange Plate Width: 200-800mm Assembly Speed: 0.65~6.5m/min
Workpiece Length: 6000~15000mm Or As User's Requirements Material Of Plate: Stainess Steel, Mild Steel And Other
High Light:

h beam assembly machine


h beam welding line


HZL Series Hydraulic Automatic Centering H beam Assembly Machine (Heavy Duty)





It is designed according to the requirement of home market whose characteristics is to meet the demand of different production.


Product Description:


Heavy H-beam / I beam producing line is designed according to market demand of steel structure construction. The characteristics is that according to customer existing factory space, investment amount, production efficiency, meet various size, and standard customer demand.

This is the heavy duty steel structure production line for light steel structure work shop building. This line is more automatic compared to single producing machine, and more suitable for lot size and mass production with higher efficiency. The producing line is equipped with 90° Turn over frame, 45° Turn over frame, parallel steel move machine, 180° Hydraulic turn over frame, transmit roller bed and etc. To realize semi-automatic of H-beam production. Besides cutted material and material after assembly and straightening needing to be lifted by bridge crane, no need of bridge crane in the whole process. The safety working is strengthened and labor intension reduced largely.


Technical Parameters:


Model HZL-2000
Web Height (mm) 200-2000
Web Thickness (mm) 6-32mm
Web Length (mm) 6000-15000
Flange Height (mm) 200-800
Flange Thickness (mm) 6-40
Flange Length (mm) 6000-15000
Assembling-standing Speed (mm/min) 500-6000
Input Capacity 16.5 KW (not including welding power supply)
Welding System KN-350 Gas-shielded welding machine,2 sets

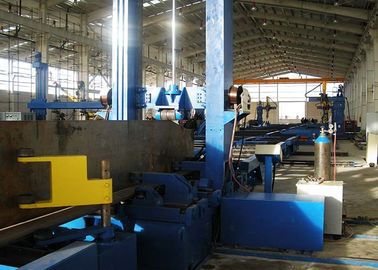

Machine in Using:


Heavy Duty H Beam Production Line 2000mm Web Height 380V Three Phase 50Hz 0




1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.


2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.


3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.


4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.


6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?


These information is helpful for us to choose suitable equipment solution and price quickly.
