High Efficiency CNC Pipe Cutting Machine 750W Water Cooling Galvanized Iron

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: FL-30-750W

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

pipe plasma cutting machine

,

plasma tube cutting machine

Effective Cutting Length:
3000mm Or 6000mm Or 12000mm
Laser Type:
Fiber Laser Cutting
Cutting Material:
Metal, Steel, Aluminum, Etc.
Cutting Thickness:
Max 8mm
Laser Power:
750W
Cooling Mode:
Water Cooling
Effective Cutting Length:
3000mm Or 6000mm Or 12000mm
Laser Type:
Fiber Laser Cutting
Cutting Material:
Metal, Steel, Aluminum, Etc.
Cutting Thickness:
Max 8mm
Laser Power:
750W
Cooling Mode:
Water Cooling

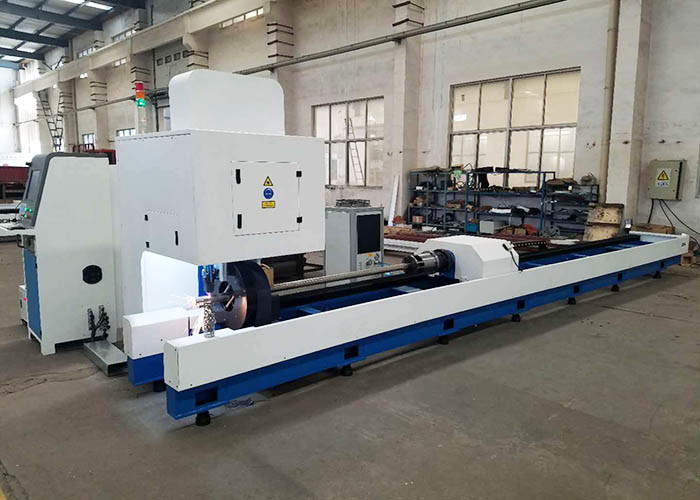

High Efficiency CNC Pipe Cutting Machine 750W Water Cooling Galvanized Iron



Automatic Stainless Steel Metal Fiber Laser Pipe Tube Cutting Machine



Advantages:



1). Great Performance: with excellent path quality, Identical cutting quality on any cutting point is realized through fiber transmission.


2). High Cutting Speed: The rapid cutting speed is two times higher than that of CO2 laser machine. Its use-cost is very low.



3). Low Cost: Save energy and Environmentally friendly because of low gas Consumption: Laser cutting does not make any gas because of the specific cutting technology on steel plate. power consumption is reduced by 20%-30% compared with CO2 laser.



4). High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have 3 times photoelectric conversion efficiency.



5). Stable Running: adopt top world import fiber laser generator, stable performance, key parts can reach 100,000 hours; Machine bed treated by 650℃ heat treatment ensure its stability and smoothness.



6). Maintenance-free: The machine is maintenance-free, there is almost no any parts need to change after long term use.



7). Easy operations: fiber line transmission, no adjustment of optical path.



Features:


1. Imported high precision double servo driver and rail guide transmission,German Atlanta gear and rack,long service life.



2. Electric,automatic centering chuck, no manual adjustment,any materials from 20-220mm without adjusting the center.



3. The machine have before and after chuck ,rigges up servo motor driving system,cutting without jitter,high precision and good synchronization.



4. Automic chuck the front and bottom,easy to feeding,designed for saving material.



5. Adopting Cypcut fiber cutting machine special CNC control system ,it can directly accept the drawings from 3-Dimension drawing software.The drawings can be directly displayed in the computer.



6. New beautiful designed, fully enclosed procetective cover.



7. Machine frame,crossbeam and worktable adopt intergral welding,made as stander large machine.It could maintain high strength ,high precision and keep the normal use of 20 years without deformation.



Application Material:



Fiber Laser Pipe / Tube Cutting Equipment is mainly used for cutting carbon steel, Stainless Steel, Mild Steel Plate, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Pickling Board, Aluminum Zinc plate, Aluminum Alloy, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.



Technical Parameters:



Laser Power 500W 700W 1000W
Laser Wave 1070nm 1070nm 1070nm
Pipe Cutting Length ≤3000mm ≤3000mm ≤3000mm
Round Pipe Diameter 20-200mm 20-200mm 20-200mm
Square Tube Side less than 160mm less than 160mm less than 160mm
Pipe Thickness 6mm 8mm 10mm
Laser Line Width 0.15mm 0.15mm 0.15mm
Location Precision ±0.03mm/m ±0.03mm/m ±0.03mm/m
Re-location Precision ±0.02mm ±0.02mm ±0.02mm
Power 380V/50Hz 380V/50Hz 380V/50Hz
Cooling Water cooling Water cooling Water cooling







Cutting Parameters:
