Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-30-2000W
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Length: |
3000mm Or 6000mm Or 12000mm |
Laser Type: |
Fiber Laser Cutting |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 16mm |
Laser Power: |
2000W |
Cooling Mode: |
Water Cooling |
Effective Cutting Length: |
3000mm Or 6000mm Or 12000mm |
Laser Type: |
Fiber Laser Cutting |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 16mm |
Laser Power: |
2000W |
Cooling Mode: |
Water Cooling |

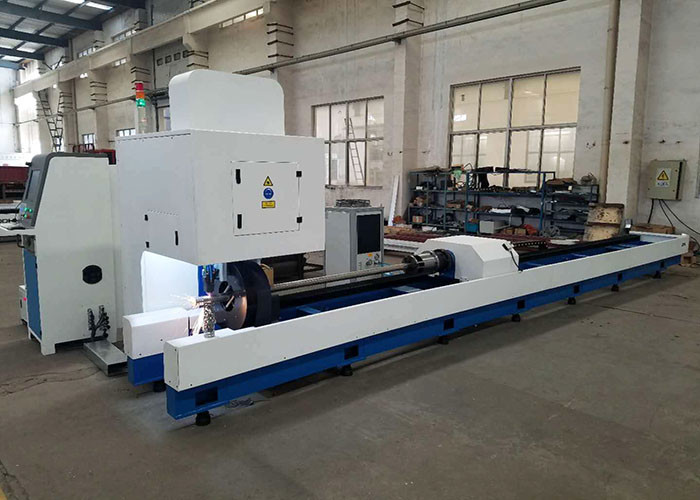

Automatic Stainless Steel Metal Fiber Laser Pipe Tube Cutting Machine
Applicable material
Stainless steel, mild steel, carbon steel, alloy steel, spring steel, Iron, galvanized iron, galvanized, aluminum, copper, brass, bronze, gold, silver, titanium, metal, tubes and pipes, etc.
Applicable industry
Fiber Laser Cutting Machines are widely used in manufacture billboard, advertising, signs, signage, metal letters, LED letters, kitchenware, advertising letters, sheet metal processing, metals components and parts, Ironware, chassis, racks & cabinets processing, metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, glasses frame, electronic parts, nameplates, etc.
Features:
1. Imported high precision double servo driver and rail guide transmission,German Atlanta gear and rack,long service life.
2. Electric,automatic centering chuck, no manual adjustment,any materials from 20-220mm without adjusting the center.
3. The machine have before and after chuck ,rigges up servo motor driving system,cutting without jitter,high precision and good synchronization.
4. Automic chuck the front and bottom,easy to feeding,designed for saving material.
5. Adopting Cypcut fiber cutting machine special CNC control system ,it can directly accept the drawings from 3-Dimension drawing software.The drawings can be directly displayed in the computer.
6. New beautiful designed, fully enclosed procetective cover.
7. Machine frame,crossbeam and worktable adopt intergral welding,made as stander large machine.It could maintain high strength ,high precision and keep the normal use of 20 years without deformation.
Technical Parameters:
| Laser Power | 500W | 700W | 1000W |
| Laser Wave | 1070nm | 1070nm | 1070nm |
| Pipe Cutting Length | ≤3000mm | ≤3000mm | ≤3000mm |
| Round Pipe Diameter | 20-200mm | 20-200mm | 20-200mm |
| Square Tube Side | less than 160mm | less than 160mm | less than 160mm |
| Pipe Thickness | 6mm | 8mm | 10mm |
| Laser Line Width | 0.15mm | 0.15mm | 0.15mm |
| Location Precision | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Re-location Precision | ±0.02mm | ±0.02mm | ±0.02mm |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Cooling | Water cooling | Water cooling | Water cooling |
Cutting Samples:
