Name: U Type Box Beam Production Line Automatic Assembling Machine 380V 3PH 50HZ
Brand: Metalwork
SKU: SBZ12
Rating: 4.8 (195 reviews)

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: SBZ12

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 X 40' OT

Delivery Time: 60 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price

Product Details

Product Description

High Light:
                                                                                                                                                                                                                                                beam welding line machine, electroslag welding machine


Voltage:	380V,3PH,50HZ Or Customerized	Total Power:	0.75X2+11KW
Aftersale Service:	Engineers Available To Service	Machine Overall Size:	4450X2935X3185mm
Color:	Blue, Grey Or Customized	Warranty:	1 Year

Voltage:	380V,3PH,50HZ Or Customerized
Total Power:	0.75X2+11KW
Aftersale Service:	Engineers Available To Service
Machine Overall Size:	4450X2935X3185mm
Color:	Blue, Grey Or Customized
Warranty:	1 Year

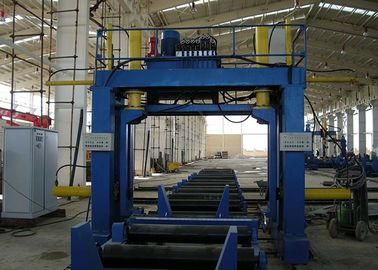

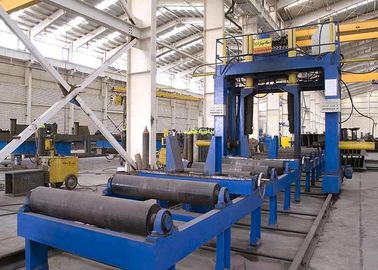

U Type Box Beam Production Line Automatic Assembling Machine 380V 3PH 50HZ

SBZ12 Box Beam Assembling Machine

Features:

3 models according to H-beam web height: 1500, 1800 and 2000mm

Process including clamping and centering web and flange with hydraulic transmission

Control system adapts Japanese Mitsubishi PLC controller

Both sides clamped and aligned through mechanical system, ensuring positioning of web and flange of various width within specified range accurate automatic alignment, no need to adjust each time eccentricity roller

Upper press beam adapted with right and left 4 groups of guide-way, ensuring pressing stability

Automatic spot welding arc-tracing unit driven with light-duty oil cylinder, without compressed air input, output conveyor and inlet pulling rod system are in segments, length and quantity can be chosen according to workpiece length

Used for inching adjustment hydraulic stopping rack at both sides can ensure alignment of end side of web and flange during assembly

Technical Parameters:

BOX beam width	300 ~ 1,200mm
Box beam height	300 ~ 1,200mm
Box beam length	4,000 ~ 15,000mm
Max loading capacity	20t
Frame moving speed	4/6 m／min
Hydraulic system pressure	14 MPa
Left-right oil cylinder max working pressure	15t
Up oil cylinder max pressure	30 t
Left-right oil cylinder max stroke	800 mm
Up oil cylinder max stroke	900 mm
Moving motor power	0.75w×2
Pump station motor power	11 kw
Roller conveyor motor power(single machine no roller conveyor)	2.2 kw
Roller conveyor conveying speed	9.3 m/min
