Cantilever Type Back CO2 Welding Machine , Automatic Steel Box Assembly Machine

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: XXBC-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

beam welding line machine

,

electroslag welding machine

Box Beam Section Length:
300-1200mm
Box Beam Section Width:
300-1200mm
Usage:
Box Beam Welding
Box Beam Length:
4000-15000mm
Welding Type:
CO2 Welding
Warranty:
12 Months
Box Beam Section Length:
300-1200mm
Box Beam Section Width:
300-1200mm
Usage:
Box Beam Welding
Box Beam Length:
4000-15000mm
Welding Type:
CO2 Welding
Warranty:
12 Months
Cantilever Type Back CO2 Welding Machine , Automatic Steel Box Assembly Machine

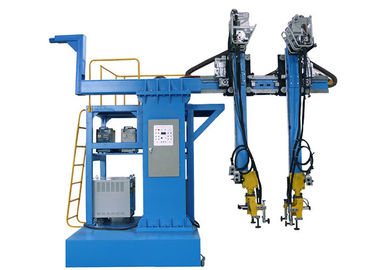

Automatic Cantilever Type Back CO2 Welding Machine for Steel Box Beam





This machine is mainly used for CO2 gas shield backing welding of assembled Box-beam.

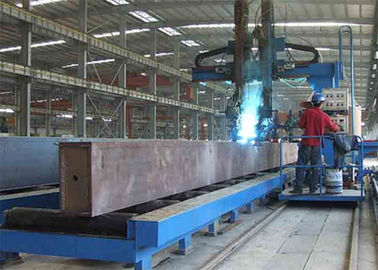

Box-beam after finishing assembling will be transported to gas shield backing welding area by roller conveyor.



The welding arms which equiped with welding heads can make horizontal and elevating movement by skateboard and trolley. This can make the CO2 welding head’s nozzle aiming at the welding seam.



There is pneumatic elastic mechanical guide arc device on welding arm, and trolley can move in straight line on guide rail. It can make automatic backing welding for Box-beam groove flat welding seam.



This machine is used for tandem twin gas shield back welding of the assembled box-beam bevel side fillet welding seam at flat.



It has the advantages of fast speed and high efficiency. It can reduce the affect to welding may caused by man's activity.





Technical Parameters:



Workpiece size 300~1200 mm
Welding speed 0.15~1.5 m/min
Return speed 3 m/min
Trolley track gauge 1400 mm
Main machine power 1.4 kW
Air source pressure 0.5~0.7 MPa
Welding machine assembly Panasonic welder YD-600KH×4 sets, control box, control cable, and cooling water tank.



Cantilever Type Back CO2 Welding Machine , Automatic Steel Box Assembly Machine 0



Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your Box beam?

• What's the min and max thickness of box beam plate?

• What's the min and max box beam section width?

• What's the min and max box beam section length?
• What’s the length of your box beam?



These information is helpful for us to choose suitable equipment solution and price quickly.
