180 Degree Box Beam Automatic Beam Welding Line Conveying Machine Moving Type

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: BFZJ-180

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

beam welding line machine

,

electroslag welding machine

Turning Angle:
0-90°
Box Beam Section Length:
300-1200mm
Box Beam Section Width:
300-1200mm
Box Beam Length:
4000-15000mm
Usage:
Box Beam Welding
Warranty:
12 Months
Turning Angle:
0-90°
Box Beam Section Length:
300-1200mm
Box Beam Section Width:
300-1200mm
Box Beam Length:
4000-15000mm
Usage:
Box Beam Welding
Warranty:
12 Months
180 Degree Box Beam Automatic Beam Welding Line Conveying Machine Moving Type



180 Degree Box Beam Conveying Machine for Box Beam Production Line

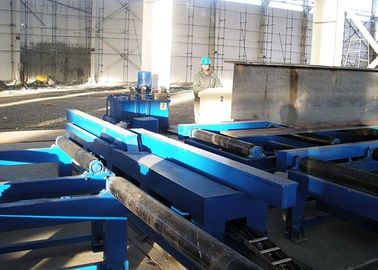

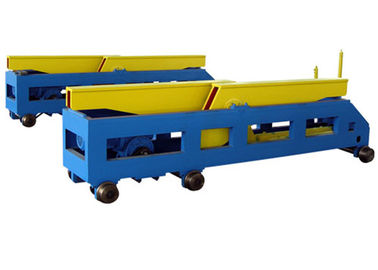

Moving type 180° overturning machine can support the use of clapboard welding area, backing welding, submerged arc welding, and welding seam inspecting area. It is used for overturning the Box-beam workpiece, and is composed by two sets of overturning machines, one hydraulic station and one electrical control box.



Workpiece overturning process including:



1) Two overturning machines move to the place which under the workpiece;



2) One rocker arm first overturn 90°to near workpiece’s vertical surface;



3) Two rocker arms turn back 45° simultaneously to to raise the workpiece from roller conveyor;



4) Two overturning machines move simultaneously, and move the workpiece to suitable position;



5) The two rocker arms turn back 45° again and workpiece overturn 90°, then lay it on the roller conveyor.



6) The rocker arm which has turned 90°back to horizontal level;



7) Two overturning machines move simultaneously to Procedure 1 position;



8) Repeat Procedure 2 to Procedure 6, thus can overturn the workpiece to 180°.





Technical Parameters:



Track gauge 700 mm
Overturning capacity ≤20 T
Moving speed 5 m/min
Moving motor power 2.2 kW×2
Hydraulic system power 30 kW
Hydraulic system working pressure 25 MPa







Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?

• What's the min and max thickness of web plate?

• What's the min and max thickness of flange plate?

• What's the min and max flange width?

• What's the min and max web height?
• What’s the size of your workpiece?



These information is helpful for us to choose suitable equipment solution and price quickly.
