Double Welding Torch SAW Welding Machine , Box Beam Steel Structure Production Line

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: XXBH-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 20' GP

Delivery Time: 40 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

steel structure production line

,

electroslag welding machine

Box Beam Section Length:
300-1200mm
Box Beam Section Width:
300-1200mm
Usage:
Box Beam Welding
Welding Type:
Boat Type Welding
Box Beam Length:
4000-15000mm
Warranty:
1 Year
Box Beam Section Length:
300-1200mm
Box Beam Section Width:
300-1200mm
Usage:
Box Beam Welding
Welding Type:
Boat Type Welding
Box Beam Length:
4000-15000mm
Warranty:
1 Year
Double Welding Torch SAW Welding Machine , Box Beam Steel Structure Production Line



Automatic Cantilever Type SAW Welding Machine for Steel Box Beam with Double Welding Torch





This machine is composed of traveling cart,welding arm,welding gun mechanical tracking device,pneumatic system,electrical control system,flux feeding and recovery machine and submerged arc welding the box beam.It is always used for box-beam SAW welding.There are two kinds of welding method for box-beam SAW welding,single arc single wire and double arc double wire.For single arc single wire welding,the welding power can be domestic-made or foreign-imported;while for double arc double wire welding,usually equipped with welding power American Lincoln DC-1000,AC-1200 to improve work efficiency.





Machine advantage:



1) Host machine and welding machine to implement the linkage control, meanwhile, it is equipped with the auto welding flux feeder and recovery system, easy operation, high efficiency.



2) Walking rack moving is frequency speed control, the speed can be adjusted according to the welding technology requirement with convenience.



3) This machine can not only weld the box beam, it can also weld the H beam by changing the arc guiding rack.



4) This machine can realize forth and back welding, which improves the welding efficiency greatly.



5) Main body of upper beam is square pipe, which is light and has high rigidity. There are guiding rail and rack on upper beam. It makes tool carriage and transverse arm moving horizontally on the beam.





Technical Parameters:



Suitable workpiece size 300-1200mm
Welding speed 0.3-1.5m/min
Feed and feeb-back speed 3m/min
Gauge 1400mm
Gas pressure 0.4-0.8Mpa

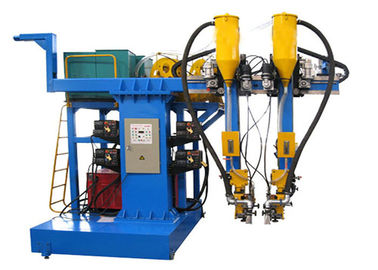

Double Welding Torch SAW Welding Machine , Box Beam Steel Structure Production Line 0



Questions:



1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your Box beam?

• What's the min and max thickness of box beam plate?

• What's the min and max box beam section width?

• What's the min and max box beam section length?
• What’s the length of your box beam?



These information is helpful for us to choose suitable equipment solution and price quickly.
