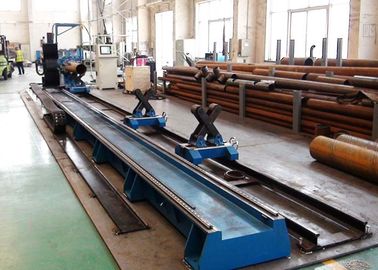

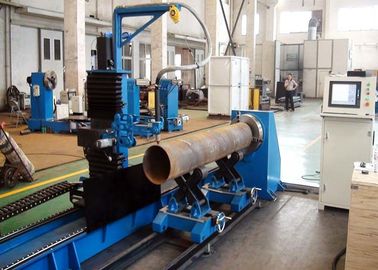

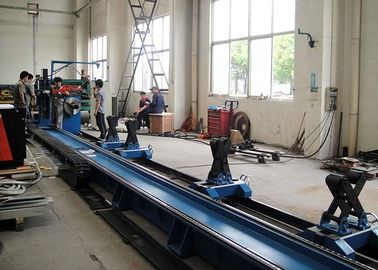

CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter

CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter

  • CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter
  • CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter
  • CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter
  • CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter
CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC4- Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 40' GP
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V Or Customized Effective Cutting Length: 6000mm / 12000mm
Cutting Pipe Diameter: 200-1400mm Moving Axle Number: 6 Axle
Ellipticity Of Workpiece: ≤1% Plasma Cutting Thickness: Depends On Plasma Source
High Light:

pipe plasma cutting machine

,

laser tube cutting equipment



CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter





CNC pipe intersection cutting machine is special CNC equipment which is used for cutting metal pipe automatically. It can realize auto program and auto CNC nesting work for any complicated joint type of intertube and pipe and non-intertube. And can cut any type welding bevel at one time. This product is widely used for steel structure, shipbuilding, bridge and heavy machine industries.





Features:



1. CNC4 series multiaxial intersection cutting is mainly applied for thermal cutting of intersection line and end of various pipe system. Suitable work-piece material is mild steel and stainless steel, with wide range pipe diameter: 60mm~1.4m. The cutting head can be changed to flame head or plasma head according to customers’ requirement. The supporting roller is self-aligned, which will prevent work-piece bouncing.



2. The pipe transmission of this cutting machine is chuck supporting roller combined type, cutting minimum cross angle is 20°, provide three kinds of groove dealing function:



1) Fixed angle groove: according to the angle which user input to cut groove (Max groove angle 60°).



2) Changed angle groove: groove changed according to two intercross face angle.



3) Fixed point groove: user can set several special point angle (4 point or 8 point), groove angle will change among these point smoothly.

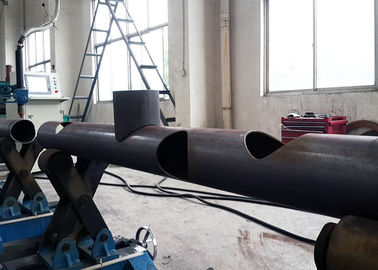

3. Continuous cutting function: this machine has function of several intercross line continuous cutting, only need to input data for pipe cutting to machine one time, the machine can finish cutting for several intercross line automatically. During the procedure, there’s no need any person to control.



4. Configuration of key components



Motion position control card Googol GE-400-PCI
AC servo system A4 series Japan Panosonic AC servo motor and driver
Gear box Precision planetary reducer





Technical Parameters:



Model CNC4-440 CNC4-560 CNC4-680 CNC4-6140
Moving axle number 4 axle 5 axle 6 axle 6 axle
Cutting pipe dia. (mm) ø=60-400 ø=60-600 ø=120-800 ø=200-1400
Plasma cutting pipe thickness δ1=depend on plasma power
Effective cutting work-piece length (mm) L1=12000mm(according to customer’s requirement)
Ellipticity of work-piece ≤1%
Cutting speed (mm/min) V=10-3000
Moving speed (mm/min) V0=10-6000 V0=10-7900
Cutting torch axial swing angle α=±45°(Plasma should not have current interruption)
Flame torch cutting thickness (mm) 50



CNC4 Flame Plasma Tube Cutting Machine Customized Voltage 200-1400mm Pipe Diameter 0





Questions:





1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.




2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.




3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.




4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.




5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.




6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?

• What the min and max diameter of your pipe?

• What’s the min and max length of your pipe?

• Do you need bevel cutting?



These information is helpful for us to choose suitable equipment solution and price quickly.
