6 Axis Intersecting CNC Plasma Pipe Cutting Machine 60-600mm Pipe Diameter

Product Details

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: CNC4- Series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1 x 40' GP

Delivery Time: 60 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Get Best Price
High Light:

plasma tube cutting machine

,

laser tube cutting equipment

Voltage:
110V/220V/380V
Effective Cutting Length:
6000mm / 12000mm
Cutting Mode:
Flame Or Plasma Cutting
Application:
Industrial Metal Cutting
Flame Cutting Thickness:
6-150mm
Plasma Cutting Thickness:
Depends On Plasma Source
Voltage:
110V/220V/380V
Effective Cutting Length:
6000mm / 12000mm
Cutting Mode:
Flame Or Plasma Cutting
Application:
Industrial Metal Cutting
Flame Cutting Thickness:
6-150mm
Plasma Cutting Thickness:
Depends On Plasma Source

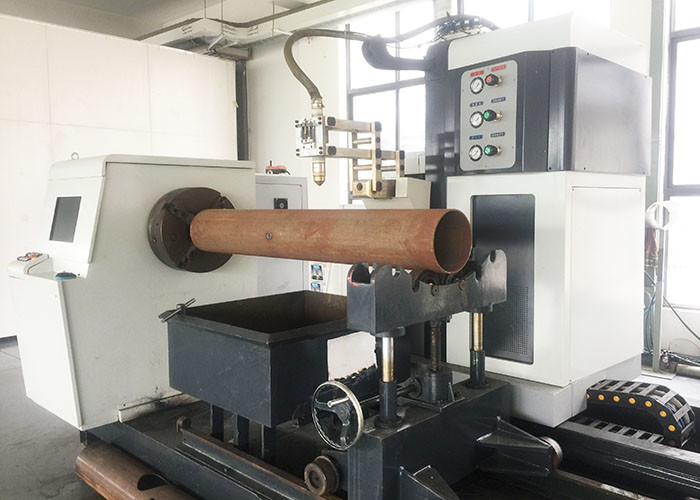

6 Axis Intersecting CNC Plasma Pipe Cutting Machine 60-600mm Pipe Diameter



CNC4-600 CNC Plasma / Flame Pipe / Tube Intersecting Line Cutting Machine



Application:



Our self-developed CNC intersecting line pipe cutting machine is slinky in appearance, convenient in operation and high precision in cutting, which is widely used in petroleum, construction steel, ship yards and other corresponding industries.





Machine tools' technical specifications:


Mobile column structure of cutting head moving, stroke ≧ 6m
Manual or electrical steel tube chuck clamping
Bracket-type steel supporting manually or hydraulically
Dedicated intersecting line cutting system with inner ration unfolded intersecting cutting macro library
Plane pole-link bevel control structure with the range of swing angle of ± 60 °
Linear guide rail, ball bearing transmit the leading screw, rack and pinion assembled transmission system



Cutting technical specifications:


Cutting Steel Type: Round
Figures can be cut: variety of graphics by outspreading intersecting line, can be with bevel
Control Axis: 2-4-6-axis, bevel cutting with 6-axis
Cutting diameter: according to customer requirements
Cutting: plasma or gas
Pipe maximum length: ≤12m
Pipe clamping method: Chuck
Power-driven: high-precision AC servo + dedicated planetary reducer
Control System: a dedicated intersecting line cutting system: 6-axis controlled, with quantitative intersecting line cutting macro library



Technical Parameters:



Model CNC4-600
Pipe cutting diameter 60-600mm
Cutting mode Plasma only, flame only ,plasma and flame
Cutting speed 0-4000mm per minute
Plasma cut thickness Depend on current of plasma power source
Flame cut thickness 5-60mm
Groove angle 0-45°
Pipe Chuck 3-jaw chuck
Cutting length 5000mm (Can be as required)
Numberof Control Axes 2--6
Height range 0-150mm
Height adjuster mode Automatic(include 24DC geared motor)
Flame Ignition device Auto ignition
Accurate ±0.03mm
Power source 220V,380V/50HZ
Driving mode Stepper mode,dual driving
Operation system Starfire control system
LCD Display 7.0 inch Touch screen
Language version English/Chinese
File transmission USB transmission
Flame mode Gas source Acetylene/Propane with oxygen
Plasma mode Gas source 0.4-0.5MPa pressed air
Warranty 1 Year
Plasma Arc strike Untouched
Certificate CE ISO
Packing Plywood case or as required
