|Voltage:||110V/220V/380V||Effective Cutting Length:||6000mm / 12000mm|
|Cutting Mode:||Flame Or Plasma Cutting||Application:||Industrial Metal Cutting|
|Flame Cutting Thickness:||6-150mm||Plasma Cutting Thickness:||Depends On Plasma Source|
pipe plasma cutting machine,
plasma tube cutting machine
Industrial Metal CNC Pipe Cutting Machine 5 axis Plasma Automatic 110V/220V/380V
CNC automatic pipe profile cutting machine is special CNC equipment which is used for cutting metal pipe automatically. It can realize auto program and auto CNC nesting work for any complicated joint type of intertube,pipe,etc. and can cut any shapes at one time.This product is widely used for steel structure, shipbuilding,bridge and heavy machine industries. Suitable fo cutting cylinder branch, two or three -layer saddle cutting of the main pipe. It is suitable for large quantities of professional intersection pipe cutting. Cutting material: low carbon steel, stainless steel and non-ferrous metal, etc. machine can be designed according to the different needs of users.
Our self-developed CNC intersecting line pipe cutting machine is slinky in appearance, convenient in operation and high precision in cutting, which is widely used in petroleum, construction steel, ship yards and other corresponding industries.
Machine tools' technical specifications:
Mobile column structure of cutting head moving, stroke ≧ 6m
Manual or electrical steel tube chuck clamping
Bracket-type steel supporting manually or hydraulically
Dedicated intersecting line cutting system with inner ration unfolded intersecting cutting macro library
Plane pole-link bevel control structure with the range of swing angle of ± 60 °
Linear guide rail, ball bearing transmit the leading screw, rack and pinion assembled transmission system
Cutting technical specifications:
Cutting Steel Type: Round
Figures can be cut: variety of graphics by outspreading intersecting line, can be with bevel
Control Axis: 2-4-6-axis, bevel cutting with 6-axis
Cutting diameter: according to customer requirements
Cutting: plasma or gas
Pipe maximum length: ≤12m
Pipe clamping method: Chuck
Power-driven: high-precision AC servo + dedicated planetary reducer
Control System: a dedicated intersecting line cutting system: 6-axis controlled, with quantitative intersecting line cutting macro library
|Pipe cutting diameter||60-600mm|
|Cutting mode||Plasma only, flame only ,plasma and flame|
|Cutting speed||0-4000mm per minute|
|Plasma cut thickness||Depend on current of plasma power source|
|Flame cut thickness||5-60mm|
|Pipe Chuck||3-jaw chuck|
|Cutting length||5000mm (Can be as required)|
|Numberof Control Axes||2--6|
|Height adjuster mode||Automatic(include 24DC geared motor)|
|Flame Ignition device||Auto ignition|
|Driving mode||Stepper mode,dual driving|
|Operation system||Starfire control system|
|LCD Display||7.0 inch Touch screen|
|File transmission||USB transmission|
|Flame mode Gas source||Acetylene/Propane with oxygen|
|Plasma mode Gas source||0.4-0.5MPa pressed air|
|Plasma Arc strike||Untouched|
|Packing||Plywood case or as required|

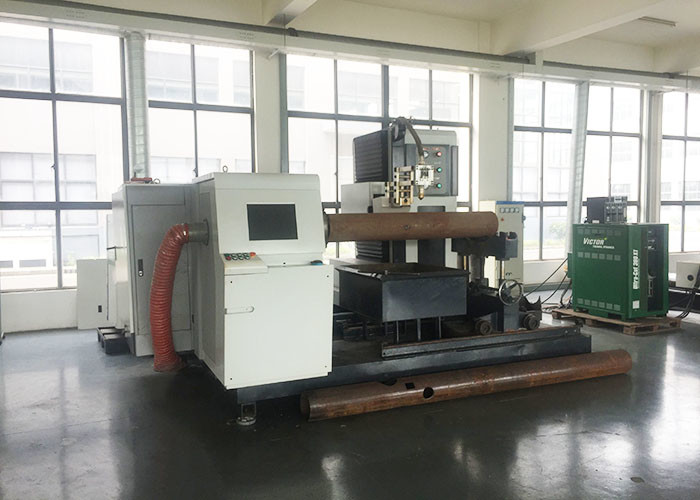

Machine In Using:
