Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC1-1530P
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
CNC System: |
Shanghai Fangling |

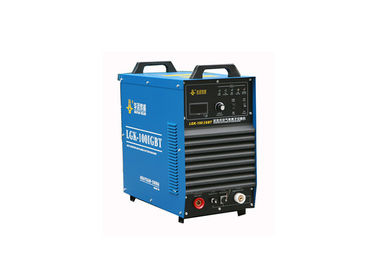

Plasma Source: |
USA Hypertherm Or China Huayuan |
Nesting Software: |
FastCAM Professional Version |
Motor Of Chuck: |
Panasonic 400W Servo Motor |
Warranty: |
1 Year,12months |
Color: |
Blue, Yellow, Red, Black |
Processing Materials: |
Iron, Steel Aluminum Sheets, Galvanized Sheets, Titanium Plates, Other Metal |
CNC System: |
Shanghai Fangling |
Plasma Source: |
USA Hypertherm Or China Huayuan |
Nesting Software: |
FastCAM Professional Version |
Motor Of Chuck: |
Panasonic 400W Servo Motor |
Warranty: |
1 Year,12months |
Color: |
Blue, Yellow, Red, Black |
Processing Materials: |
Iron, Steel Aluminum Sheets, Galvanized Sheets, Titanium Plates, Other Metal |

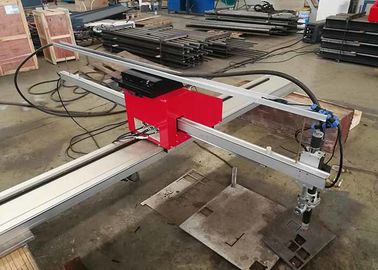

High Quality CNC Portable Metal Round Tubes and Square Pipes Plasma Cutting Machine
Technical Specification:
| Model: | CNC1-1530P |
| Power source: |
AC 220±10%VAC 50/60Hz |
| Cutting mode (Flame): |
O2/C3H8 or C2H2 |
|
Effective cutting range (mm): |
Not suitable for metal sheets |
|
Cutting thickness (Plasma): |
According to plasma power source |
|
Cutting thickness(Flame): |
6-160 mm (O2/C3H8 or C2H2) |
Main parts of machine:
1.Flame cutting torch High pressure trachea:
1) O.D.of the tube:30 mm
2) Balanced pressure structure design.
3) It adopts silver solder, which can effectively avoid leakage.
4) It is made of high quality forging brass.
2.Insultion board:
Used to Protect the Control system and Circuit.
3.START brand Driver:
1) Extra-low motor noise offers excellent quietness.
2) Anti-Resonance, provides optimum torque and nulls mid-range instability.
3) Self-test and Auto-configuration technology, offers optimum responses with different motors.
4.Cutting torch:
1) Flame cutting torch is fixed, plasma cutting torch is mobile type.
2) Flame torch and plasma torch could be changed very easily.
5.Cutting torch and lifting station
Use ball screw to driving, more precision, and more steady.
6.JIUSHENG brand power supply:
1) Protectiions: Short circuit/Overload/Over voltage/ Over temperature
2) Forced air cooling by built-in DC fan
3) Built-in cooling
4) Fan ON-OFF control
5) Built-in constant current limiting circuit
6) 100% full load burn-in test
Advantages:
1.Light weight, small size, easy to move, and set up.
2.Durable construction, strong cross beam, more rigid.
3.Better performance, high precision.
4.CNC control, supply Operation language, easy to operate.
5.Electric torch lifting, Arc voltage auto torch height control for plasma cutting.
6.Support both of flame cutting and plasma cutting, equipped with multitudinous plasma source.
7.Widely applied in maintain, construction, steel structure, shipbuilding industries.
8.The machine is equipped with FastCAM programming software, the software is easy to learn and operate.
9. Machine Color and Cutting area can be customized.
Operation steps:
①Drawing Pictures (CAD or other drawing software) ⇒ ②Nesting Software: FastCAM ⇒ ③Transfer Files ⇒ ④Cutting
Package and Shipping:

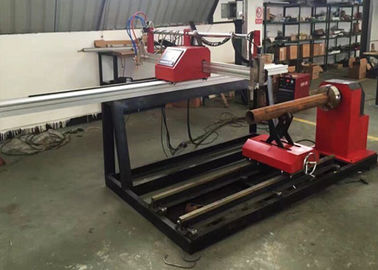

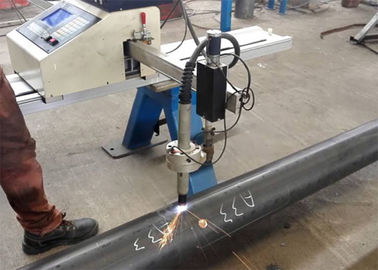

This kind machine used to cut 0mm to 160mm metal sheets and 40--300mm metal tubes, the metal could be iron, stainless steel, aluminum, copper, Titanium, tin and many other kinds metal. Widely used in trucks, trailers, motorcycles, pressure vessls, general machinery, steel structure, ship and so on.
