Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC4-1060P
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Transmission Style: |
Rack And Gear |
CNC System: |
Shanghai Fangling |
Motor Style: |
Step Motor Single Drive |
Cutting Modes: |
Plasma Cutting(with Plasma Generator) And Flame Cutting |
Numbers Of Pipe Supporter: |
2 Pieces |
Flame Auto Igniter: |
Optional |
Warranty: |
1 Year |
Transmission Style: |
Rack And Gear |
CNC System: |
Shanghai Fangling |
Motor Style: |
Step Motor Single Drive |
Cutting Modes: |
Plasma Cutting(with Plasma Generator) And Flame Cutting |
Numbers Of Pipe Supporter: |
2 Pieces |
Flame Auto Igniter: |
Optional |
Warranty: |
1 Year |

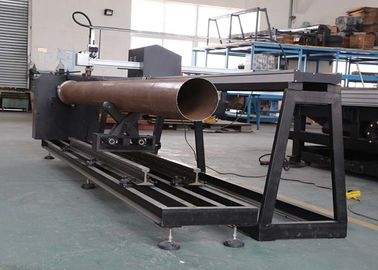

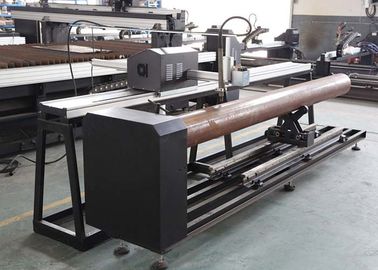

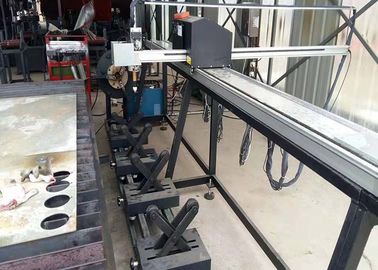

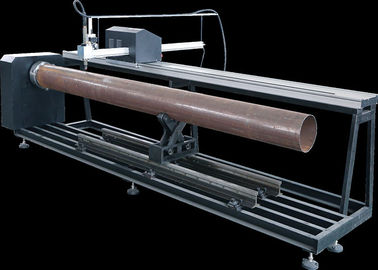

3 Axis CNC Intersecting Plasma Flame Pipe Cutting Machine with High-end Technical Program
Instructions:
1. Mainly applies to the thermal cutting of intersecting and top part of the different pipe systems.
2. Materials of the working piece: low carbon steel, (Attention: copper-nickel tubes and the stainless steel pipe should use plasma cutting.
3. Can cut ordinary steels (CNC flame/plasma cutting machine) and realize absolute flame/plasma steel cutting. CNC intersecting pipe cutting machines can realize various functions.
Axis Parameters:
| Axis | Linkage Axis |
| X-axis | Revolving of the Pipe |
| Y-axis | Horizontal Axis |
| Z-axis | Up-down Axis |
Working environment:
Temperature: -5~40 ℃;
Humidity: ≤90%;
Power supply: 220V±10% 50Hz
Products features:
1) Standard version not only can both flame cutting and plasma cutting, but also can cut both pipe and steel plate.
2) Using AC 3 phase high voltage step motor drive technology, the motors get more power but less nosiy.
3) Can make interesting pipe hole cutting in different directions and different diameters.
4) Can cut oblique section of the pipe.
5) Can cut branch intersecting pipe's end socket for main pipe.
6) Can cut square and slotted hole and all shapes on the pipe.
7) Can cut off the pipe.
8) Can cut dual bending ends for bending of the pipe after welding.
Transmission and cutting modes:
Transmission of the CNC cutting steel: Chuck type structure
Cutting mode: Plasma Cutting
THC mode: Electric Motion
Main parts of the machines:
| NAME | QUANTITY |
| Control System: | 1 set |
| Chuck Base: | 1 piece |
| Adjustable steel pipe body: | 2 sets |
| Parts of the head: | 1 set |
| Up base of the head: | 1 set |
| Down base of the head: | 1 set |
| Track: | 6.5 m |
| Automatic arc height control: | 1 set |
| Setting of the collision-proofing: | 1 set |
Main precision requirements:
The working piece should conform to the national standards.The positioning precision of the working length: 0.2mm/2000mm; Positioning precision of the bus bar: ≤±0.5mm; Tolerance of the space between pipe heads: ≤±0.5 mm.
1) Revolving drive motion
Driving System: Auxiliary drive of the precision gear box and the gear.
Revolving Speed: 0.1-25 r/min
Restoration Precision: ±0.3mm
2) Movements of the torch trolley
Driving System: Precision Gear Box (Domestic made); Transmission of the gear and track.
Effective Route: Same as the L1
Precision of the restoration: ±0.2mm
Working pieces:
Safety devices:
Collision-proofing device and limit switch.
Limit self-locking device in the software.
Emergency stop switch in the control box.
