Name: Self Aligning Pipe Welding Machine , Rotator Turning Roll Tank Welding Pipeline Welding Equipment
Brand: METALWORK MACHINERY (WUXI) CO.LTD
SKU: HGZ- series
Availability: InStock

Self Aligning Pipe Welding Machine , Rotator Turning Roll Tank Welding Pipeline Welding Equipment

1 set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Voltage: 380V 3-phase 50Hz Or Customized

Adjust Way: Automatic Adjustment

Roller Material: PU

Operation Way: Remote Hand Cotrol

Color: Blue, Yellow, Grey, Red Or Customized

Warranty: 1 Year

Highlight:

pipeline welding machines

pipeline welding equipment

Basic Infomation

Place of Origin: China

Brand Name: Metalwork

Certification: CE, ISO, CCC

Model Number: HGZ- series

Payment & Shipping Terms

Packaging Details: Mainframe naked in container, electrical control box in plywooden boxes

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 100 sets per month

Gallery

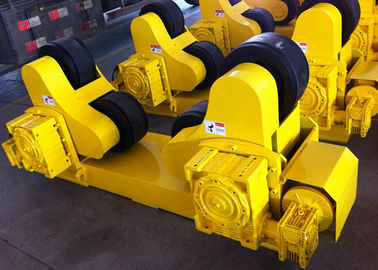

Self Aligning Pipe Welding Machine , Rotator Turning Roll Tank Welding Pipeline Welding Equipment

Product Description

HGZ Series Self-aligned Welding Rotator

Features:

Standard welding rotator consist of One drive unit & One idler unit.

Self adjustment of the open angle to suit different diameter of tanks.

Various loading capacity from 1 tons to 500tons for self aligned type.

Full PU or full steel wheel material to suit different kinds of tank material.

ABB, Schneider or Siemens electric parts adopted in our machine.

Double driving gear motors available for higher loading capacities.

Movable traversing system available for option.

Remote hand control box with functions, FWD turning , REV turning , Speed setting.

Welding rotator with CE certificates supported to European market.

Customized or non-standard available to customer's special requirements.

Drawing:

Technical Parameters:

Model			HGZ5	HGZ10	HGZ20	HGZ40	HGZ60	HGZ80	HGZ100	HGZ150	HGZ200	HGZ500
Maximum loading T			5	10	20	40	60	80	100	150	200	500
Suit diameter range			250 2300	320 2800	450 3500	600 4200	750 4800	850 5000	1000 5500	1200 6500	1500 8000	1800 8000
Roller size	Rubber roller mm	D1	250	300	350	400	450	500	500	550	550	600
	Rubber roller mm	W3	100	120	120	120	120	120	120	120	120	140
	Metallic roller mm	D2	244	294	344	394	444	494	494	540	540	590
	Metallic roller mm	W4	20	25	30	40	50	60	70	90	100	120
Linear speed m/h			6-60
Speed control			VFD
Motor power kW			0.75	1.1	1.5	3	4	4	5.5	5.5	7.5
Machine weight kg			1020	1500	2220	3000	4200	5500	7730	11000	14000	16000

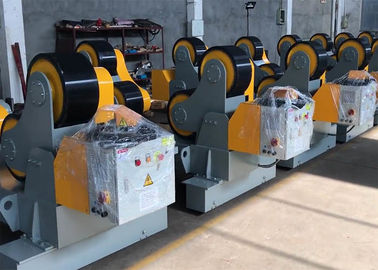

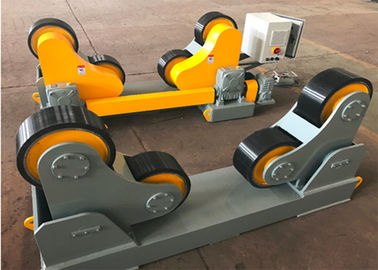

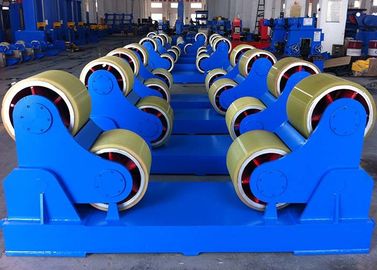

Detailed Images:

Self Aligning Pipe Welding Machine , Rotator Turning Roll Tank Welding Pipeline Welding Equipment 1

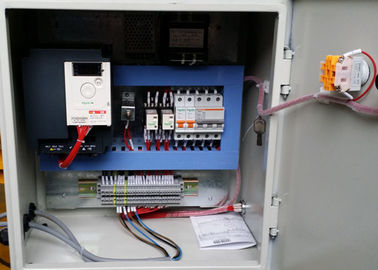

Optional Items:

Self Aligning Pipe Welding Machine , Rotator Turning Roll Tank Welding Pipeline Welding Equipment 2
