Head Tail Stock Pipe Welding Positioners For Special Workpiece Remote Hand Control
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: SHB- series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Mainframe naked in container, electrical control box in plywooden boxes
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Condition: New Weight: Depend
Usage: Welding Positioner For Vessel Tank Voltage: 3Ph, 380V, 50Hz
Control Way: Remote Hand Control Warranty: 1 Year
High Light:

pipeline welding machines

,

pipeline welding equipment

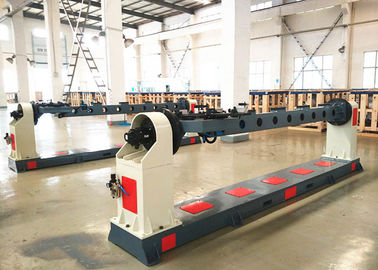

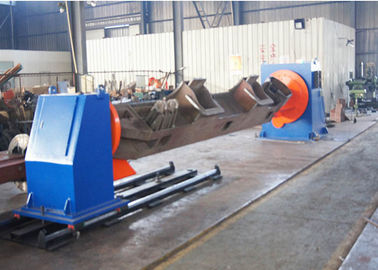

Head and Tail Stock Welding Positioner





The head and tail positioner is designed for the user of the workpiece to the actual situation of special welding positioner, double-column structure can lift two-axis (elevator, flip) split, tailstock movable positioner; by varying the lift bit, can welding in the best welding position, reduce labor intensity, saving auxiliary time, increasing labor productivity.





Features:



1. One head side is drive rotation in N*360 degree,another tail side is idler rotation.


2. Table diameter is 1200 mm for 3T capacity head and tail stock welding positioner.


3. For larger workpiece,we can do the table diameter around 2000mm according to the demands.


4. Idler tail side base frame with manual moving wheels for longer workpiece.


5. Head and tail stock welding positioner controlled by remote hand control and foot pedal switch.


6. Voltage: 380V 50/60Hz 3Phase or According to the request.





Technical Parameters:



Model SHB-10 SHB-20 SHB-30
Max loading weight (kg) ≤1000 ≤2000 ≤3000
Table Diameter 900 1000 1200
Rotation Power 1.1 KW 1.5 KW 3 KW
Rotation Speed 0.05~0.5 rpm
Moving type Tail side with manual moving wheels




































Application:


1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job





Head Tail Stock Pipe Welding Positioners For Special Workpiece Remote Hand Control 0



Head Tail Stock Pipe Welding Positioners For Special Workpiece Remote Hand Control 1
