Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls

Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls

  • Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls
  • Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls
  • Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls
  • Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls
  • Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls
Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls
Product Details:
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: HGK- series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Mainframe naked in container, electrical control box in plywooden boxes
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: 380V 3-phase 50Hz Or Customized Adjust Way: Adjustable

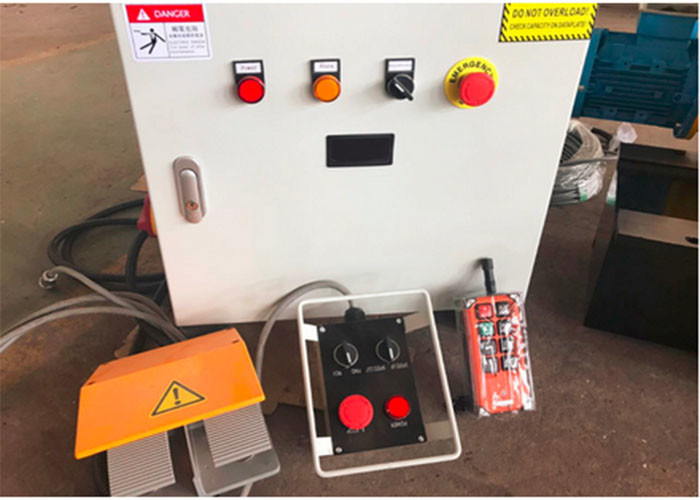

Roller Material: PU Operation Way: Remote Hand Cotrol
Color: Blue, Yellow, Grey, Red Or Customized Warranty: 1 Year
High Light:

pipeline welding machines

,

pipeline welding equipment



HGK Series Conventional Welding Rotator





This machine absorbs the abroad advanced manufacturing experience, extremely suitable for heavy work piece with high and stable strip cladding and narrow gap welding.



This welding rotator is similar with the general rotator, it drives the rollers and then drives the work-piece rotating. The roller of this rotator has large loading capacity, the two roller base can be moved by bolt holes to suitable for the work-piece with different diameter, which is convenient for adjusting.





Features:



  •  Adjustable of the open angle to suit different diameter of tanks.





  •  Various loading capacity from 1 tons to 500tons for self aligned type.



  •  Full PU or full steel wheel material to suit different kinds of tank material.

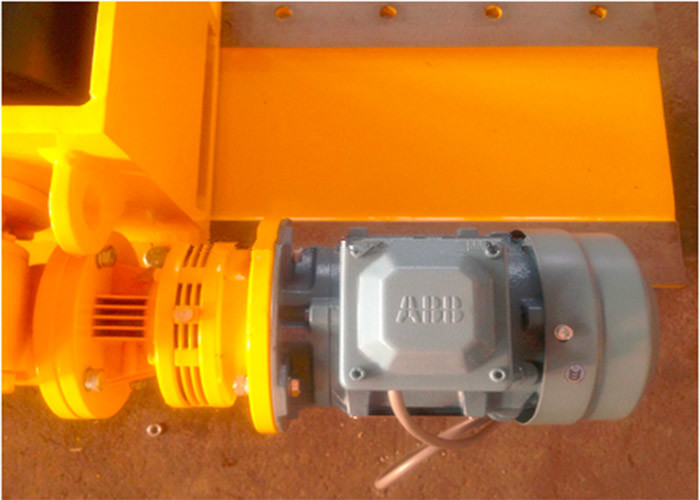

  •  ABB, Schneider or Siemens electric parts adopted in our machine.



  •  Double driving gear motors available for higher loading capacities.



  •  Movable traversing system available for option.



  •  Customized or non-standard available to customer's special requirements.





Technical Parameters:



Model

HGK3

HGK5

HGK20

HGK40

HGK60

HGK80

HGK100

HGK160

HGK250

HGK400

HGK500

Max loading T 3 5 20 40 60 80 100 160 250 400 500
Suit diameter range;

250~

1800

250~

2300

500~

3000

600~

4200

700~

5000

700~

5500

700~

6000

1000~

6000

1000~

7500

1000~

7500

1000~

8000

Rubber Roller D1 mm 200 250 350 400 450 500 550 - - - -
W3 mm 80 100 120 120 120 120 120 - - - -
Metallic roller D2 mm 190 240 340 394 444 490 538 620 700 800 800
W4 mm 16 20 45 60 70 70 100 220 260 300 300
Linear speed m/h 6-60
Speed Control VFD
Motor power kW 2×0.18 2×0.37 2×1.1 2×1.5 2×1.5 2×2.2 2×2.2 2×4 2×5.5 2×5.5 2×5.5
Machine weight kg 400 640 1450 2300 3860 4780 5800 8560 14330 17500 21000













Application:


1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job





Machine Details:

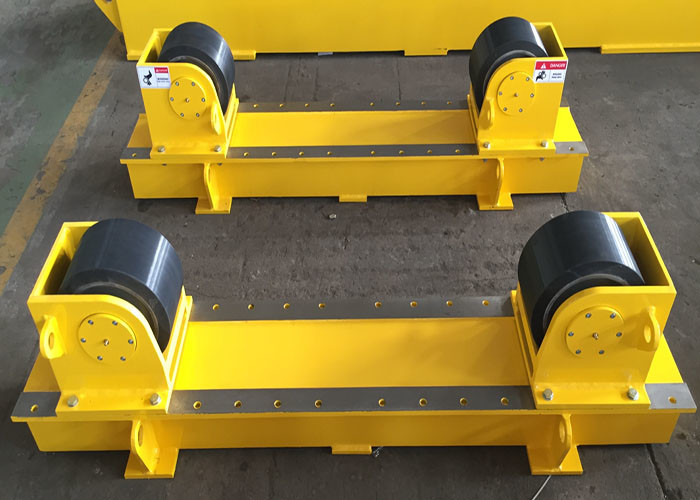

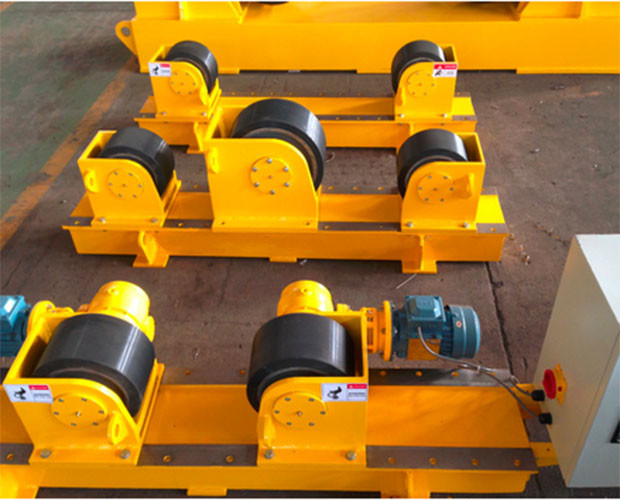

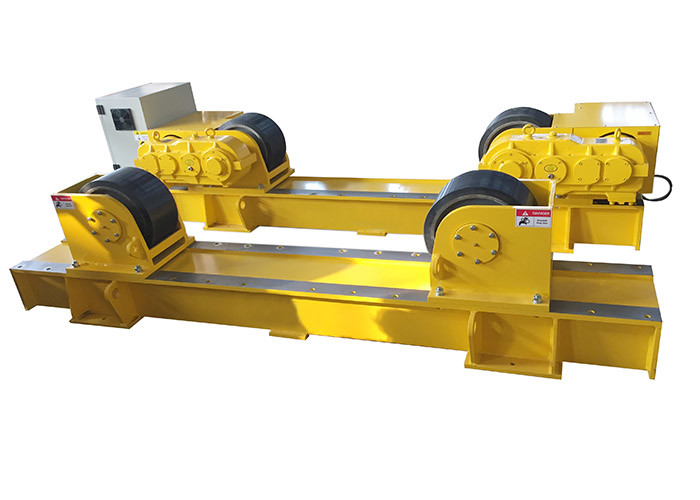

Auto Adjust Pipe Welding Equipment Conventional Rotator Pipe Turning Rolls 0
