| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | HGFK- series |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Mainframe naked in container, electrical control box in plywooden boxes |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Condition: | New | Weight: | Depend |
|---|---|---|---|

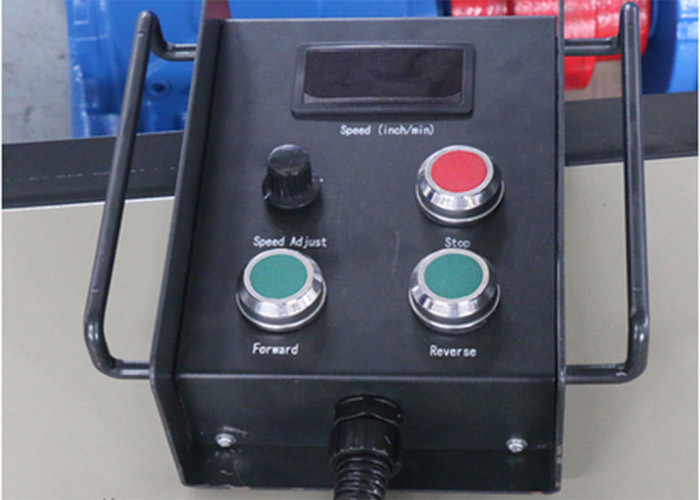

| Roller Material: | PU, Rubber Or Metal | Operation Way: | Remote Hand Cotrol |
| Wheel Linear Speed: | 6-60m/h | Way Of Setting: | AC Converter Stepless Speed Adjust Or Electro-magnetic Speed Adjust |
| High Light: | pipeline welding equipment,pipe welding tools equipment |
||

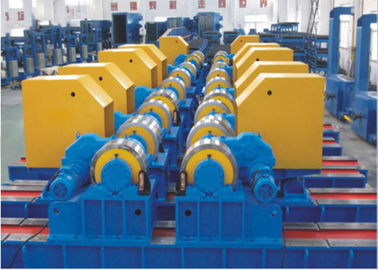

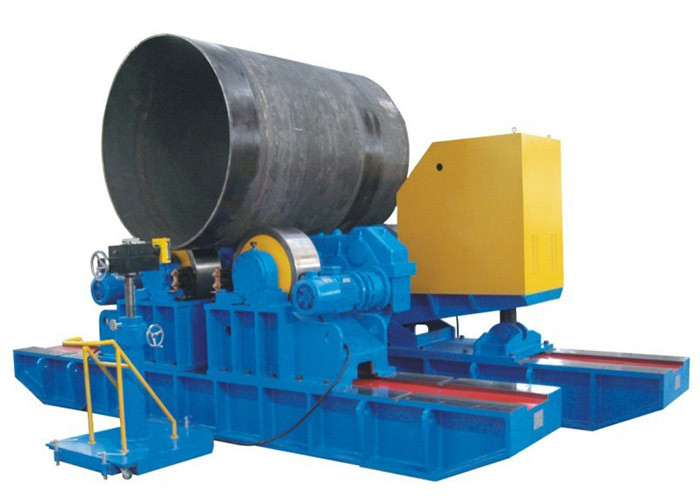

HGFK Series Fit-Up Welding Rotator
This machine absorbs the abroad advanced manufacturing experience, extremely suitable for heavy work piece with high and stable strip cladding and narrow gap welding.
This welding rotator is similar with the general rotator, it drives the rollers and then drives the work-piece rotating. The roller of this rotator has large loading capacity, the two roller base can be moved by bolt holes to suitable for the work-piece with different diameter, which is convenient for adjusting.
Features:
1. Driven roller frame and idler roller frame box-shaped base structure by good force, not easily deformed, can move freely on the track to adjust the distance between the roller frame, and can be easily fixed to the rail, positioning accuracy, easy to adjust.

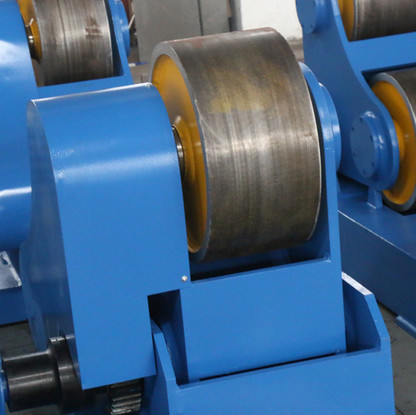

2. Roller material is high-strength steel castings ZG45, having a large strength and wear-resistant, long life and other characteristics, suitable for large and heavy work-piece.
3. It adopts double driving, the 2 rollers are driven by 2 sets of motor via reducer, with stepless speed adjust by frequency converter.
4. It adopts elevating type for anti-creep, by using one roller’s up and down work to adjust center distance of work piece to coincide with center line of rotator, thus to realize anti-creep purpose.
5. The sensor adopts Germany NOVO Company’s high precision displacement sensor with high precision, long service time and good linearity etc.
6. Electric control system equipped Siemens or ABB low voltage device, with high stability and strong anti-jamming capability.
7. It is equipped with detector which can test axial movement professionally and can calculate according to detection signal to control the creeping amount of work-piece. This device is easy to install and convenient to adjust.
Technical Parameters:
| Model |
HGFK 40 |
HGFK 60 |
HGFK 100 |
HGK 160 |
HGFK 250 |
HGFK 400 |
HGFK 500 |
HGFK 630 |
HGFK 800 |
HGFK 1000 |
HGFK 1250 |
HGFK 1600 |
||||||||||||
| Maximum loading | 40 | 60 | 100 | 160 | 250 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | ||||||||||||
| Working range | d mm | 600 | 750 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 | |||||||||||
| D mm | 4200 | 5000 | 6000 | 6000 | 7000 | 7500 | 8000 | 8500 | 9000 | 10000 | 15000 | 15000 | ||||||||||||
| Rubber roller | D1mm | 400 | 450 | 550 | - | - | - | - | - | - | - | - | - | |||||||||||
| W3mm | 120 | 120 | 120 | - | - | - | - | - | - | - | - | - | ||||||||||||
| Metallic roller | D2mm | 394 | 444 | 538 | 620 | 700 | 800 | 800 | 850 | 1000 | 1000 | 1000 | 1000 | |||||||||||
| W4mm | 60 | 70 | 100 | 220 | 260 | 300 | 300 | 350 | 350 | 350 | 400 | 400 | ||||||||||||
| Linear speed dm/h | 600～1200 | |||||||||||||||||||||||
| Speed adjusting way | VFD | |||||||||||||||||||||||
| Motor power kW | 2×1.5 | 2×1.5 | 2×2.2 | 2×3 | 2×4 | 2×5.5 | 2×5.5 | 2×7.5 | 2×7.5 | 2×11 | 2×15 | 2×18.5 | ||||||||||||
| Equipment weight kg | 2800 | 4200 | 6500 | 10500 | 14330 | 18500 | 22500 | 25000 | 32000 | 39600 | 60000 | 63000 | ||||||||||||

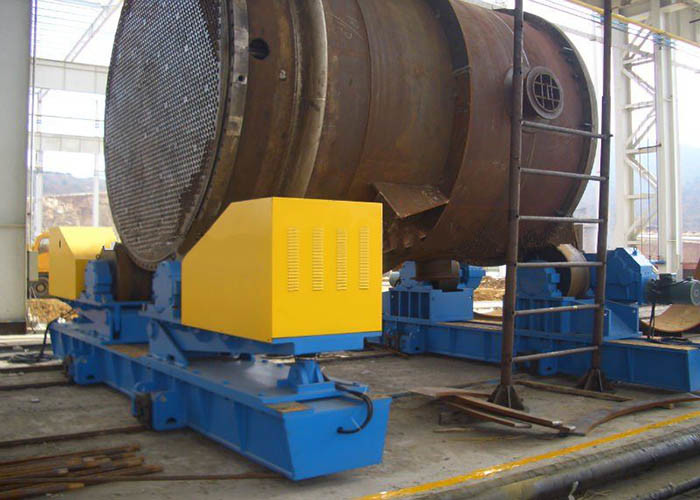

Application:
1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
