| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | MultiMIG500P |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden box |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per month |
| Pilot Arc Current: | 100-500A | Rated Input Voltage: | 3 Ph, 380V, 50Hz |
|---|---|---|---|
| Electrode Diameter: | 0.8-1.6mm | Warranty: | 1 Year |
| Color: | Green+black Or Customized | Usage: | Welding |
| High Light: | welding machine equipment,arc welding equipment |
||

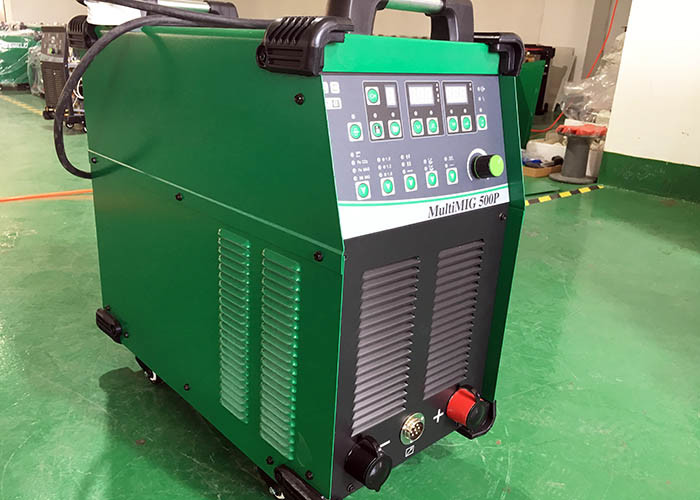

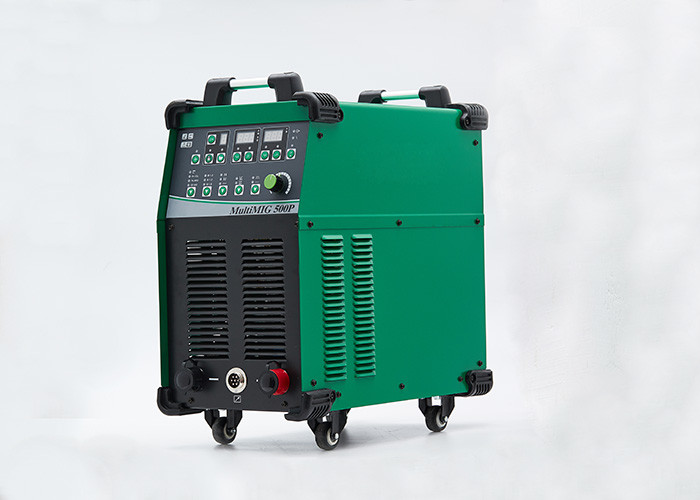

500A Digital Inverter IGBT CO2 Gas Shielded MIG / MAG Welding Machine
Pulse MIG/MAG welding using pulsed current to achieve drop shot transition, no spatter, deep penetration, fine grain, high weld strength, suitable for all-position welding, from 20 A to 500 A stable quality welding, welding performance far better than ordinary MIG/MAG welding, compared with traditional welder has the following characteristics: function-rich, product consistency, reliable performance, high precision control, fast dynamic response, excellent welding performance, authority welding expert database, security, energy efficiency, enabling network and automated welding.
1. Perfect ignition
2. Low-spatter and excellent well
3. Simple structure , convenient adjustment , fast reaction
4. Eonomcial and energy-saving .
Features:
1. Independent air duct design, be conductive to the protection of the internal welding device, adoid the dust.
2. The DSP digital control, stable output current, high adaptability for electricity network voltge.
3. Using IGBT inverter technology, stable welding process, forming well, current wide voltge range.
4. With preheating and fill arc crater function.
5. Suitable for welding stainless steel, ordinary steel plate.
6. With good effect of penetration, reduce disfortion.
7. With unified regulation, the expert database, can be used for all kinds of automatic welding.
8. Adopt advanced inverter technology, use import IGBT components, stable and smooth arc by constant current characteristics.
9. There are many kinds of protection functions, the working performance of the welder is steady and reliable, welding line is beautiful.
10. Suitable for welding carbon steel and galvanized sheet.
Application:
Widely apply to welding applications such as: outdoor installation maintenance, metal component, metal furniture, kitchen utensils, containers and vehicles service and so on.
Can be mainly used to weld low carbon steel, low alloy steel, galvanized plate and aluminum or weld stainless steel with mixed gas or flux-cored wires;
Can be widely used in automobiles, motorbikes, bicycles, containers, windows, doors, steel structures and industries of machinery and shipbuilding.
Technical Parameters:
| Model | MultiMIG500P |
| Rated Input Voltage (V) | 3Ph, 380 |
| Frequency (HZ) | 50 / 60 |
| Rated Input Current (A) | 36 |
| Output Current Range (A) | 100-500 |
| Rated Output Voltage (V) | 19-39 |
| Electrode Diameter(mm) | 0.8-1.6 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Grade | F |
| Shell Protection Grade | IP21S |
| Dimension(MM) | 620*330*650 |
| Weight(KG) | 38 |
| Base Metal: | Carbon Steel, Low-alloy Steel, galvanized sheet, Stainless Steel, Aluminum |
| Welding | CO2/MIG/MMA |

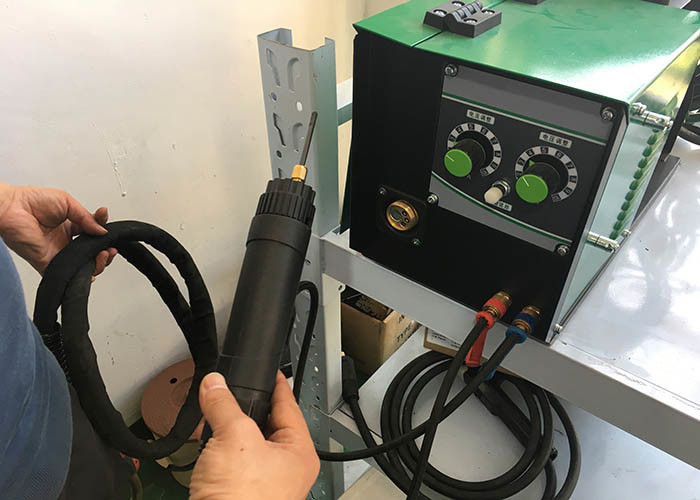

| Standard Accessories | 1.Torch MIG15 3M |
| 2.Earth Clamp Wire 16MM2 | |
| 3.Introduction Book | |
| 4.Hose Clamp*2 | |
| 5.Φ5 hexagon wrench | |
| 6.Quick Plug 35-50 |
Welding Samples:
Main Market:
North America, South America , Southeast Asia, Middle East, Africa, etc.
Our Services For full form of welder:
1. OEM and ODM sevice offered, Machine Color and Logo, also with shipment marks,
2. One year & three years warranty,
3. 24H Technical Answering Service,
4. 72H After Sales Solution Service,
5. CE and RoHS, EMC and UL certificate.
