| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | SkillCUT100 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden box |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per month |
| Rated Input Voltage: | 3 Ph, 380V, 50Hz | Output Current Range: | 30-100A |
|---|---|---|---|
| Motor Type: | DC Motor | Usage: | Cutting |
| Color: | Green + Black | Warranty: | 1 Year |
| High Light: | welder welding machine,arc welding equipment |
||

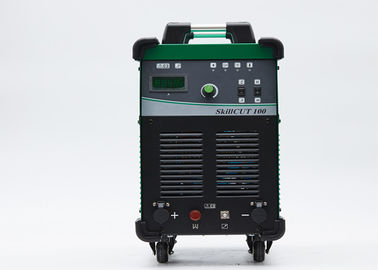

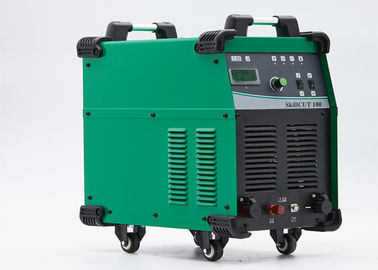

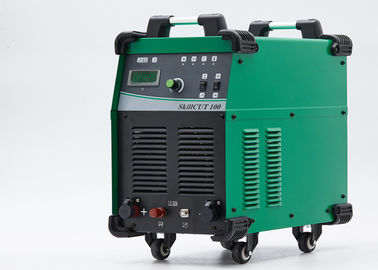

IGBT Type DC Inverter Air Plasma Cutting Machine SkillCUT100 for Metal Cutting
1. Advanced inverter technology,High cutting frequency.
2. With arc maintenance device, applicable to automatic cutting equipment.
3. Touch and untouch arc initiation.
4. Stable arc, long working time.

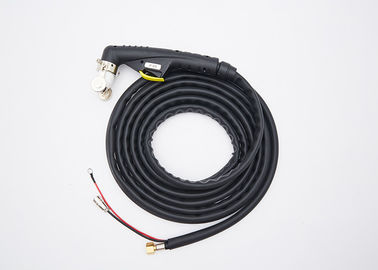

5. Complete accessories: cutting torch, welding cable,earth clamp, carton box, air copressed regulator.
6. Continuous Output Control – Focus the arc for different material thicknesses.
7. Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.
8. Cool Operation, Long Consumable Life- New electrode design save you money in the long run.
9. Cutting speed, narrow stitches, incision smooth, the workpiece changes,small shape, with significant energy saving effect.
10. High load sustainability, suitable for field operations.
11. Can be used as environmental protection and energy conservation.
12. Three air duct, waterproof, dustproof, wind erosion.
13. Resistance to power grid fluctuations, three-phase input of the plasma cutting machine in the network power 320 ~450V can work properly.
Technical Parameters:
| Model | SkillCUT 100 |
| Rated Input Voltage (V) | 3Ph, 380 |
| Frequency (HZ) | 50 / 60 |
| Rated Input Current (A) | 20 |
| Output Current Range (A) | 30-100 |
| Duty Cycle(%) | 35% |
| Insulation Grade | F |
| Shell Protection Grade | IP21S |
| Dimension(MM) | 570*310*560 |
| Weight(KG) | 34 |
Cutting Samples:
Main Market:
North America, South America , Southeast Asia, Middle East, Africa
Application:
Widely used on the plasma cutting of a variety of sheet materials such as carbon steel, stainless steel, aluminum, copper, etc.
FAQ:
Q1. Are you a factory?
A. Yes. We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
Q2. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you within one hour on working time. And you can aslo contact us by phone or skype.
Q3. What are your quality control procedures?
A. Wonderful group adheres to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment .As an added measure, all clients receive production samples for approval.
Q4. Are there any special requirements for OEM purchases?
A. Yes.We require proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q5: What is your warranty?
A: It is 12months. Usually we supply some spare parts for the customer repair with next order if there is any broken.
