Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: plastic bag, carton and wooden box customized package available
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Week
Application: |
Power, For Electrical Connection |
Material: |
Ed Copper |
Drawing: |
Acceptable |
Lamination: |
According To Customer's Requirements |
Type: |
Copper Expansion Joint |
Plating: |
Bare Or Tinned |
Application: |
Power, For Electrical Connection |
Material: |
Ed Copper |
Drawing: |
Acceptable |
Lamination: |
According To Customer's Requirements |
Type: |
Copper Expansion Joint |
Plating: |
Bare Or Tinned |
Flexible copper laminated connector
We produce various laminated connectors according to customer drawings and specifications. The parts are manufactured in high quality with approved materials and suitable processes: press-/diffusion welding; soldering/brazing; riveting.

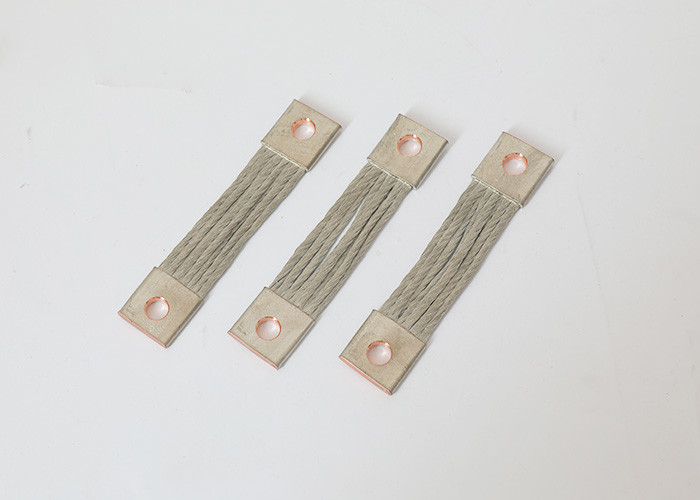

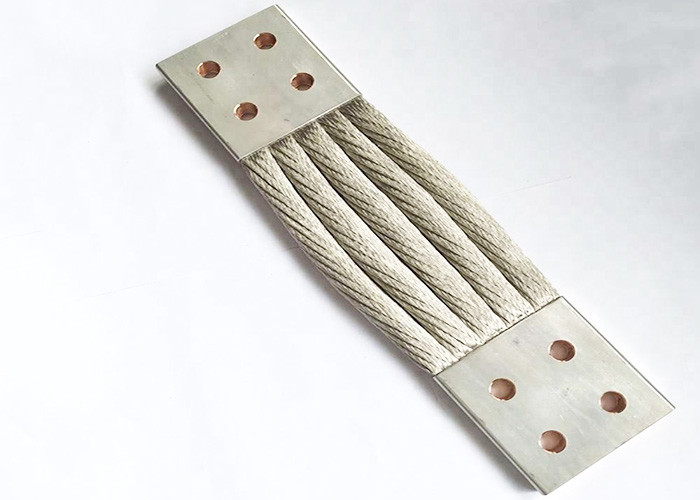

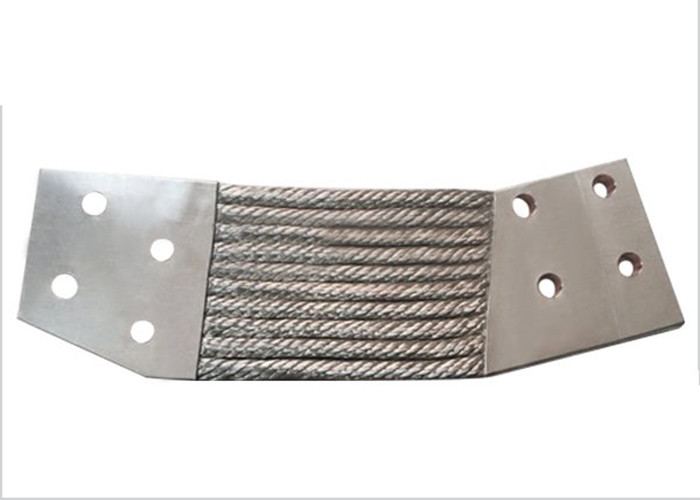

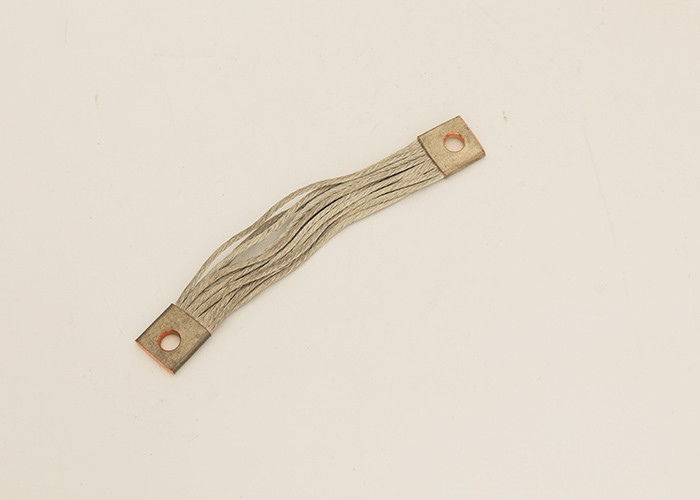

Braided copper, stranded copper soft connectors
Adopt bare copper wire or tinned braided copper wire (twisted wire), which is formed by cold pressing. The contact surface can be tinned or silver plated according to customers’ requirements.
Single wire diameter
0.20mm: Standard products.
0. 10mm: Can be processed according to customers’ requirements.
Technical Parameters
■ See the table below.
■ Width, length, cross-sectional area and drilling are not included in the table below and can be processed according to customer requirements.
■ The allowable current capacity is for reference. This value is related to the installation and use conditions of the soft connectors.
| Bare copper Wire | Tinned copper wire |
Section mm2
|
A mm |
B mm |
S mm |
L mm |
Holes Diameter mm |
End drilling |
Current capacity A |
|
CRS 100 |
CSS 100 |
100 | 40 | 40 | 5 | 200 | 13 | W1 | 480 |
|
CRS 150 |
CSS 150 |
150 | 40 | 40 | 7 | 250 | 13 | W1 | 590 |
|
CRS 200 |
CSS 200 |
200 | 50 | 50 | 7 | 350 | 13 | W1 | 760 |
|
CRS 250 |
CSS 250 |
250 | 50 | 50 | 9 | 350 | 13 | W1 | 910 |
|
CRS 300 |
CSS 300 |
300 | 100 | 50 | 10 | 400 | 13 | W2 | 950 |
|
CRS 400 |
CSS 400 |
400 | 100 | 50 | 12 | 400 | 13 | W2 | 1020 |
|
CRS 500 |
CSS 500 |
500 | 100 | 50 | 16 | 400 | 13 | W2 | 1300 |
|
CRS 600 |
CSS 600 |
600 | 100 | 60 | 16 | 400 | 13 | W2 | 1500 |
|
CRS 800 |
CSS 800 |
800 | 80 | 80 | 16 | 400 | 13 | W4 | 1700 |
|
CRS 1000 |
CSS 1000 |
1000 | 100 | 100 | 17 | 450 | 13 | W5 | 1900 |
|
CRS 1200 |
CSS 1200 |
1200 | 120 | 120 | 17 | 450 | 13 | W7 | 2150 |
|
CRS 1500 |
CSS 1500 |
1500 | According to customers’ requirements | ||||||
|
CRS 2000 |
CSS 2000 |
2000 | |||||||
