Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: plastic bag, carton and wooden box customized package available
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Week
Application: |
Power, For Electrical Connection |
Material: |
Ed Copper |
Drawing: |
Acceptable |
Lamination: |
According To Customer's Requirements |
Type: |
Copper Expansion Joint |
Plating: |
Bare Or Tinned |
Application: |
Power, For Electrical Connection |
Material: |
Ed Copper |
Drawing: |
Acceptable |
Lamination: |
According To Customer's Requirements |
Type: |
Copper Expansion Joint |
Plating: |
Bare Or Tinned |

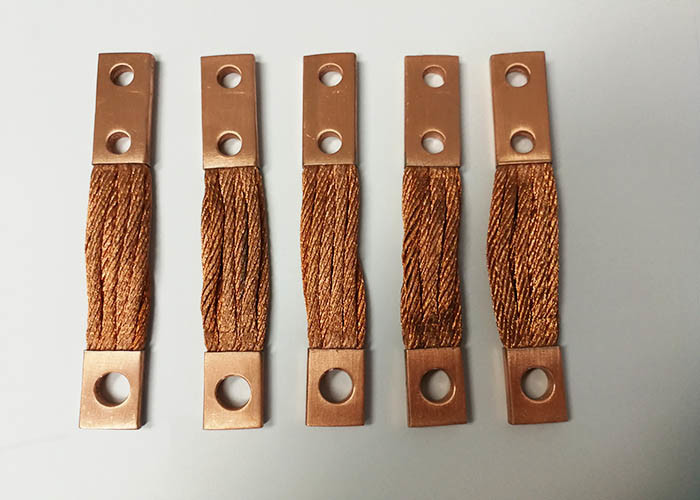

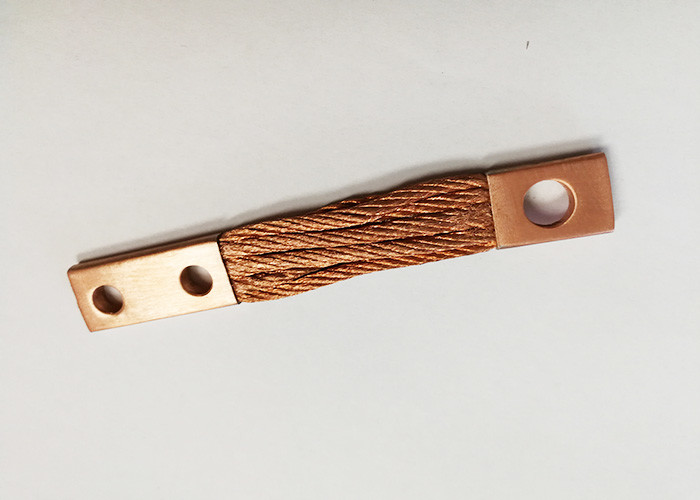

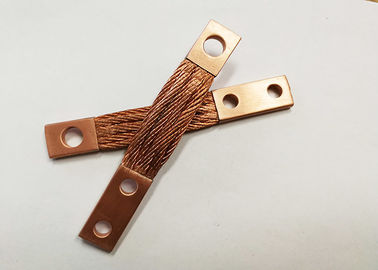

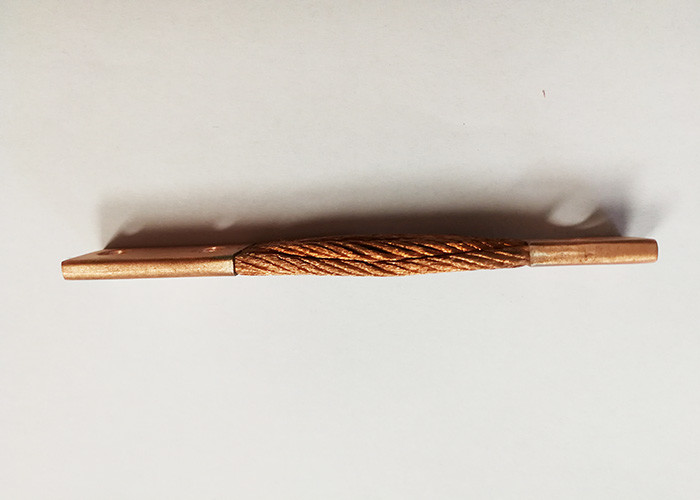

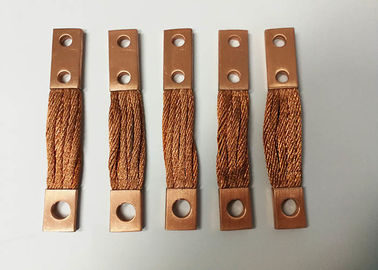

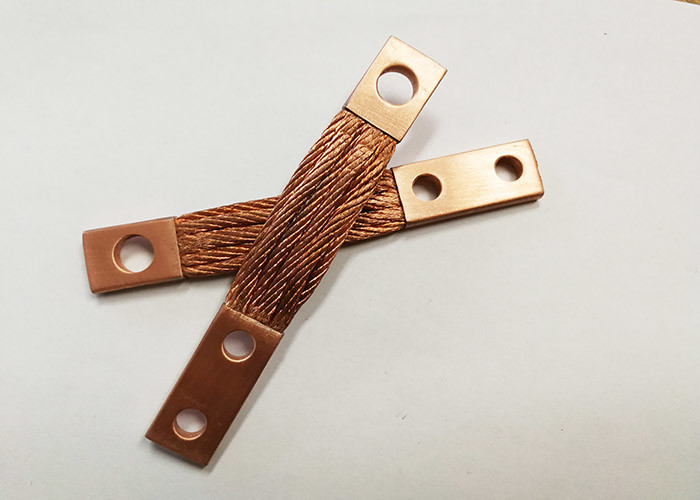

Flexible copper braid busbar
We produce various laminated connectors according to customer drawings and specifications. The parts are manufactured in high quality with approved materials and suitable processes: press-/diffusion welding; soldering/brazing; riveting.
Braided copper, stranded copper soft connectors
Adopt bare copper wire or tinned braided copper wire (twisted wire), which is formed by cold pressing. The contact surface can be tinned or silver plated according to customers’ requirements.
Single wire diameter
0.20mm: Standard products.
0. 10mm: Can be processed according to customers’ requirements.
Technical Parameters
■ See the table below.
■ Width, length, cross-sectional area and drilling are not included in the table below and can be processed according to customer requirements.
■ The allowable current capacity is for reference. This value is related to the installation and use conditions of the soft connectors.
| Bare copper Wire | Tinned copper wire |
Section mm2
|
A mm |
B mm |
S mm |
L mm |
Holes Diameter mm |
End drilling |
Current capacity A |
|
CRS 100 |
CSS 100 |
100 | 40 | 40 | 5 | 200 | 13 | W1 | 480 |
|
CRS 150 |
CSS 150 |
150 | 40 | 40 | 7 | 250 | 13 | W1 | 590 |
|
CRS 200 |
CSS 200 |
200 | 50 | 50 | 7 | 350 | 13 | W1 | 760 |
|
CRS 250 |
CSS 250 |
250 | 50 | 50 | 9 | 350 | 13 | W1 | 910 |
|
CRS 300 |
CSS 300 |
300 | 100 | 50 | 10 | 400 | 13 | W2 | 950 |
|
CRS 400 |
CSS 400 |
400 | 100 | 50 | 12 | 400 | 13 | W2 | 1020 |
|
CRS 500 |
CSS 500 |
500 | 100 | 50 | 16 | 400 | 13 | W2 | 1300 |
|
CRS 600 |
CSS 600 |
600 | 100 | 60 | 16 | 400 | 13 | W2 | 1500 |
|
CRS 800 |
CSS 800 |
800 | 80 | 80 | 16 | 400 | 13 | W4 | 1700 |
|
CRS 1000 |
CSS 1000 |
1000 | 100 | 100 | 17 | 450 | 13 | W5 | 1900 |
|
CRS 1200 |
CSS 1200 |
1200 | 120 | 120 | 17 | 450 | 13 | W7 | 2150 |
|
CRS 1500 |
CSS 1500 |
1500 | According to customers’ requirements | ||||||
|
CRS 2000 |
CSS 2000 |
2000 | |||||||
Company Profile:
There are a lot of facilities in our company, including CNC Cutting Machine, Automatic Welding machine, Robotics Welding and Cutting Station etc. While in completing the strict tolerance requirements of the customer. We have introduced advanced testing equipment to reduce unqualified products and win customers' trust with high quality products.
Our sales department we help and learn from each other, based on our proficiency in every facet of our products, we understand customers' demands deeply and solve problems promptly. We concentrate on one stop and one-package service. With the principle of customer service from design, sampling to production. We solve every customer concern and take care of every customer seriously, patiently and responsibly.
