Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: MultiMIG270
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Pilot Arc Current: |
50-270A |
Rated Input Voltage: |
3 Ph, 380V, 50Hz |
Rated Duty Cycle: |
60% |
Usage: |
Ideal For Wedling Low Carbon Steel And Galvanized Sheet |
Insulation Grade: |
IP21S |
Wire Diameter: |
0.8-1mm |
Pilot Arc Current: |
50-270A |
Rated Input Voltage: |
3 Ph, 380V, 50Hz |
Rated Duty Cycle: |
60% |
Usage: |
Ideal For Wedling Low Carbon Steel And Galvanized Sheet |
Insulation Grade: |
IP21S |
Wire Diameter: |
0.8-1mm |

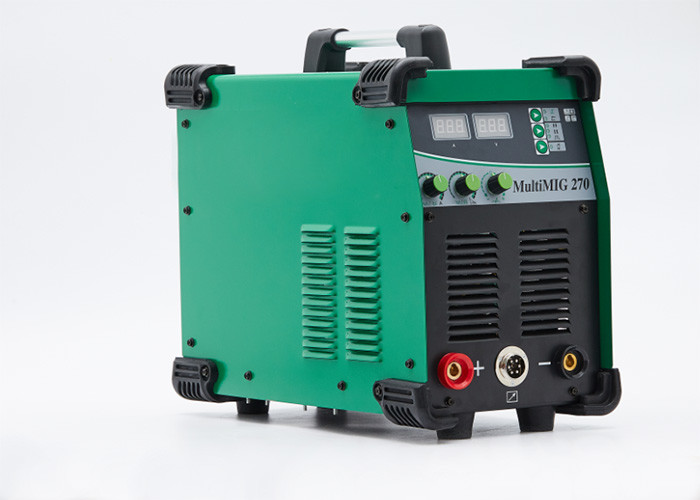

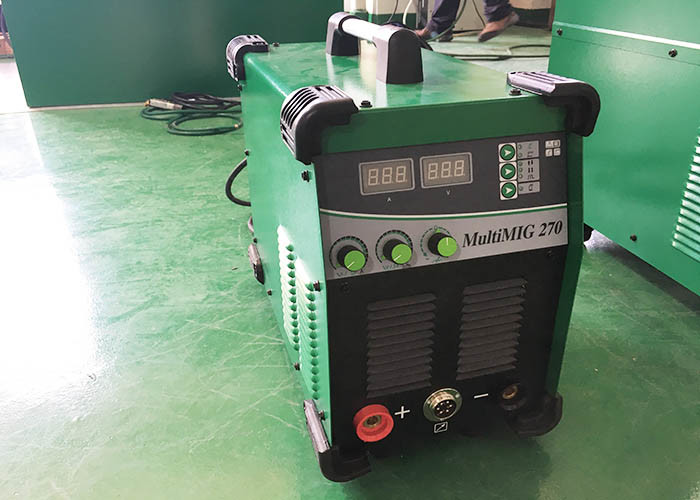

270A Digital Inverter IGBT CO2 Gas Shielded MIG / MAG Welding Machine
Features:
1. Machine has manual welding, CO2 welding and continuous spot welding functions.
2. With functions of current and voltage pre-setup functions, accurate and perceptual intuition.
3. Excellent and quick wire feeding spot welding.
4. Easy operation interface with professional icons, which is easy for operation.
5. Flashback time and slowly wire feeding speed, etc. functions can be adjusted.
6. The inductance regulation is obvious, the excellent welding experience for users.
7. Adopt advanced inverter technology, use import IGBT components, stable and smooth arc by constant current characteristics.
8. There are many kinds of protection functions, the working performance of the welder is steady and reliable, welding line is beautiful.
9. Suitable for welding carbon steel and galvanized sheet.
10. Widely apply to welding applications such as: outdoor installation maintenance, metal component, metal furniture, kitchen utensils, containers and vehicles service and so on.
Technical Parameters:
| Model | MultiMIG270 |
| Rated Input Voltage (V) | 3Ph, 380 |
| Frequency (HZ) | 50 / 60 |
| Rated Input Current (A) | 15 |
| Output Current Range (A) | 50-270 |
| Rated Output Voltage (V) | 16.5-27.5 |
| Steel Thickness(mm) | 0.6-7 |
| Electrode Diameter(mm) | 0.8-1 |
| Diameter of the Wire Board (mm) | 270 |
| Wire Feed Speed | 3-25S |
| Pre-Flow | 0-2S |
| Power Factor | 0.93 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Grade | F |
| Shell Protection Grade | IP21S |
| Dimension(MM) | 510*270*445 |
| Weight(KG) | 22 |
| Base Metal: | Carbon Steel, Low-alloy Steel, galvanized sheet |
| Welding | CO2/MIG/MMA |

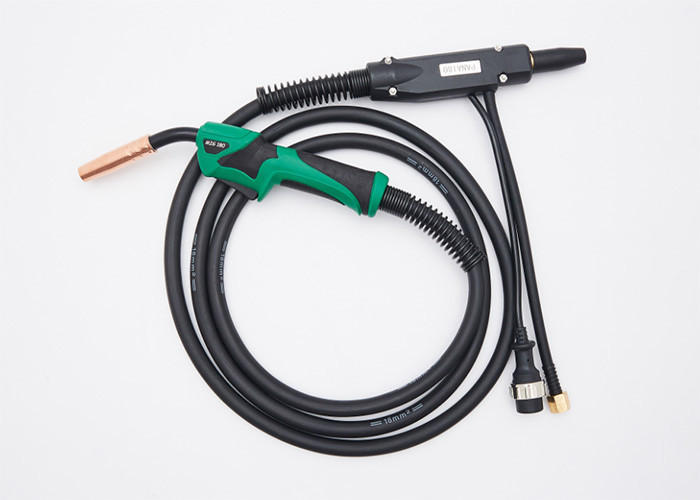

| Standard Accessories | 1.Torch MIG15 3M |
| 2.Earth Clamp Wire 16MM2 | |
| 3.Introduction Book | |
| 4.Hose Clamp*2 | |
| 5.Φ5 hexagon wrench | |
| 6.Quick Plug 35-50 |
Main Market:
North America, South America , Southeast Asia, Middle East, Africa
Supply:
1. OEM and ODMsevice offered, Machine Color
2. One Year Warranty.
3. Technical Support.
4. CE and CCC certificate
Strict Quality Control:
1.Our quality starts from the elemets. All parts are full new,refusing the used one .Our machine mainboard is made by ourself all the parts was in strictly controling.
2.Our quality controling systems are stopping the defect before packing; So we arrange at least 5 QC stations, In an assembling line; then every tiny part in the charge of one worker, even every screws should be marked.
3.The scientific production management 6S , prevent the mistakes by human being at the upper limits.
4. Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability.
