Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: plastic bag, carton and wooden box customized package available
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Week
Application: |
Power, For Electrical Connection |
Material: |
Pure Copper |
Design: |
As Sample, Drawing Or Photo |
Lamination: |
According To Customer's Requirements |
Shape: |
Tape Strip Coil Roll |
Plating: |
Bare Or Tinned |
Application: |
Power, For Electrical Connection |
Material: |
Pure Copper |
Design: |
As Sample, Drawing Or Photo |
Lamination: |
According To Customer's Requirements |
Shape: |
Tape Strip Coil Roll |
Plating: |
Bare Or Tinned |

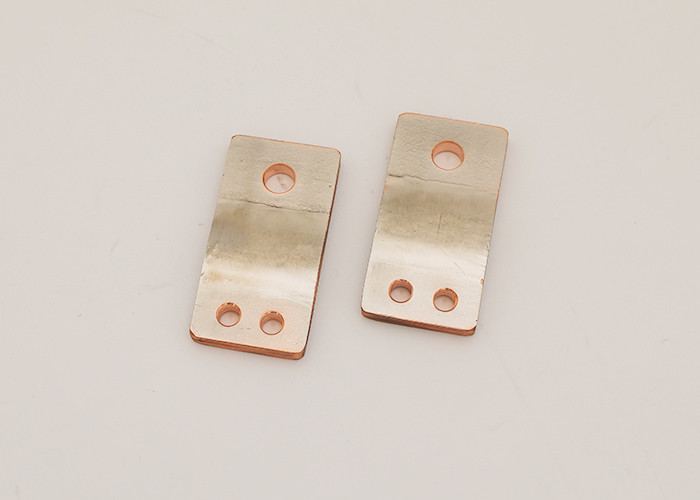

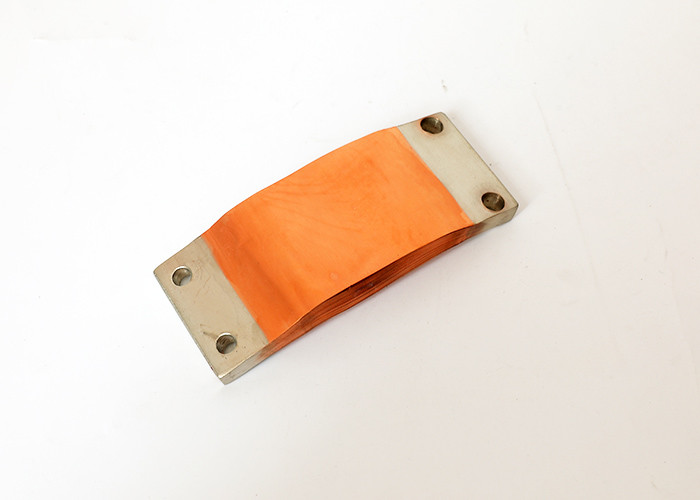

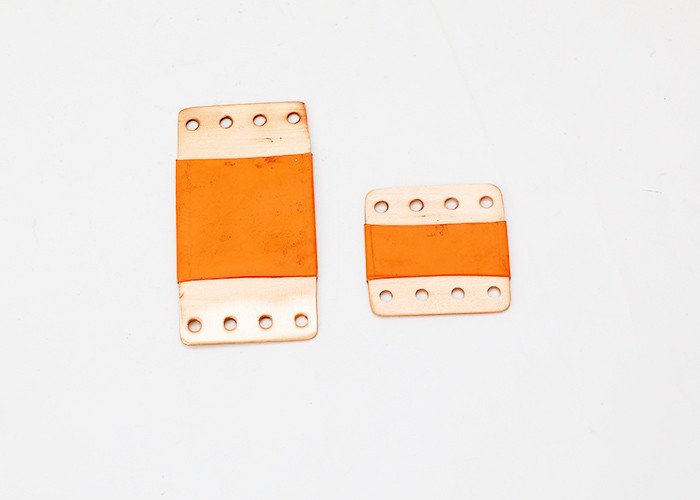

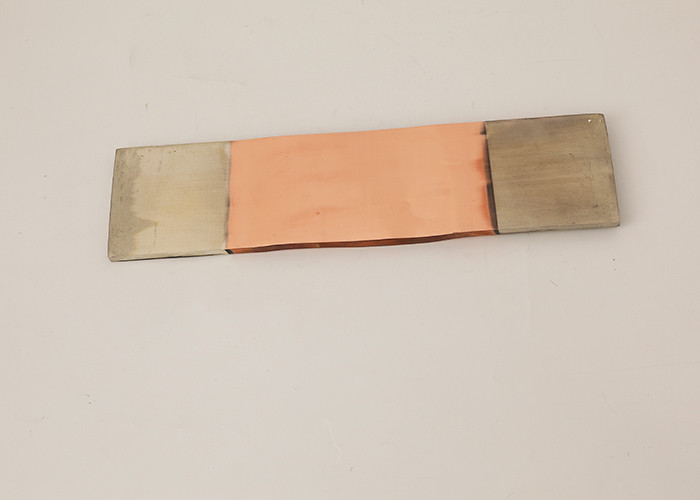

Highly Flexible Copper Foil Soft Connectors For Electrical Transformers Parts
Specifications:
Electrical transformers parts
Improve conductivity
Adjust the installation error of equipment
Convenient to test and service
Technology: Adopt pressure welding, brazing, butt-welding and other mature technologies manufacturing.
Advantages: The products have good flexibility,heat dissipation,resistance to bending, strong conductivity, convenient to install,in addition, the flattening terminal and bright overall ensure the beautiful outlook of the products.
| Item | copper foil busbar expansion joint |
| Brand Name | Metalwork |
| Material | Pure copper |
| Surface Treatment | Tinned or not tinned |
| Size | Customization |
| Application | Electric connection |
| MOQ | 1 piece |
| Port | Shanghai |
| Packing |
Plastic bag Carton Wooden case or as customers’ requirements |
| ED copper |
Section |
A |
B |
S |
L |
H |
Holes Diameter |
End drilling |
Current capacity |
|
PWR |
200 | 50 | 40 | 5 | 180 | 40 | 13 | W1 | 600 |
|
PWR |
200 | 50 | 40 | 5 | 230 | 40 | 13 | W1 | 800 |
|
PWR |
320 | 50 | 40 | 8 | 230 | 43 | 13 | W1 | 800 |
|
PWR |
400 | 50 | 40 | 10 | 230 | 45 | 13 | W1 | 900 |
|
PWR |
250 | 60 | 50 | 5 | 250 | 45 | 13 | W1 | 700 |
|
PWR |
400 | 60 | 50 | 8 | 250 | 48 | 13 | W1 | 950 |
|
PWR |
500 | 60 | 50 | 10 | 250 | 50 | 13 | W1 | 1100 |
|
PWR |
480 | 90 | 60 | 8 | 300 | 70 | 13 | W2 | 1100 |
|
PWR |
600 | 90 | 60 | 10 | 300 | 70 | 13 | W2 | 1200 |
|
PWR |
640 | 90 | 60 | 8 | 300 | 70 | 13 | W4 | 1350 |
|
PWR |
800 | 90 | 60 | 10 | 300 | 70 | 13 | W4 | 1500 |
|
PWR |
960 | 90 | 60 | 12 | 300 | 70 | 13 | W4 | 1700 |
|
PWR |
800 | 110 | 100 | 8 | 300 | 80 | 13 | W5 | 1550 |
| PWR 1000/350/100 | 1000 | 110 | 100 | 10 | 350 | 80 | 13 | W5 | 1800 |
| PWR 1200/350/100 | 1200 | 110 | 100 | 12 | 350 | 80 | 13 | W5 | 1900 |
| PWR 1200/400/120 | 1200 | 130 | 120 | 10 | 400 | 80 | 13 | W7 | 2000 |
| PWR 1440/400/120 | 1440 | 130 | 120 | 12 | 400 | 80 | 13 | W7 | 2200 |
Remark: dimensions not shown in the data table will be made according to customer requirements.
