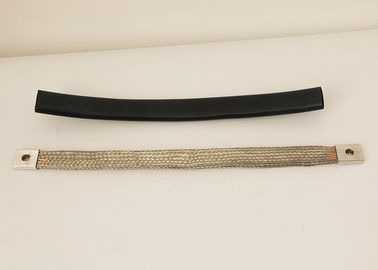

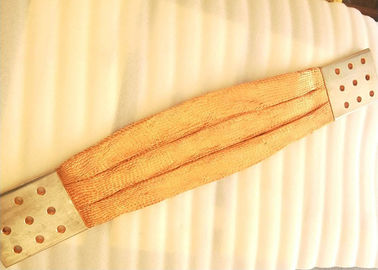

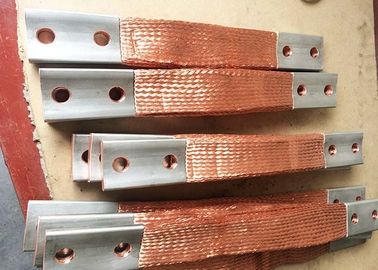

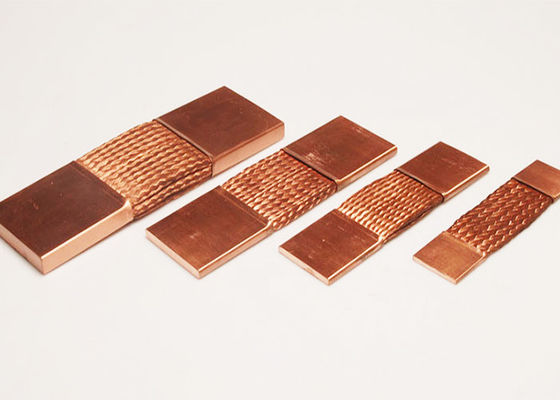

Big current customized size copper braid flexible connector for busway
We produce various laminated connectors according to customer drawings and specifications. The parts are manufactured in high quality with approved materials and suitable processes: press-/diffusion welding; soldering/brazing; riveting.
If need customized. Pls contact us.
Size: width*length*thickness
Copper braid flexible connector Current Ratings
| 100sqmm Power Shunt = 400amps |
| 240sqmm Power Shunt = 650amps |
| 300sqmm Power Shunt = 760amps |
| 500sqmm Power Shunt = 1100amps,600sqmm Power Shunt = 1250amps |
Wire diameters: 0.1mm, 0.15mm, 0.20mm.
Technology: Adopt pressure welding, brazing,butt-welding and other mature technologies manufacturing.
Advantages: The products have good flexibility,heat dissipation,resistance to bending, strong conductivity, convenient to install,in addition, the flattening terminal and bright overall ensure the beautiful outlook of the products.
Construction and application
Our highly flexible braided copper tapes consist of annealed uncoated or tinned copper wires. The ends of the cable have seamless contact areas which have been pressed on under extreme pressure (not soldered). By using this production method material of same analysis and same conductivity (E-Cu tubing and stranded wire)is being connected without using foreign materials like tin or welding additions. This creates a flexible component with very low resistance. Upon request, the current cables can also be insulated with PVC/silicone or another insulating material. For use in galvanising equipment, we also provide liquid resistant versions. We produce customer specific versions to plan or drawing on short notice and inexpensively. The values shown on the next page refer to individual cables and are independent standard values. They are manufactured as flat rolled tubes. The construction of the braids are so selected that a maximum of flexibility and a optimal finishing is guaranteed.
| Bare copper Wire | Tinned copper wire |
Section mm2
|
A mm |
B mm |
S mm |
L mm |
Holes Diameter mm |
End drilling |
Current capacity A |
|
CRS 100 |
CSS 100 |
100 | 40 | 40 | 5 | 200 | 13 | W1 | 480 |
|
CRS 150 |
CSS 150 |
150 | 40 | 40 | 7 | 250 | 13 | W1 | 590 |
|
CRS 200 |
CSS 200 |
200 | 50 | 50 | 7 | 350 | 13 | W1 | 760 |
|
CRS 250 |
CSS 250 |
250 | 50 | 50 | 9 | 350 | 13 | W1 | 910 |
|
CRS 300 |
CSS 300 |
300 | 100 | 50 | 10 | 400 | 13 | W2 | 950 |
|
CRS 400 |
CSS 400 |
400 | 100 | 50 | 12 | 400 | 13 | W2 | 1020 |
|
CRS 500 |
CSS 500 |
500 | 100 | 50 | 16 | 400 | 13 | W2 | 1300 |
|
CRS 600 |
CSS 600 |
600 | 100 | 60 | 16 | 400 | 13 | W2 | 1500 |
|
CRS 800 |
CSS 800 |
800 | 80 | 80 | 16 | 400 | 13 | W4 | 1700 |
|
CRS 1000 |
CSS 1000 |
1000 | 100 | 100 | 17 | 450 | 13 | W5 | 1900 |
|
CRS 1200 |
CSS 1200 |
1200 | 120 | 120 | 17 | 450 | 13 | W7 | 2150 |
|
CRS 1500 |
CSS 1500 |
1500 | According to customers’ requirements | ||||||
|
CRS 2000 |
CSS 2000 |
2000 | |||||||
Advantage:
1. High-speed automatic wire braiding machine with wire breakage protection for braiding wires of various metals, such as copper, stainless steel and aluminum.
2. Raw material production workshop, environmentally friendly and high-speed.
3. The big family of Metalwork undertake to manufacture good-quality flexible copper connectors.
4. Metalwork has the professional laboratory and capacity to conduct various tests, including salt spray test, tensile strength test,elongation test, tempature rise test, voltage withstand test and electrical conductivity test etc,.
