| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | MultiMIG500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden box |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per month |
| Pilot Arc Current: | 100-500A | Rated Input Voltage: | 3 Ph, 380V, 50Hz |
|---|---|---|---|
| Electrode Diameter: | 0.8-1.6mm | Warranty: | 1 Year |
| Color: | Green+black Or Customized | Condition: | New |
| High Light: | welding machine equipment,arc welding equipment |
||

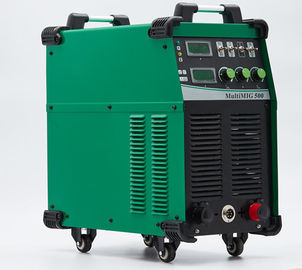

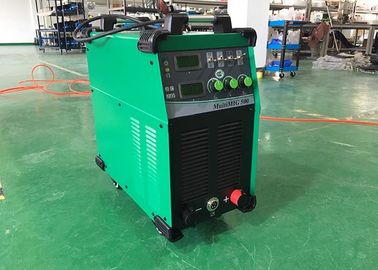

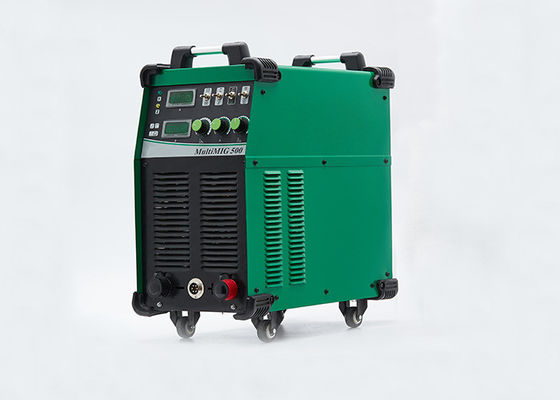

500A Digital Inverter IGBT CO2 Gas Shielded MIG / MAG Welding Machine
1. Perfect ignition
2. Low-spatter and excellent well
3. Simple structure , convenient adjustment , fast reaction
4. Eonomcial and energy-saving .
Features:
* IGBT inverter technology, small and light.
* Adjustable voltage and current, widely adjustment range, high duty cycle rate.
* Soft switch and passive power factor correction technology, with high power factor and efficiency.
* Waveform control technology, excellent weld, low spatter welding and high welding deposition efficiency.
* Perfect ignition and the next is easier thanks to eliminating droplet functionality when liftarc.
* Full digital control panel and friendly human-compute r interface,which can be adjusted conveniently.
* Synergic/separate adjustment mode to meet different using habit.
* Spot welding is available.
* Welding current/arc voltage can be set in advance.
Application:
Can be mainly used to weld low carbon steel, low alloy steel and galvanized plate or weld stainless steel with mixed gas or flux-cored wires;
Can be widely used in automobiles, motorbikes, bicycles, containers, windows, doors, steel structures and industries of machinery and shipbuilding.
Technical Parameters:
| Model | MultiMIG500 |
| Rated Input Voltage (V) | 3Ph, 380 |
| Frequency (HZ) | 50 / 60 |
| Rated Input Current (A) | 36 |
| Output Current Range (A) | 100-500 |
| Rated Output Voltage (V) | 19-39 |
| Electrode Diameter(mm) | 0.8-1.6 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Grade | F |
| Shell Protection Grade | IP21S |
| Dimension(MM) | 620*330*650 |
| Weight(KG) | 46 |
| Base Metal: | Carbon Steel, Low-alloy Steel, galvanized sheet |
| Welding | CO2/MIG/MMA |

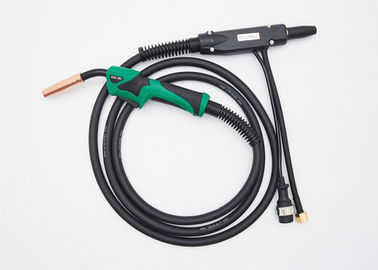

| Standard Accessories | 1.Torch MIG15 3M |
| 2.Earth Clamp Wire 16MM2 | |
| 3.Introduction Book | |
| 4.Hose Clamp*2 | |
| 5.Φ5 hexagon wrench | |
| 6.Quick Plug 35-50 |
1. Aluminum alloy thick plate MIG welding
2. Aluminum alloy MIG welding
3. Gas shielded welding in vertical position
4. Brass plate MIG braze welding
5. Flux-cored wire fillet welding
6. Flux-cored wire for tube plate welding
7. Galvanized plate MIG braze welding
8. MAG welding
9. Hrizontal welding
Main Market:
North America, South America , Southeast Asia, Middle East, Africa, etc.
Our Services For full form of welder:
1. OEM and ODM sevice offered, Machine Color and Logo, also with shipment marks,
2. One year & three years warranty,
3. 24H Technical Answering Service,
4. 72H After Sales Solution Service,
5. CE and RoHS, EMC and UL certificate.
Strict Quality Control:
A). IQC for The Raw Material
1). Components Tested
2). EDXRF Spectrometer
B). QC Control for Mass Production
C). Machine Adjusted During Production
D). Machine Tested to Meet Customer’s Requirement
1). Constant Temperature Tested
2). Dropping Tested
3). Moisture Tested
4). Rainy Tested
5). Vibration Tested
E). Finished Machine Tested Before Shipment
F). Packaging and Belt
