Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: MultiMIG350P
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Pilot Arc Current: |
80-350A |
Rated Input Voltage: |
3 Ph, 380V, 50Hz |
Usage: |
Ideal For Wedling Stainless Steel And Aluminum |
Shell Protection Grade: |
IP21S |
Electrode Diameter: |
0.8-1.2mm |
Warranty: |
1 Year |
Pilot Arc Current: |
80-350A |
Rated Input Voltage: |
3 Ph, 380V, 50Hz |
Usage: |
Ideal For Wedling Stainless Steel And Aluminum |
Shell Protection Grade: |
IP21S |
Electrode Diameter: |
0.8-1.2mm |
Warranty: |
1 Year |

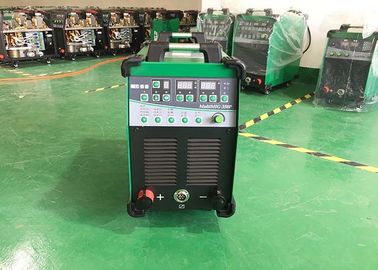

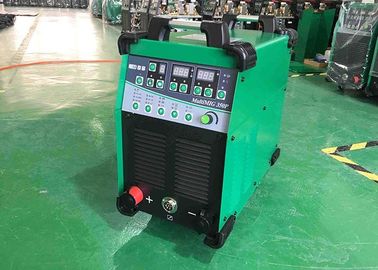

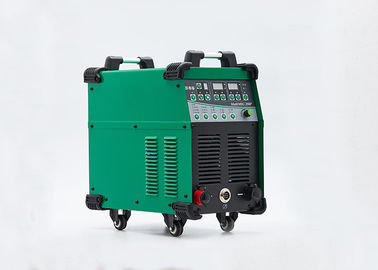

350A Digital Pulse Inverter IGBT CO2 Gas Shielded MIG / MAG Welding Machine
Introduction of mig mag welding machine:
MIG welding,scilicet metal inert-gas welding, using meltable wire as electrode, it can weld almost all metals, especially suitable for welding aluminum and aluminum alloy, copper and copper alloys and stainless steel etc.
Buying guide of mig mag welding machine:
When selecting welding machine,you should consider below factors:
Welding material,welding current,input voltage,welding thickness,rated duty cycle.
Features:
1. DSP digital control,high adaptability for electricity network.
2. Invert IGBT technology,stable and excellent welding performance.
3. More sutiable for Sheet welding stainless steel,pure aluminium and all kinds of aluminium alloy material.
4. Excellent weld,less defornation.
5. Synergic adjustment,with expert datebase to cooperate with all sorts of automatic welding machines.
6. Multi-process,optional function of MMA/MIG/MAG/PULSE MIG/Double Pulse MIG etc.
Technical Parameters:
| Model | MultiMIG350P |
| Rated Input Voltage (V) | 3Ph, 380 |
| Frequency (HZ) | 50 / 60 |
| Rated Input Current (A) | 21.6 |
| Output Current Range (A) | 80-350 |
| Rated Output Voltage (V) | 18-31.5 |
| Electrode Diameter(mm) | 0.8-1.2 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Grade | F |
| Shell Protection Grade | IP21S |
| Dimension(MM) | 570*310*560 |
| Weight(KG) | 26 |
| Base Metal: | Carbon Steel, Low-alloy Steel, Galvanized Sheet, Stainless Steel, Aluminum |
| Welding | CO2/MIG/MMA |
| Standard Accessories | 1.Torch MIG15 3M |
| 2.Earth Clamp Wire 16MM2 | |
| 3.Introduction Book | |
| 4.Hose Clamp*2 | |
| 5.Φ5 hexagon wrench | |
| 6.Quick Plug 35-50 |
Application of mig mag welding machine
1. Suitable material & thickness: common low carbon steel, stainless steel, plate thickness ≥ 0.7mm. Aluminum , aluminum and magnesium alloy, plate thickness ≥ 3.0mm.
Suitable position of welding: flate, overhead, horizontal, vertical and all-round position.
2. Suitable for wire /rod: ø 0.8- ø 1.6 solid steel welding wire, ø 1.0- ø 1.2 stainless steel welding wire, ø 1.2- ø 1.6 aluminum and aluminum&magnesium alloy welding wire. Aluminum welding wire must adopts teflon wire-guide tube(ø 1.2- ø 1.6) and special contact tube for aliminum welding.
Main Market:
North America, South America , Southeast Asia, Middle East, Africa
Application:
Can be mainly used to weld low carbon steel, low alloy steel and galvanized plate or weld stainless steel with mixed gas or flux-cored wires;
Can be widely used in automobiles, motorbikes, bicycles, containers, windows, doors, steel structures and industries of machinery and shipbuilding.
