| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | MultiTIG400 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywooden box |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per month |
| Rated Input Voltage: | 3 Ph, 380V, 50Hz | Pilot Arc Current: | 10-400A |
|---|---|---|---|
| Motor Type: | DC Motor | Usage: | Welding |
| Color: | Green + Black | Warranty: | 1 Year |
| High Light: | welder welding machine,arc welding equipment |
||

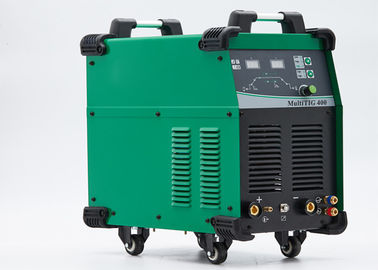

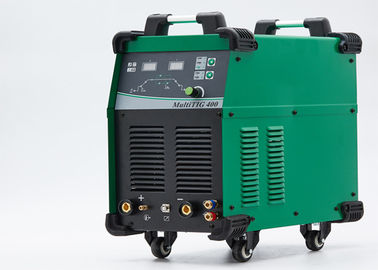

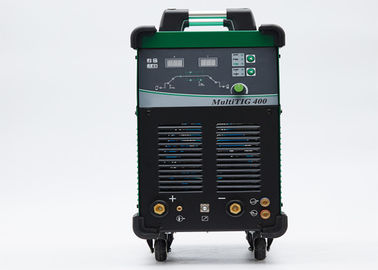

400A Digital DC Pulsed Inverter IGBT TIG Welding Machine
1). New European Design.
2). German technology for professinal purpose.
3). High-end components with three years warranty.
4). Suitable for welding alimimum, mild steel, stainless steel, copper & thin alloy.
1). Intelligent Pulse TIG.
2). TIG DC Welding.
3). IGBT Technology, MCU (Micro Controller Unit) Control System, Easy for HF Ignition.
4). Multi-Remote Control Function.
5). Intelligent Spot Welding.
6). High Current Output.
7). High Duty cycle.
8). Adjustable arc force, hot start & automatic anti stick control for greater control and ease of use for MMA welding.
9). Lift TIG and HF start modes for versatility when welding around sensitive electronic equipment.
10). Electronic HF TIG arc ignition system for contamination free and easy arc starting with low EMF interference.
11). Dual digital display meters for accurate pre setting and feedback of welding parameters & output.
12). High quality & over specified electronic components for durability & reliability
13). Good for use With Long Supply Cables.
14). Robust design: metal housing to withstand tough environmental conditions.
Technical Parameters:
| Model | MultiTIG 400 |
| Rated Input Voltage (V) | 3Ph, 380 |
| Frequency (HZ) | 50 / 60 |
| Rated Input Current (A) | 21.6 |
| Output Current Range (A) | 10-400 |
| Duty Cycle(%) | 60% |
| Efficiency(%) | 85 |
| Insulation Grade | F |
| Shell Protection Grade | IP21S |
| Dimension(MM) | 570*310*560 |
| Weight(KG) | 30 |
Main Market:
North America, South America , Southeast Asia, Middle East, Africa
Application:
Suitable for all-round welding of the stainless steel ,carton steel ,copper ,titanium sheet ,etc.
FAQ:
Q1. Are you a factory?

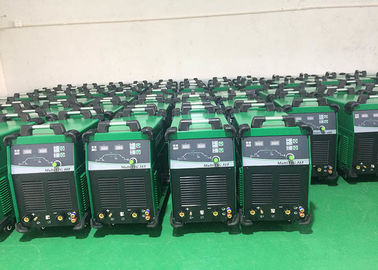

A. Yes. We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
Q2. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you within one hour on working time. And you can aslo contact us by phone or skype.
Q3. What are your quality control procedures?
A. Wonderful group adheres to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment .As an added measure, all clients receive production samples for approval.
Q4. Are there any special requirements for OEM purchases?
A. Yes.We require proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
Q5: What is your warranty?
A: It is 12months. Usually we supply some spare parts for the customer repair with next order if there is any broken.
