Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: plastic bag, carton and wooden box customized package available
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 1000 Piece/Pieces per Week
Application: |
Power, For Electrical Connection |
Material: |
Pure Copper |
Design: |
As Sample, Drawing Or Photo |
Lamination: |
According To Customer's Requirements |
Shape: |
Tape Strip Coil Roll |
Plating: |
Bare Or Tinned |
Application: |
Power, For Electrical Connection |
Material: |
Pure Copper |
Design: |
As Sample, Drawing Or Photo |
Lamination: |
According To Customer's Requirements |
Shape: |
Tape Strip Coil Roll |
Plating: |
Bare Or Tinned |

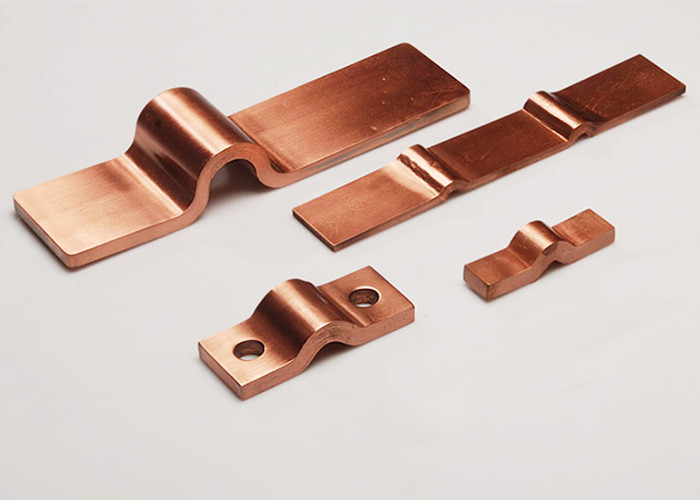

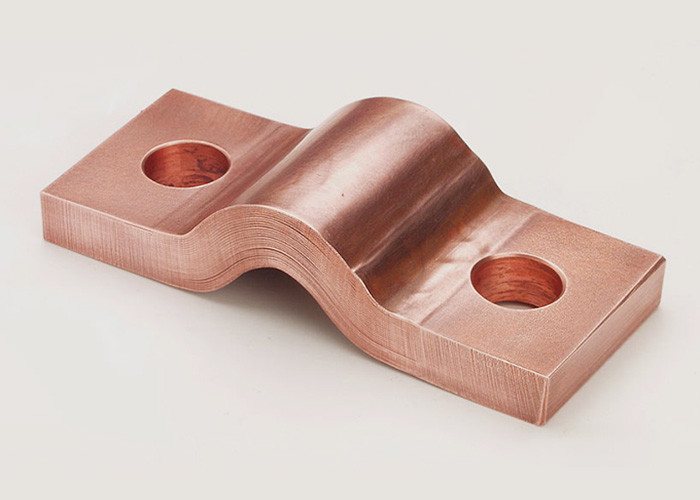

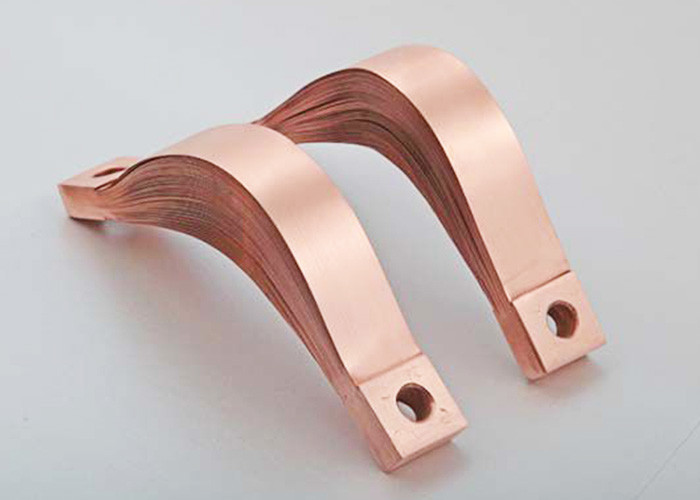

Bare Copper Wire 99.99% Busbar Connector Laminated Copper Flexible Jumper
Laminated and Flexible Copper are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material.
The process assures minimum resistance and helps in increasing products' service life as well as bringing a reduction in downtime. Further, these also come with superior mechanical & electrical properties at high temperatures.

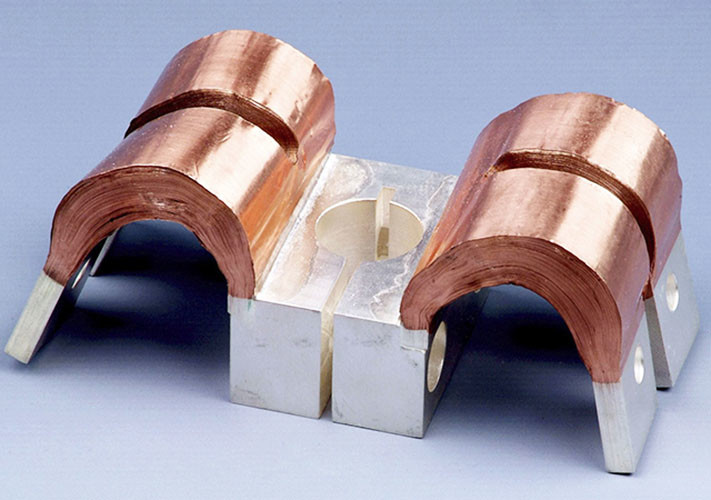

A wide range of flexible components for high current transmission. Our different production processes enable the manufacturing of highly flexible braids, ropes and ready assembled cables as well as welded connectors. All articles are manufactured in coordination with you specified applications. From the smallest ground or earthing tapes up to high current cables with 6000mm²conductor cross section almost all conceivable applications are covered. Whether in air-cooled or water-cooled designs, we can offer you the right components and solutions.
| ED copper |
Section |
A |
B |
S |
L |
H |
Holes Diameter |
End drilling |
Current capacity |
|
PWR |
200 | 50 | 40 | 5 | 180 | 40 | 13 | W1 | 600 |
|
PWR |
200 | 50 | 40 | 5 | 230 | 40 | 13 | W1 | 800 |
|
PWR |
320 | 50 | 40 | 8 | 230 | 43 | 13 | W1 | 800 |
|
PWR |
400 | 50 | 40 | 10 | 230 | 45 | 13 | W1 | 900 |
|
PWR |
250 | 60 | 50 | 5 | 250 | 45 | 13 | W1 | 700 |
|
PWR |
400 | 60 | 50 | 8 | 250 | 48 | 13 | W1 | 950 |
|
PWR |
500 | 60 | 50 | 10 | 250 | 50 | 13 | W1 | 1100 |
|
PWR |
480 | 90 | 60 | 8 | 300 | 70 | 13 | W2 | 1100 |
|
PWR |
600 | 90 | 60 | 10 | 300 | 70 | 13 | W2 | 1200 |
|
PWR |
640 | 90 | 60 | 8 | 300 | 70 | 13 | W4 | 1350 |
|
PWR |
800 | 90 | 60 | 10 | 300 | 70 | 13 | W4 | 1500 |
|
PWR |
960 | 90 | 60 | 12 | 300 | 70 | 13 | W4 | 1700 |
|
PWR |
800 | 110 | 100 | 8 | 300 | 80 | 13 | W5 | 1550 |
| PWR 1000/350/100 | 1000 | 110 | 100 | 10 | 350 | 80 | 13 | W5 | 1800 |
| PWR 1200/350/100 | 1200 | 110 | 100 | 12 | 350 | 80 | 13 | W5 | 1900 |
| PWR 1200/400/120 | 1200 | 130 | 120 | 10 | 400 | 80 | 13 | W7 | 2000 |
| PWR 1440/400/120 | 1440 | 130 | 120 | 12 | 400 | 80 | 13 | W7 | 2200 |
Remark: dimensions not shown in the data table will be made according to customer requirements.
