| Place of Origin: | China |
| Brand Name: | Metalwork |
| Certification: | CE, ISO, CCC |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plastic bag, carton and wooden box customized package available |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Piece/Pieces per Week |
| Application: | Power, For Electrical Connection | Material: | Ed Copper |
|---|---|---|---|
| Drawing: | Acceptable | Lamination: | According To Customer's Requirements |
| Type: | Copper Expansion Joint | Plating: | Bare Or Tinned |
| High Light: | flexible braided connectors,flexible copper busbar |
||
Highly Flexible Copper Bar Connectors For Electrical Transformers Accessories
Electrical transformers parts
Improve conductivity
Adjust the installation error of equipment
Convenient to test and service
Flexible connectors
A wide range of flexible components for high current transmission.
Our different production processes enable the manufacturing of highly flexible braids, ropes and ready assembled cables as well as welded connectors. All articles are manufactured in coordination with you specified applications. From the smallest ground or earthing tapes up to high current cables with 6000mm²conductor cross section almost all conceivable applications are covered. Whether in air-cooled or water-cooled designs, we can offer you the right components and solutions.

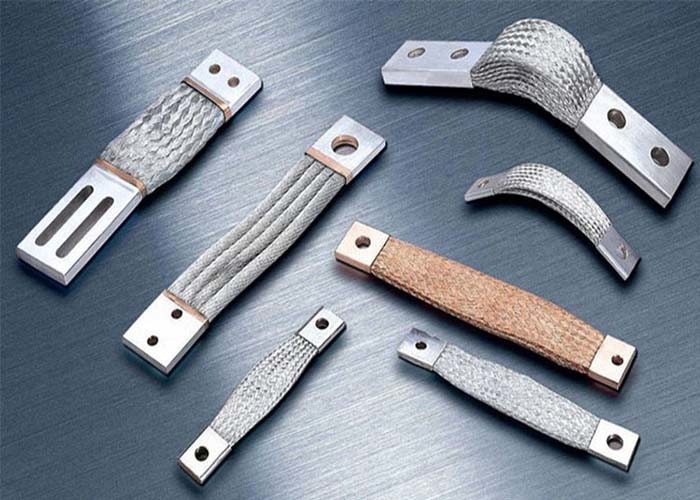

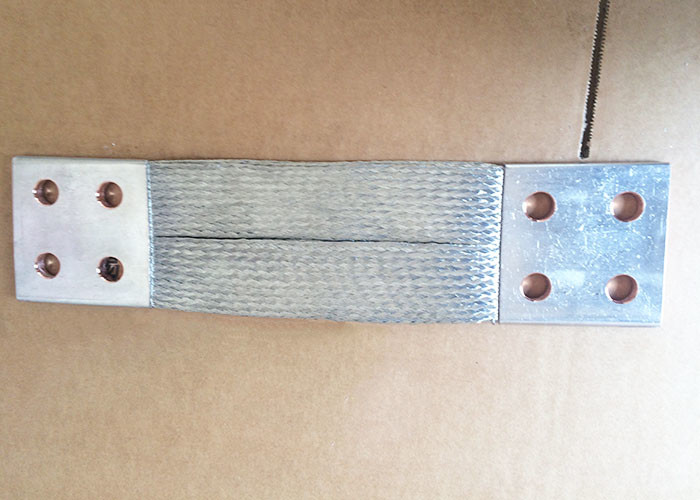

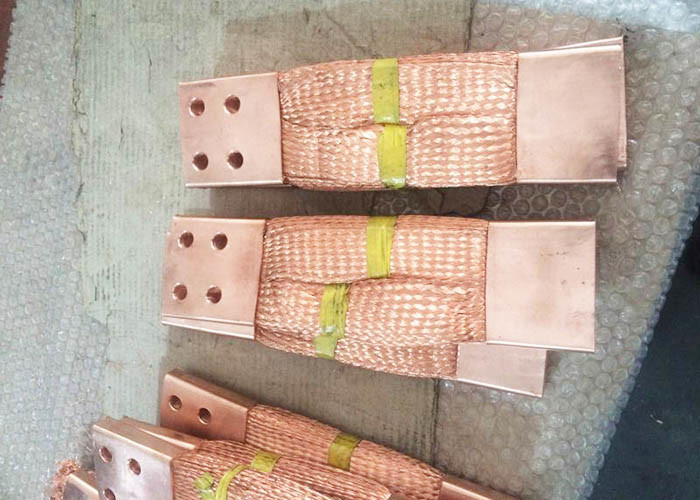

Braided copper, stranded copper soft connectors
Adopt bare copper wire or tinned braided copper wire (twisted wire), which is formed by cold pressing. The contact surface can be tinned or silver plated according to customers’ requirements.
Single wire diameter
0.20mm: Standard products.
0. 10mm: Can be processed according to customers’ requirements.
Technical Parameters
■ See the table below.
■ Width, length, cross-sectional area and drilling are not included in the table below and can be processed according to customer requirements.
■ The allowable current capacity is for reference. This value is related to the installation and use conditions of the soft connectors.
| Bare copper Wire | Tinned copper wire |
Section |
A |
B |
S |
L |
Holes Diameter |
End drilling |
Current capacity |
|
CRS |
CSS |
100 | 40 | 40 | 5 | 200 | 13 | W1 | 480 |
|
CRS |
CSS |
150 | 40 | 40 | 7 | 250 | 13 | W1 | 590 |
|
CRS |
CSS |
200 | 50 | 50 | 7 | 350 | 13 | W1 | 760 |
|
CRS |
CSS |
250 | 50 | 50 | 9 | 350 | 13 | W1 | 910 |
|
CRS |
CSS |
300 | 100 | 50 | 10 | 400 | 13 | W2 | 950 |
|
CRS |
CSS |
400 | 100 | 50 | 12 | 400 | 13 | W2 | 1020 |
|
CRS |
CSS |
500 | 100 | 50 | 16 | 400 | 13 | W2 | 1300 |
|
CRS |
CSS |
600 | 100 | 60 | 16 | 400 | 13 | W2 | 1500 |
|
CRS |
CSS |
800 | 80 | 80 | 16 | 400 | 13 | W4 | 1700 |
|
CRS |
CSS |
1000 | 100 | 100 | 17 | 450 | 13 | W5 | 1900 |
|
CRS |
CSS |
1200 | 120 | 120 | 17 | 450 | 13 | W7 | 2150 |
|
CRS |
CSS |
1500 | According to customers’ requirements | ||||||
|
CRS |
CSS |
2000 | |||||||
