Application: |
Power, For Electrical Connection |
Material: |
C11000 Copper |
Drawing: |
Acceptable |
Lamination: |
According To Customer's Requirements |
Type: |
Copper Expansion Joint |
Plating: |
Bare Or Tinned |
Application: |
Power, For Electrical Connection |
Material: |
C11000 Copper |
Drawing: |
Acceptable |
Lamination: |
According To Customer's Requirements |
Type: |
Copper Expansion Joint |
Plating: |
Bare Or Tinned |

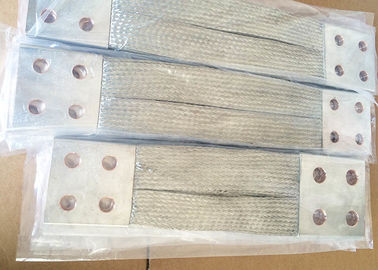

Customized all series copper braided wire connector type for electric power
1. Material: C1100 copper braided wire
2. Single wire diameter: 0.05mm, 0.07mm, 0.10mm, 0.12mm, 0.127mm, 0.15mm, 0.2mm, 0.25mm, 0.254mm, 0.3mm
3. Cross section: 100-4000 SQMM
4. Purpose: high current conductive connection
5. RoHS compliant
6. Customization available for special dimension, shapes and structure.
7. Insulating materials: PVC heat-shrinkable tube

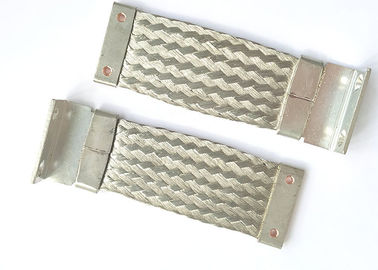

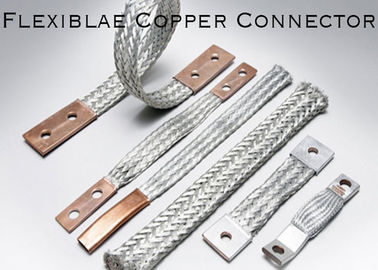

Braided copper, stranded copper soft connectors
Adopt bare copper wire or tinned braided copper wire (twisted wire), which is formed by cold pressing. The contact surface can be tinned or silver plated according to customers’ requirements.
Single wire diameter
0.20mm: Standard products.
0. 10mm: Can be processed according to customers’ requirements.
Technical Parameters
■ See the table below.
■ Width, length, cross-sectional area and drilling are not included in the table below and can be processed according to customer requirements.
■ The allowable current capacity is for reference. This value is related to the installation and use conditions of the soft connectors.
| Bare copper Wire | Tinned copper wire |
Section |
A |
B |
S |
L |
Holes Diameter |
End drilling |
Current capacity |
|
CRS |
CSS |
100 | 40 | 40 | 5 | 200 | 13 | W1 | 480 |
|
CRS |
CSS |
150 | 40 | 40 | 7 | 250 | 13 | W1 | 590 |
|
CRS |
CSS |
200 | 50 | 50 | 7 | 350 | 13 | W1 | 760 |
|
CRS |
CSS |
250 | 50 | 50 | 9 | 350 | 13 | W1 | 910 |
|
CRS |
CSS |
300 | 100 | 50 | 10 | 400 | 13 | W2 | 950 |
|
CRS |
CSS |
400 | 100 | 50 | 12 | 400 | 13 | W2 | 1020 |
|
CRS |
CSS |
500 | 100 | 50 | 16 | 400 | 13 | W2 | 1300 |
|
CRS |
CSS |
600 | 100 | 60 | 16 | 400 | 13 | W2 | 1500 |
|
CRS |
CSS |
800 | 80 | 80 | 16 | 400 | 13 | W4 | 1700 |
|
CRS |
CSS |
1000 | 100 | 100 | 17 | 450 | 13 | W5 | 1900 |
|
CRS |
CSS |
1200 | 120 | 120 | 17 | 450 | 13 | W7 | 2150 |
|
CRS |
CSS |
1500 | According to customers’ requirements | ||||||
|
CRS |
CSS |
2000 | |||||||
Standard drilling:
