Non-Pressure Type Automatic Welding Machine Solar Water Heater Related Machine

Non-Pressure Type Automatic Welding Machine Solar Water Heater Related Machine

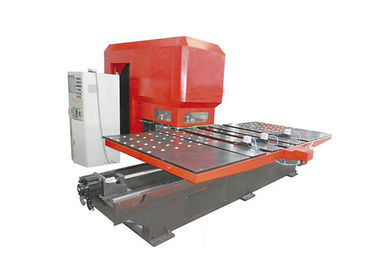

1. CNC Turret Punch

Performance characteristics:

1) Standard automatic CNC punching machine;

2) Equipped with the company's newly upgraded dedicated system, which can realize on-site programming and background programming;

3) Equipped with RS232 standard interface, network card, which can be easily connected and communicated with other computers, local area networks and the World Wide Web;

4) Industrial grade brand computer control, anti-vibration, anti-interference, simple operation and friendly interface;

5) 80G hard disk can realize super limited storage files;

6) Pulse encoder semi-closed loop feedback;

7) Taiwan brand servo drive and motor;

8) Taiwan imported precision large lead ball screw, which better guarantees high processing precision and work efficiency;

9) Taiwan imported precision linear guides to ensure higher precision and longer life;

10) Brand coupling to ensure durability and high correction factor;

11) AutoCAD graphics automatic conversion;

12) The CAD library is provided with a mold library selection, and the pattern can be previewed in the CAD file;

Working Sketch:

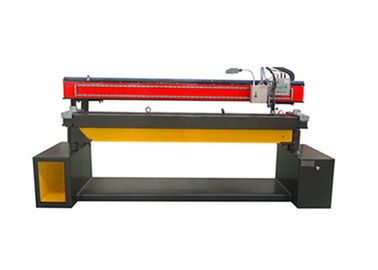

2. L2000mm Computer Longitudinal Seam Automatic Welding Equipment (gantry type)

Working conditions:

1) Cylinder diameter: 100-500mm

2) Workpiece thickness: 0.4-1mm

3) Maximum barrel length: L=2000mm

4) Material: stainless steel, cold (hot) tie board

Equipment configuration:

1) L2000mm longitudinal seam welding machine 1 (including: cooling copper strip welding trolley electrical control system).

2) One Panasonic 400 welding machine.

3) One automatic welding torch.

4) With back gas protection system and water circulation cooling system.

5) The transmission part is the top-grade Taiwan silver linear guide.

6) Electrical programming is fully imported.

7) The electrical part of the warranty period is one year.

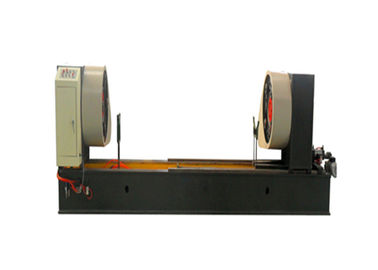

3. L2000mm Automatic Double Head Four Wheel Biting Machine

Technical parameters, requirements:

1) Rated voltage: 380VAC 50HZ

2) Rated power: 11KVA

3) Compressed air pressure: 0.6mMpa

4) Equipped with power:

    Motor: Y132M2-6

    Electromagnetic clutch brake: DL25-160

    Propulsion cylinder: SC100×150-TG

    Brake cylinder: SC80×25

5) The transmission part is the top-grade Taiwan silver linear guide.

6) Electrical programming is fully imported.

7) The electrical part of the warranty period is one year.

Working Sketch:

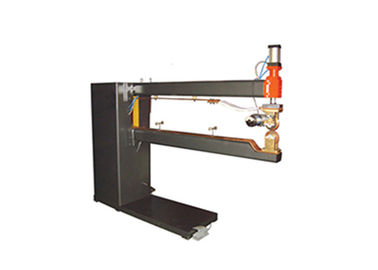

4. Fully Automatic Air Pressure Pulse Straight Seam

The equipment introduction:

The equipment can weld lap welding of stainless steel and carbon steel, and has stepless adjustment of parameters such as pulse frequency, current magnitude, welding speed and pressurization time. This device has time control and "automatic stop welding" function.

Technical parameters:
