Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: Depend on the equipments
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box or pre-packaging
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Type: |
Solar Water Heater Manufacturing Equipment |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Color: |
Customized |
Condition: |
New |
Characteristic: |
Complete Production Line |
Name: |
Solar Water Heater Manufacturing Equipment |
Type: |
Solar Water Heater Manufacturing Equipment |
After-sales Service: |
Engineers Available To Service Machinery Overseas |
Place Of Origin: |
Jiangsu China |
Warranty: |
1 Year |
Color: |
Customized |
Condition: |
New |
Characteristic: |
Complete Production Line |
Name: |
Solar Water Heater Manufacturing Equipment |
Solar Water Heater Related Automatic Welding Machine for Complete Production Line

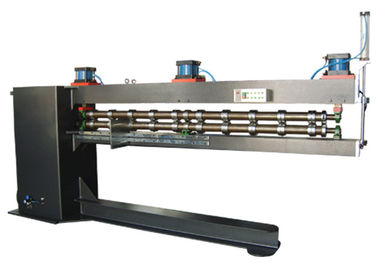

1. L2000mm Automatic Air Pressure Type Ribbing Machine
Working conditions:
1) Cylinder diameter: diameter 100-500mm
2) Workpiece thickness: 0.4-1mm
3) Maximum barrel length: L=2000mm
4) Material: stainless steel, galvanized sheet, cold (hot) board
Technical parameters, requirements:
|
Rated voltage: |
380VAC 50HZ |
|
Rated power: |
1.5KVA |
|
The height / width of the rolling bar: |
According to customer requirements, if there is no special requirements, can be made according to the requirements of conventional solar reinforced ribs. |
|
Compressed air pressure: |
0.45 mMpa |
|
The electrical part of the warranty period: |
One year. |
|
This device has an auto stop function ( time positioning). |
|

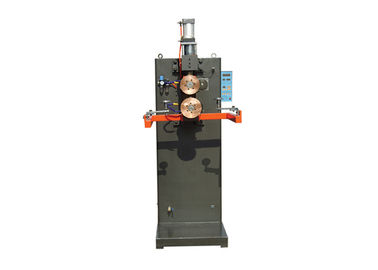

2. Air Pressure Pulse Seam Welding Equipment
Product description:
The equipment can weld seams of stainless steel and carbon steel, and has stepless adjustment of parameters such as welding time, current magnitude, welding speed and pressurization time. This device has time control and “automatic stop welding” function.
Features:
The air pressure type pulse seam welding equipment is a basic method of resistance contact welding, and a plurality of solder joints which are partially overlapped before and after form a continuous welding. The two weldments are pressed between the two electrode welding wheels in a lap joint manner, and the welding current can be a continuous welding continuously connected or a intermittent welding performed by intermittent pulses.
3. Hydraulic Bending Machine
The main body of the equipment:
All steel welded structure, vibration to eliminate stress, high mechanical strength, good rigidity; hydraulic transmission, stable and reliable; mechanical stop, torsion axis synchronization, high precision; rear material distance, upper slider street Electric adjustment, manual fine adjustment device.
Technical parameter:
1) Specifications: WC67Y-63/2000
2) Nominal force: 400KN
3) The length of the workbench: 2200mm
4) Distance between columns: 2800mm
5) Throat depth: 250mm
6) Slider stroke: 100mm
7) The maximum opening height: 340mm
8) Slider stroke adjustment: 100mm
9) The main motor power: 4KW
10) Dimensions: 3180 × 1470 × 2100mm
Working Sketch:

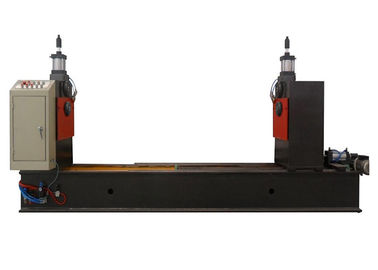

4. L2000mm Automatic Pneumatic Outer Barrel Reinforcer Shrinkage Machine at Both Ends
Working conditions:
1) Barrel diameter: diameter 100-500mm
2) Workpiece thickness: 0.4-1mm
3) Maximum barrel length: L=2000mm
4) The radius of the rib groove is ≤1.5mm (special specifications are customized)
5) Materials: pearl plate, aluminum-zinc-plated, stainless steel, fluorotitanium plate, etc.
Product description:
This equipment is a new type of rib shrinkage device designed for processing taper shrinkage. It adopts gear occlusion, advanced technology, beautiful appearance, uniform shrinkage planning, taper, high strength and fast speed. It can be processed on one machine. The diameter of the outer barrel, processing stainless steel plate, galvanized sheet, color plate and other materials, no need to replace the mold, greatly reducing the production cost.
Working Sketch:
